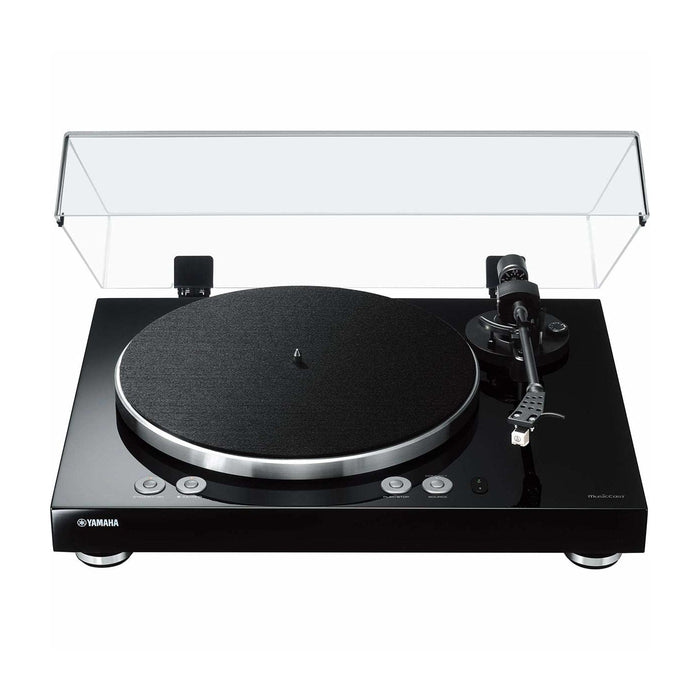

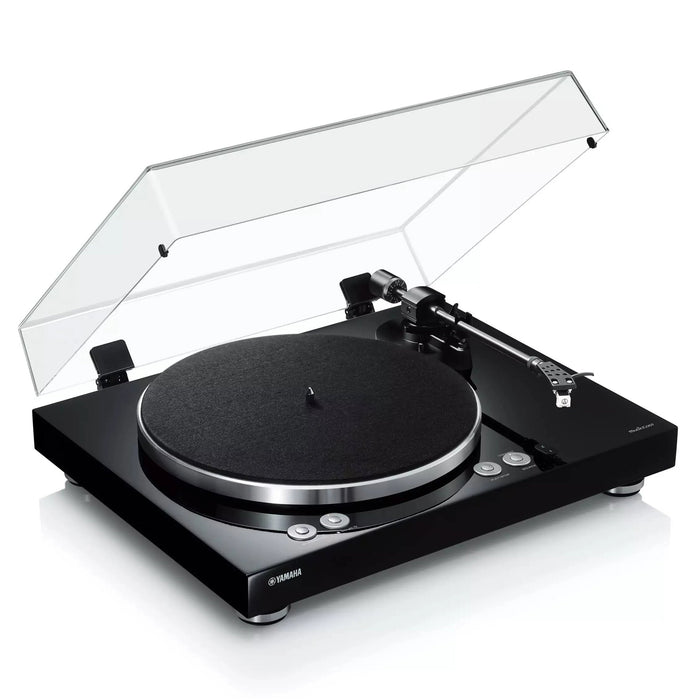

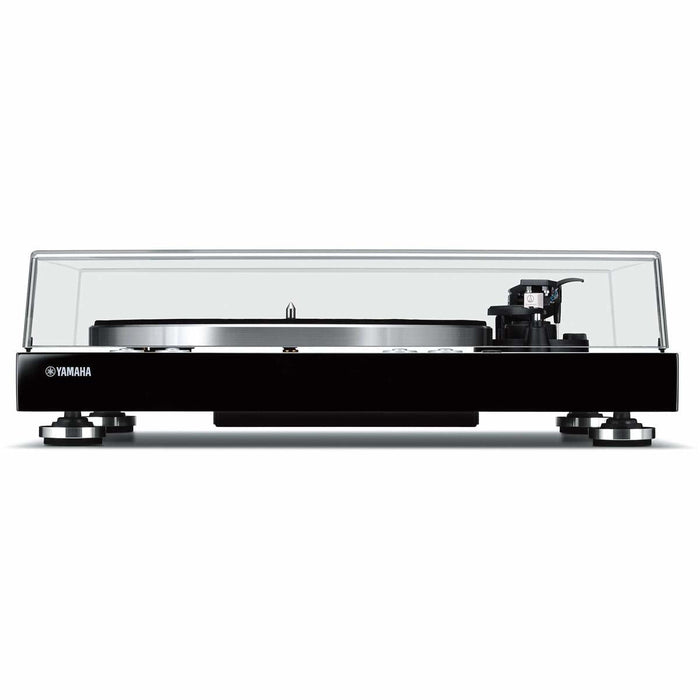

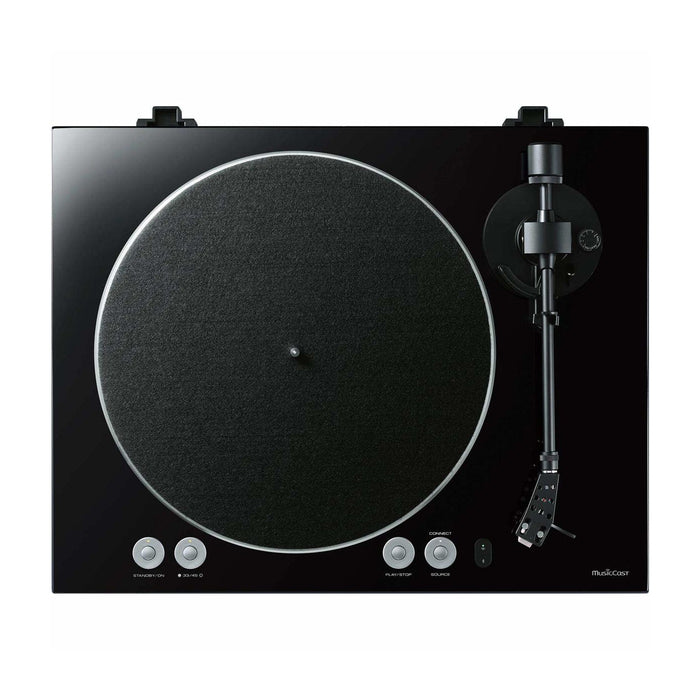

Yamaha TT-N503 MusicCast Vinyl 500 Streaming Turntable with Bluetooth, Wi-Fi - Piano Black

Yamaha TT-N503 MusicCast Vinyl 500 Streaming Turntable with Bluetooth, Wi-Fi - Piano Black
Availability:
Low stock
SKU YAM-TT-N503-BL

Yamaha TT-N503 MusicCast Vinyl 500 Streaming Turntable with Bluetooth, Wi-Fi - Piano Black

The Yamaha MusicCast VINYL 500 is a cutting-edge Wi-Fi turntable that seamlessly blends classic vinyl playback with modern streaming capabilities. Designed for both audiophiles and beginner vinyl collectors, this turntable features a straight tonearm for an open sound and a belt-drive motor to minimize vibrations, ensuring the most faithful reproduction of your favorite records. With built-in Wi-Fi, Bluetooth, AirPlay 2, and Spotify Connect, you can stream music from various services directly to the turntable. The built-in phono preamp allows for flexible connectivity to any audio system, making it easy to integrate into your existing setup. Additionally, voice control compatibility with Alexa, Google Assistant, and Siri via AirPlay 2 offers hands-free operation, while the sleek piano black finish adds a touch of elegance to any room.

  • Stream music services with Wi-Fi®, Bluetooth®, AirPlay 2 or Spotify Connect.
  • Yamaha Hi-Fi quality built for accuracy and sonic purity. Perfect for the audiophile or beginner vinyl collector.
  • Built-in phono preamp gives you flexibility to connect any audio system, adding streaming service playback to your legacy Hi-Fi system.
  • Voice control with Alexa and Google Assistant devices or Siri via Airplay 2
  • Rotation speed: 33-1/3 rpm, 45 rpm

Connectivity: Ethernet, Wi-Fi (2.4/5 GHz), AirPlay, Bluetooth (Ver. 4.2 / A2DP, AVRCP)
Digital Formats: MP3, WMA, MPEG-4 AAC (up to 48 kHz / 16-bit), ALAC (up to 96 kHz / 24-bit), FLAC, WAV, AIFF (up to 192 kHz / 24-bit), DSD (up to 11.2 MHz)
Turntable:
Drive Method: Belt drive
Motor: DC motor
Rotation Speed: 33-1/3 rpm, 45 rpm
Rotation Speed Variation: ±2%
Wow and Flutter: 0.2%
Platter: Aluminum die-cast (Diameter 30 cm)
Tonearm:
Type: Static balance straight tonearm
Effective Arm Length: 223.5 mm
Overhang: 19 mm
Stylus Pressure Adjustment Range: 0-4 g
Acceptable Cartridge Weight: 15.5-19 g (including headshell)
Cartridge:
Type: MM type
Output Voltage: 2.5 mV (1 kHz, 3.54 cm/sec)
Stylus Pressure: 3.5 ± 0.5 g
Weight: 5.0 ± 0.3 g
Height: 17.0 ± 0.7 mm
Audio Specifications:

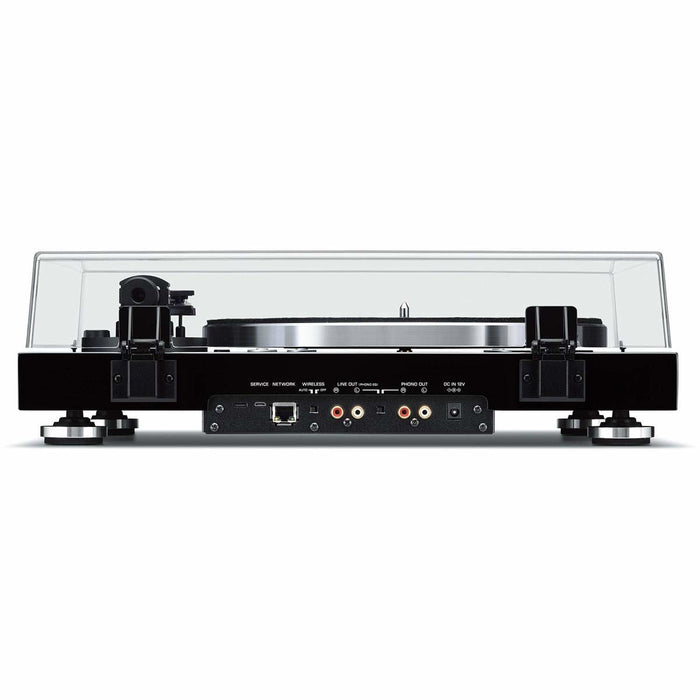

Output Terminal: RCA (PHONO, LINE)
Output Level: 2.0 ± 0.3 V (1 kHz, 0 dB, Fs 44.1 kHz)
Signal to Noise Ratio: 110 dB or higher (IHF-A network)
Dynamic Range: 100 dB or higher (1 kHz, -60 dB, Fs 44.1 kHz)
Harmonic Distortion: 0.003% or lower (1 kHz, 0 dB, Fs 44.1 kHz)
Frequency Response:
Fs 44.1 kHz: 2 Hz to 20 kHz (+0 / -3 dB)
Fs 48 kHz: 2 Hz to 24 kHz (+0 / -3 dB)
Fs 96 kHz: 2 Hz to 48 kHz (+0 / -3 dB)
Fs 192 kHz: 2 Hz to 96 kHz (+0 / -6 dB)
General:
Power Consumption: 5 W
Eco-Standby: 1.8 W
Standby Power Consumption: 0.1 W
Dimensions (W×H×D): 450 × 136 × 368 mm
Weight: 5.7 kg
