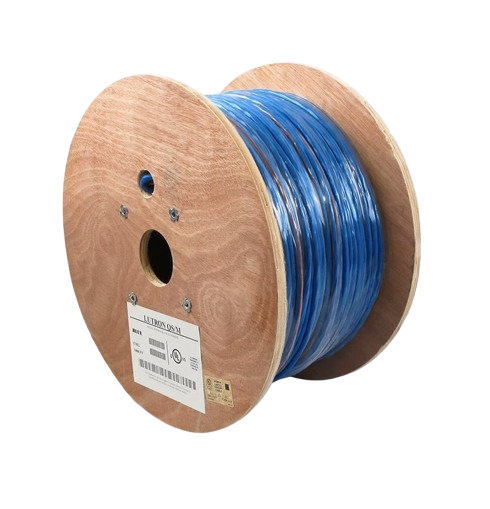

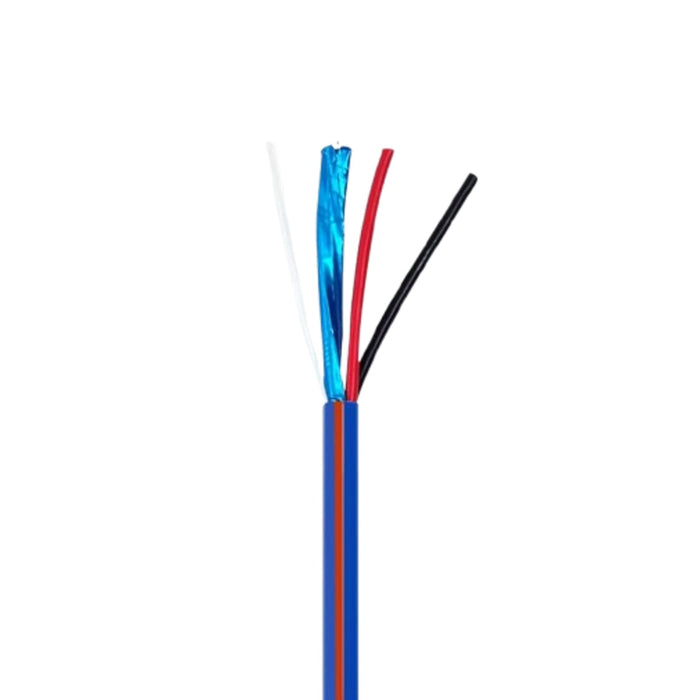

Wavenet LUTRON-QS/M/500 22AWG/2C Shielded + 16AWG/2C Lutron Cable, 500' Reel - Orange Stripe

Wavenet LUTRON-QS/M/500 22AWG/2C Shielded + 16AWG/2C Lutron Cable, 500' Reel - Orange Stripe
Availability:
Low stock
SKU WAV-LUTRON-QS-M-500

Wavenet LUTRON-QS/M/500 22AWG/2C Shielded + 16AWG/2C Lutron Cable, 500' Reel - Orange Stripe

  • High-Grade lighting control system cables
  • Power limited control circuits
  • Commercial, residential, and industrial lighting and home automation applications
  • Light dimmers, touch panels, environmental sensors, smart home light control
  • Suitable for indoor applications

Standards

  • c(ETL) Listed
  • RoHS Compliant

​​​​​​​Specifications

Component A

  • Conductor: Standard Bare Copper

  • Construction (+/- 0.008mm): 22AWG : 7/0.254

  • Stranded Dia. (mm): 0.78

  • Insulation Material: FOAM PE

  • Nom. Thickness (mm): 0.51

  • Insulation Diameter (+/- mm): 1.8

  • Drain Wire (Stranded Tinned Copper): 7/0.20TC

  • Shield: Aluminum/Polyester

  • Coverage (%): $\ge$ 125%

Component B (2C):

  • Conductor: Stranded Bare Copper

  • Construction (+/- 0.008mm): 16AWG : 26/0.254

Component A.B Cable Together:

  • Jacket Material: PVC

  • Nominal Thickness (mm): 0.65

  • Outer Dia. (+/- 0.10mm): 5.80

  • Ripcord: 210Dx6 nylon thread

  •

  • Stranded Dia. (mm): 1.50

  • Insulation Material: PVC

  • Nom. Thickness (mm): 0.33

  • Insulation Diameter (+/- 0.05mm): 2.15
