Wavenet AC1402OSPBK4-500 14AWG, 2 Conductors (105) Riser Audio Cable Reelex II 500 Feet - Black

Wavenet AC1402OSPBK4-500 14AWG, 2 Conductors (105) Riser Audio Cable Reelex II 500 Feet - Black
Availability:
Low stock
SKU WAV-AC1402OSPBK4-500

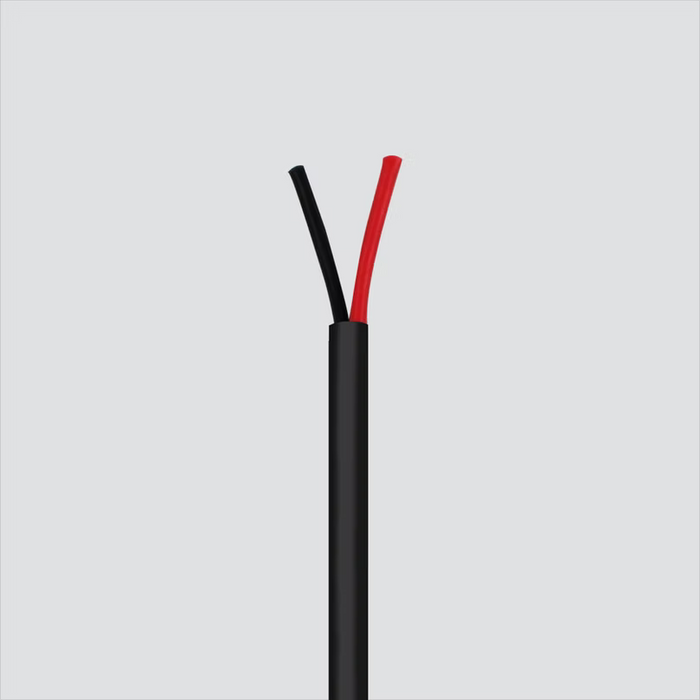

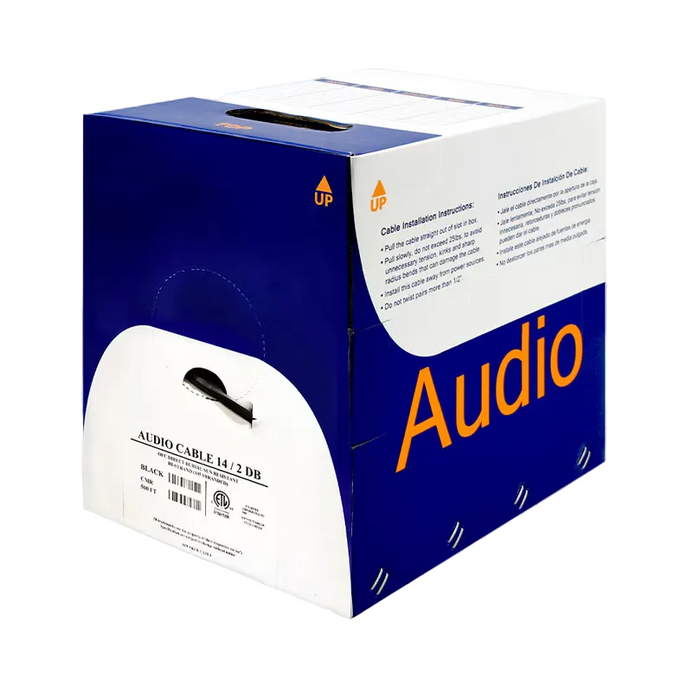

Wavenet AC1402OSPBK4-500 14AWG, 2 Conductors (105) Riser Audio Cable Reelex II 500 Feet -  Black

  • Ideal for high-end commercial or residential in-wall rated audio (speaker) installations
  • 14 AWG with 2 insulated conductors made with Stranded Oxygen Free Copper
  • Sequential footage marking
  • Direct Burial Outdoor
  • c(ETL) Listed CMR/CMP
  • TIA-568-C.2
  • RoHS Compliant

Docs/Instruction Links

Specifications

  • Number of Conductor - 2
  • AWG - 14
  • Stranding - 105
  • Diameter  - 0.0063 (inches)
  • Insulation Material - PVC
  • Diameter - 0.1023 (inches)
  • Nominal Wall -  0.0102 (inches)
  • Jacket Material - FR-PVC
  • Overall Diameter -  0.2559 (inches)
  • Nominal Thickness - 0.0196 (inches)
  • Paper Tape -  YES
  • Rip Cord - YES
  • Conductor Resistance - 10 (ohms/1000m)
  • Voltage - 300 (volts)
  • Nominal Weight - 27 (pounds)
