Wavenet AC1404RWH3-500 14AWG 4C 105 Strand CL3R White - 500' Reelex II

Availability:
Low stock
SKU WAV-AC1404RWH3-500

Wavenet AC1404RWH3-500 14AWG 4C 105 Strand CL3R White - 500' Reelex II

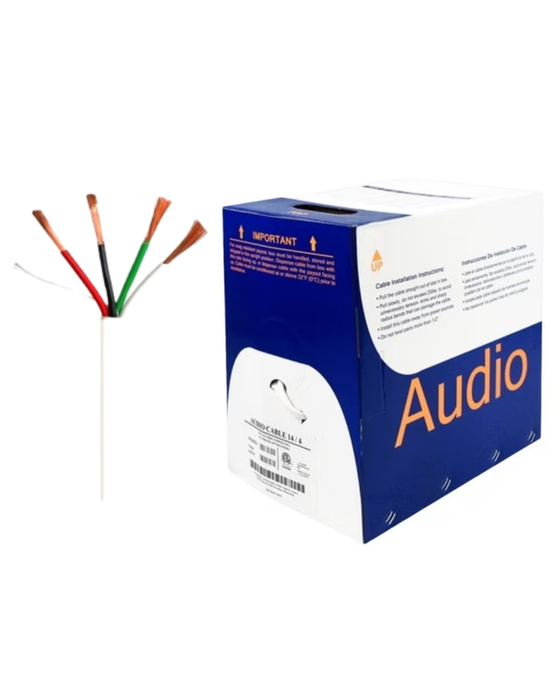

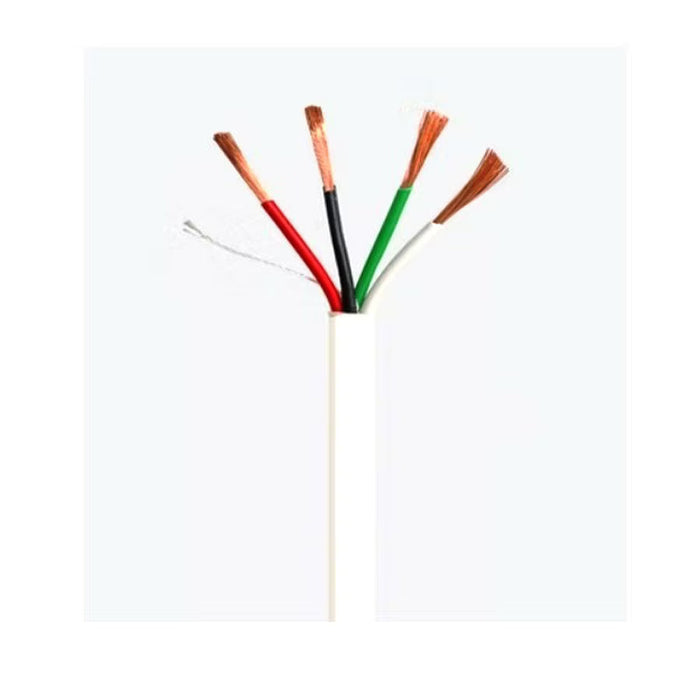

The Wavenet AC1404RWH3-500 is a 500-foot spool of 14-gauge, 4-conductor (14/4) white speaker wire designed for professional audio, communication, and signal control systems. It features stranded bare copper conductors, CMR (Riser) rating for in-wall use, and comes in a Reelex II pull box for easy installation.

Features:

  • Ideal for high-end commercial or residential in-wall rated audio (speaker) installations
  • 14 AWG with 4 insulated conductors made with Stranded Oxygen Free Copper
  • Sequential footage marking

Standards:

  • c(ETL) Listed CMR/CMP
  • TIA-568-C.2
  • RoHS Compliant

Specifications

  • Gauge/Conductors   - 14 AWG, 4 Conductors
  • Material  -  Oxygen-Free Bare Copper (OFC)
  • Length -   500 feet
  • Color  -  White
  • Rating  -  CMR/CL3R (Riser Rated for in-wall installation)

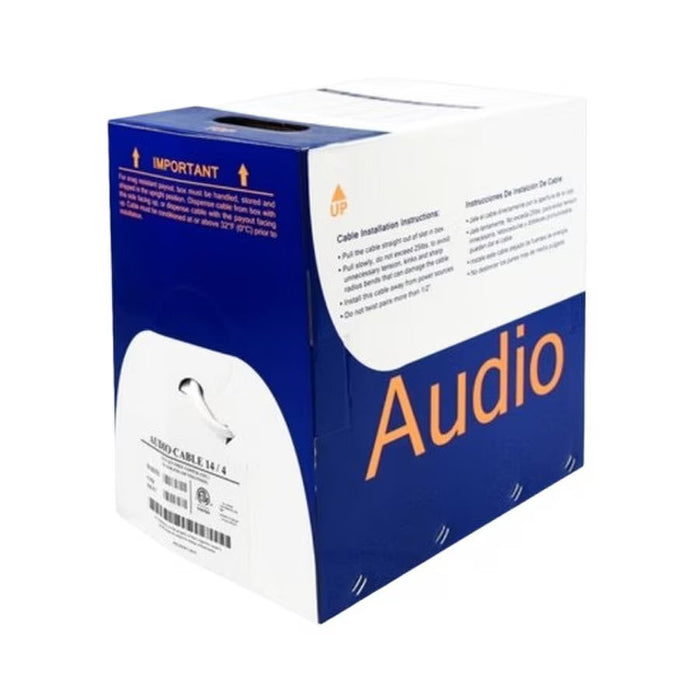

  • Packaging  -  Reelex II pull box
  • Conductor  -  Oxygen Free B.C.
  • Number of Conductor -   4
  • AWG -   14
  • Stranding   - 105
  • Diameter  -  0.0063 (inches)
  • Insulation Material   - PVC
  • Diameter  -  0.1023 (inches)
  • Average Thickness  -  0.014 (inches)
  • Min. Point Thickness -   0.013 (inches)
  • Assembly Diameter   - 0.248 (inches)
  • Jacket Material  -  PVC
  • Outer Diameter -   0.3149 (inches)
  • Average Thickness  -  0.0315 (inches)
  • Min. Point Thickness  -  0.0283 (inches)
  • Rip Cord  -  Nylon
  • Conductor Resistance -   9.2 (ohms)
  • Nominal Weight   - 42 (pounds)
