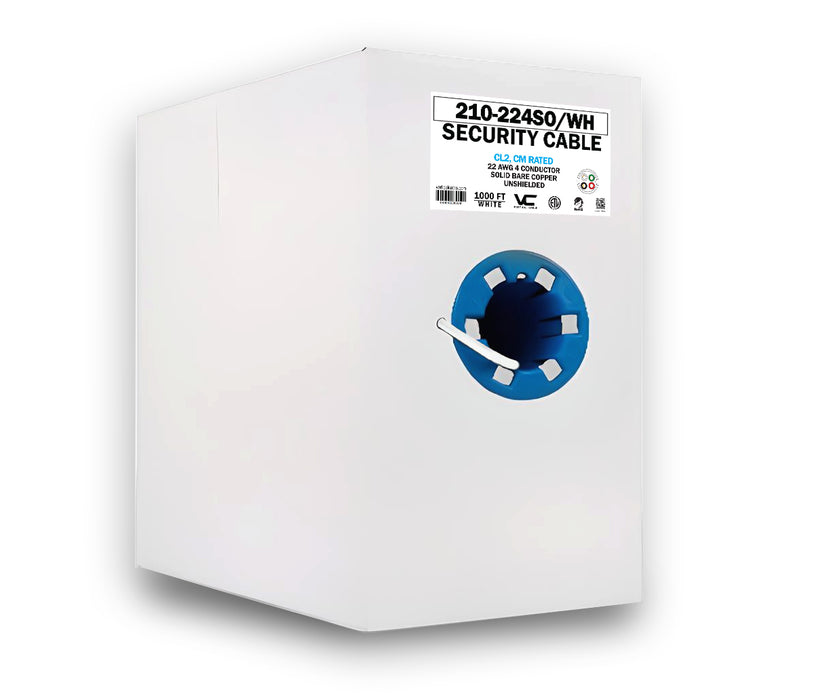

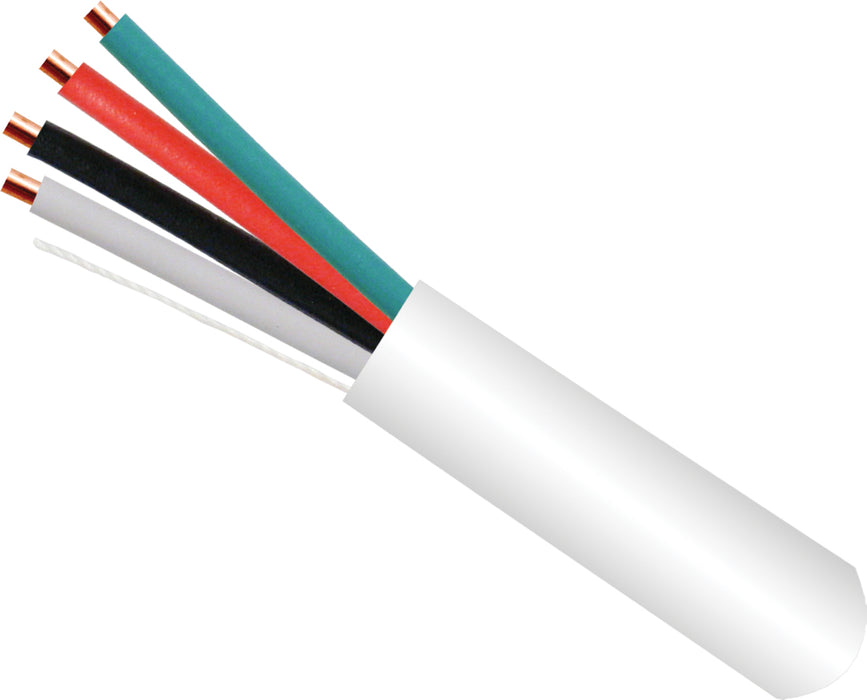

Vertical Cable 210-224SO/WH 1000ft 22 AWG 4 Conductor Unshielded Solid Copper Security Cable Pullbox - White

Vertical Cable 210-224SO/WH 1000ft 22 AWG 4 Conductor Unshielded Solid Copper Security Cable Pullbox - White
Availability:
in stock, ready to be shipped
SKU VER-210-224SO-WH

Vertical Cable 210-224SO/WH 1000ft 22 AWG 4 Conductor Unshielded Solid Copper Security Cable Pullbox - White

Alarm-Security Cable, Solid, Unshielded, 22AWG, 4 Conductor, 1000FT, Pull Box, White

  •  Ideal for Indoor Remote Control of Security, Intercom, and Sound Systems
  •  Can also be used for Powering Limited-Control Circuits or Burglar Alarms
  •  PVC Outer Jacket
  •  Available in Pull Box
  •  Door Controllers
  •  Prox Sensors
  •  Key Pads
  •  Sound Systems
  •  Access Control
  •  Smoke Detectors

Specifications:

Cable Type:

  • 22 AWG, 4‑conductor
  • Solid bare copper
  • Unshielded
  • Non‑plenum, CM/CL2 rated

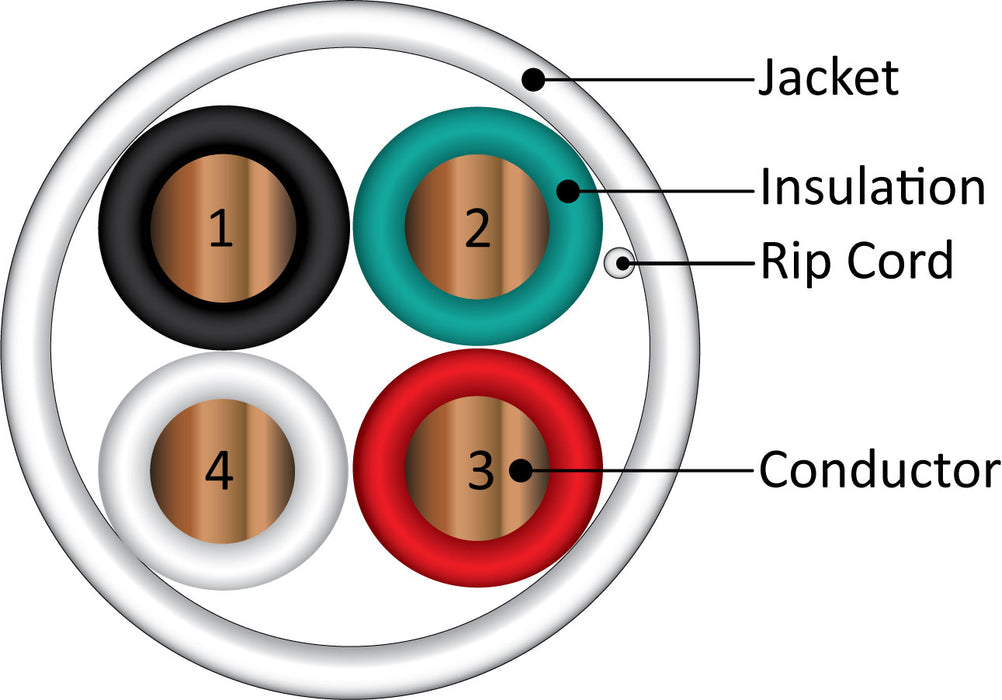

Construction:

  • Conductor size: 0.61 mm (0.02 in.) diameter
  • Insulation: PVC, 0.96 mm (0.04 in.) outer diameter
  • Insulation colors: Black, Red, White, Green
  • Jacket: PVC
  • Jacket thickness: 0.45 mm (0.02 in.)
  • Overall cable diameter: 3.20 mm (0.12 in.)
  • Ripcord included

Electrical & Safety Ratings:

  • Voltage rating: 300V RMS
  • Temperature rating: 75°C
  • NEC rating: CM/CL2
