Vertical Cable 209-2320/BK 14 AWG 2 Conductors Indoor OFC Stranded Audio Cable Black 500 ft

Availability:
Low stock
SKU VER-209-2320/BK

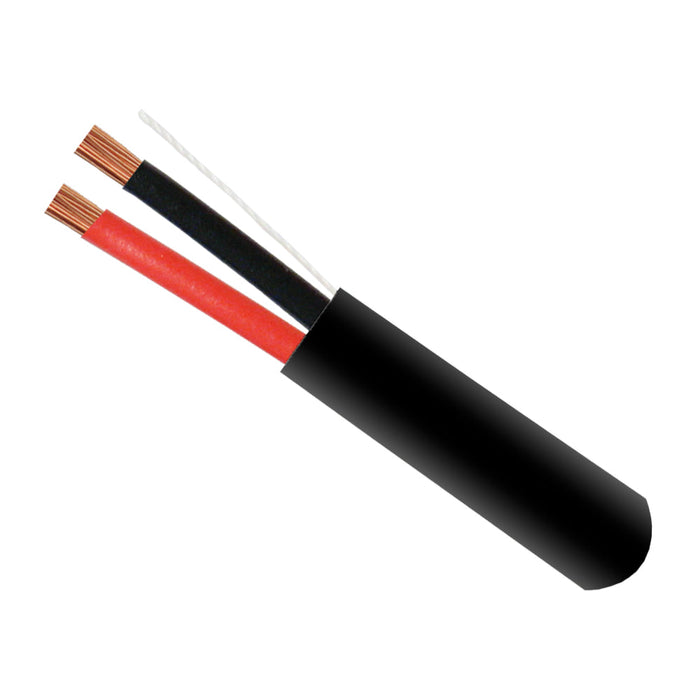

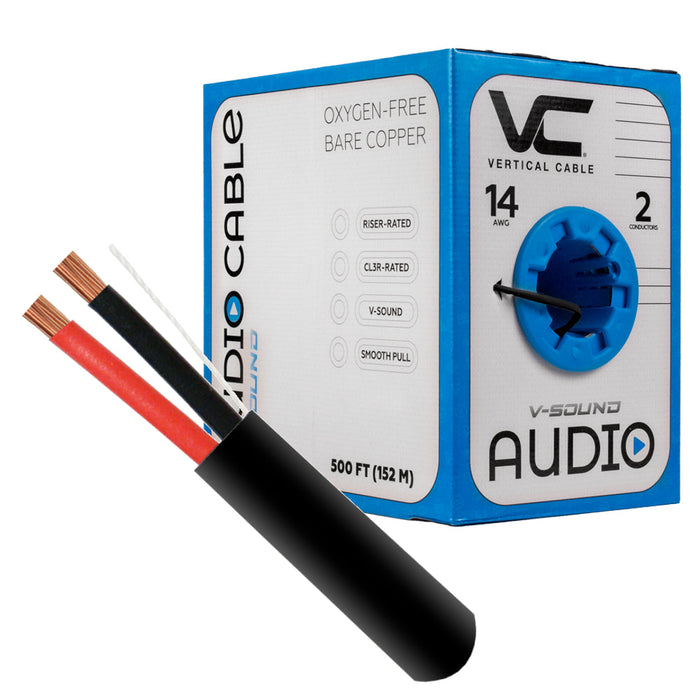

Vertical Cable 209-2320/BK 14 AWG 2 Conductors Indoor Audio Cable, Oxygen-Free Stranded Bare Copper, Black, 500 ft

The Vertical Cable 209-2320/BK is a 14 AWG 2-conductor high-strand audio cable engineered for indoor sound, audio, and intercom system installations. Constructed with oxygen-free stranded bare copper conductors and durable PVC insulation, this unshielded cable provides dependable signal transmission for commercial and residential audio applications. Its round design includes a rip cord for easier handling and installation, while the overall PVC jacket offers long-lasting protection. Rated CMR/CL3 and 300V RMS, the cable is suitable for in-wall indoor installations where reliable performance and compliance are required. Supplied in a convenient 500 ft pull box, the 209-2320/BK is an ideal choice for intercom systems, distributed audio setups, and general low-voltage audio wiring projects.

  • 14 AWG 2-conductor high-strand audio cable
  • Oxygen-free stranded bare copper conductors
  • Unshielded design for audio and intercom applications
  • Durable PVC insulation and overall PVC jacket
  • CMR/CL3 rated for indoor in-wall installations
  • Ideal for sound systems, intercom systems, and indoor audio applications
  • Black jacket finish

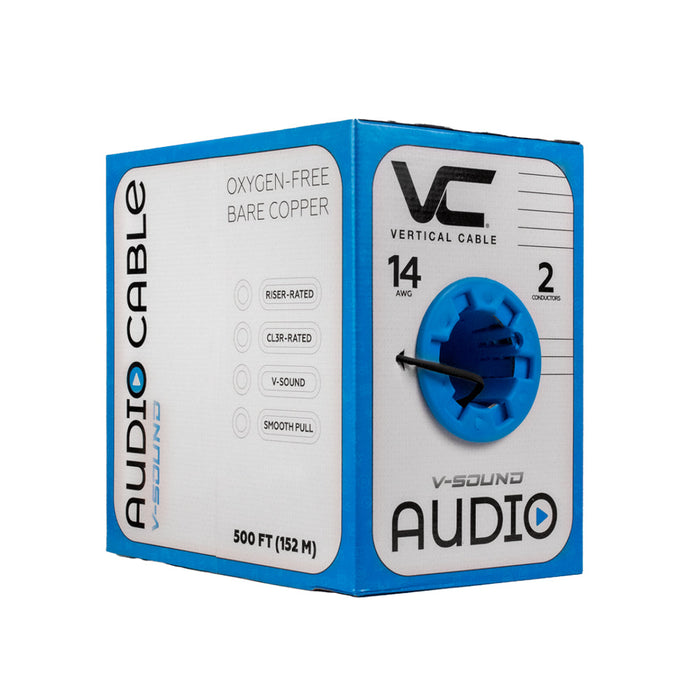

  • 500 ft pull box packaging
  • ETL listed and RoHS compliant

Docs/Instruction Links

Specifications

General

  • Manufacturer: Vertical Cable
  • Product ID: 209-2320/BK
  • Cable Type: Audio Cable
  • Application: Sound & Audio Systems
  • Application: Intercom Systems
  • Application: Indoor Use
  • Packaging: 500 ft Pull Box
  • Jacket Color: Black

Conductors

  • Conductor Count: 2
  • Wire Gauge: 14 AWG
  • Conductor Material: Stranded Bare Copper
  • Stranding: 41/0.25 mm
  • Conductor Colors: Red, Black

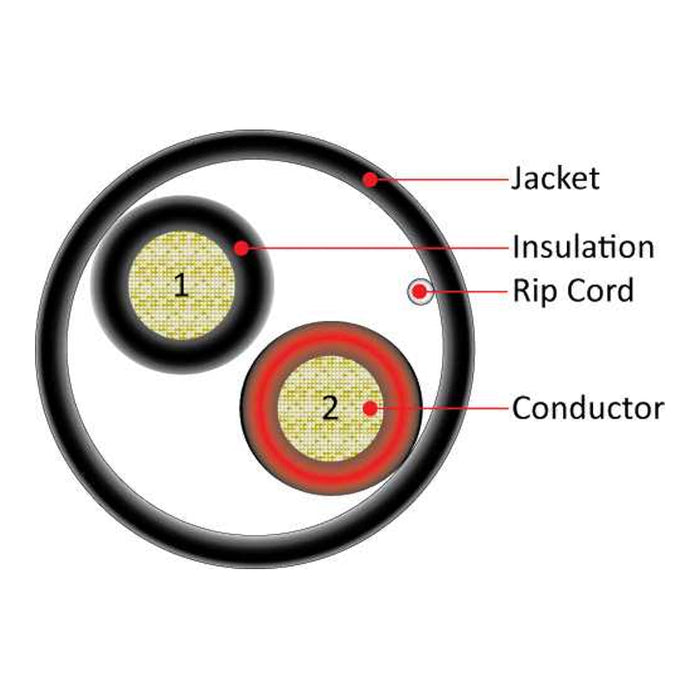

Construction

  • Cable Shape: Round
  • Shielding: Unshielded
  • Rip Cord: Yes
  • Oxygen-Free Copper: Yes

Insulation

  • Insulation Material: PVC (Polyvinyl Chloride)
  • Insulation Diameter: 0.08 in. (2.10 mm)

Jacket

  • Jacket Material: PVC (Polyvinyl Chloride)
  • Jacket Thickness: 0.02 in. (0.60 mm)
  • Overall Cable Diameter: 0.25 in. (6.40 mm)

Electrical

  • Voltage Rating: 300V RMS

Performance

  • Temperature Rating: 75°C
  • Cold Bend Rating: -20°C (No Crack)

Compliance & Certifications

  • NEC Rating: CMR/CL3
  • ETL Listed: c(ETL)us
  • RoHS Compliant: Yes
  • FT4 Rated: Yes

Physical

  • Packed Weight: 22 lb (10.0 kg)
