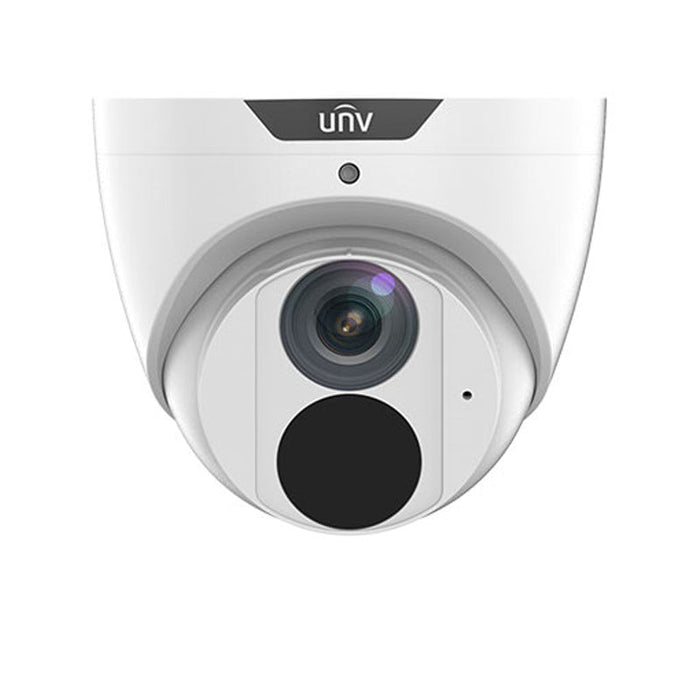

Uniview IPC3618SB-ADF28KM-I0 8MP 2.8mm Fixed Lens Turret IP Security Camera

Availability:
Low stock
SKU UNI-IPC3618SB-ADF28KM-I0

Uniview IPC3618SB-ADF28KM-I0 2.8mm Fixed Lens Turret IP Security Camera

The IPC3618SB-ADF28KM-I0 captures video up to a resolution of 4K @ 20 FPS, which is 3840x2160 pixels. Every pixel added to your camera's picture gives you a higher image quality and more detail. So at 4K, you're going to get a crisper, cleaner, and more detailed image.

The IPC3618SB-ADF28KM-I0 has a 2.8mm Fixed Lens. That means it’s fixed at one length; it can't optically zoom in and out. The longer the focal length on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But the shorter the focal length, the wider the field of view and the more area your surveillance will cover.

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

Note: Uniview IP cameras will work as plug and play with Uniview NVRs. For other NVR systems, network setup is required

Features:

  • High quality image with 8MP, 1/2.7"CMOS sensor
  • 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection
  • NDAA Compliant


Specifications:

Camera

  • Sensor: 1/2.7", 8.0 megapixel, progressive scan, CMOS
  • Lens: 2.8mm@F2.0 / 4.0mm@F2.0
  • Shutter: Auto/Manual, 1 ~ 1/100000s
  • Minimum Illumination: Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR on
  • Digital Noise Reduction: 2D/3D DNR
  • Day/Night: IR-cut filter with auto switch (ICR)
  • S/N: >56dB
  • IR Range: Up to 30m (98 ft) IR range
  • Wavelength: 850nm
  • IR On/Off Control: Auto/Manual
  • Defog: Digital Defog
  • WDR: 120dB

Video

  • Video Compression: Ultra 265, H.265, H.264, MJPEG
  • H.264 code profile: Baseline profile, Main profile, High profile

Frame Rate

  • Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
  • Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
  • Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
  • Video Bit Rate: 128 Kbps~16 Mbps
  • OSD: Up to 8 OSDs
  • Privacy Mask: Up to 4 areas
  • ROI: Up to 8 areas
  • Motion Detection: Up to 4 areas


  • White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
  • Smart IR: Support
  • Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
  • Dewarping: Supported
  • HLC: Supported
  • BLC: Supported

Audio

  • Audio Compression: G.711
  • Suppression: Supported
  • Sampling Rate: 8KHZ

Storage

  • Edge Storage: Micro SD, up to 256GB
  • Network Storage: ANR

Network

  • Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
  • Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
  • Client:    EZStation / EZView / EZLive
  • Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
  • Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

  • Network: 1 RJ45 10M/100M Base-TX Ethernet
  • Built-in Mic: Supported

Certifications

  • CE: EN 60950-1
  • UL: UL60950-1
  • FCC: FCC Part 15

General

  • Power: DC 12V±25%, PoE (IEEE 802.3af) / Power consumption: Max 5.0W
  • Dimensions: (L × W × H)    Φ110.5 x 94.1mm (Φ4.4” x 3.7”)
  • Net Weight: 0.44kg (0.97lb)
  • Material: Metal
  • Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
  • Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
  • Surge Protection: 2KV
  • Ingress Protection: IP67
  • Reset Button: N/A
