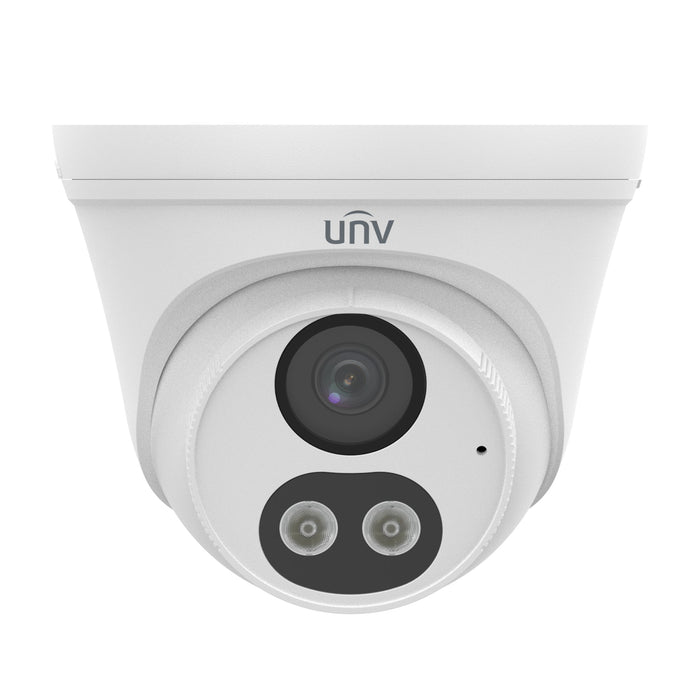

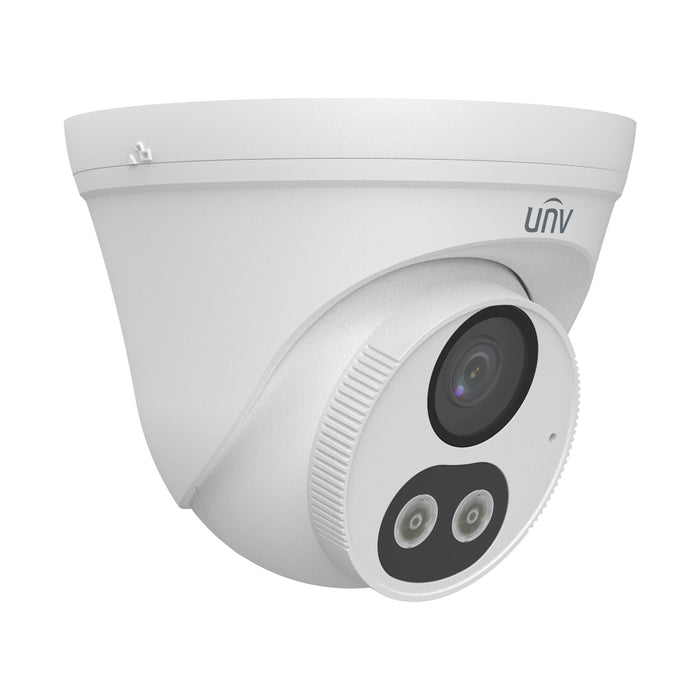

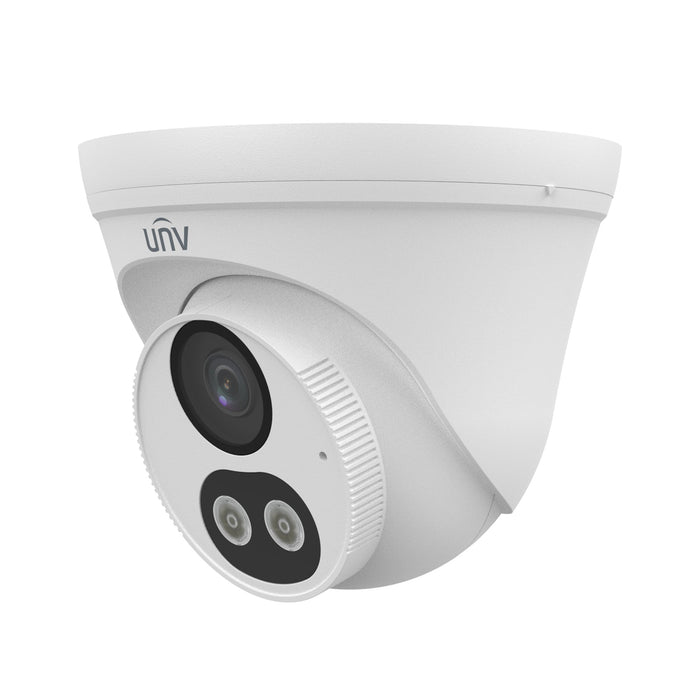

The Uniview IPC3615LB-AF28K-DL is a 5MP HD ColorHunter Fixed Eyeball Network Camera, designed to deliver high-quality images with its 1/3" CMOS sensor. It supports multiple resolutions, including 5MP at 20fps and 4MP at 25fps, ensuring clear and detailed video. This camera features advanced video compression technologies like Ultra H.265 and H.264, which help reduce bandwidth and storage requirements. With Smart IR and warm light capabilities, it provides excellent night vision up to 30 meters. The camera is equipped with a built-in microphone for audio monitoring and supports Power over Ethernet (PoE) for easy installation. Its IP67-rated weatherproof housing makes it suitable for various environments, ensuring reliable performance in harsh conditions.
Camera:
Resolution: 5MP
Sensor: 1/3.0" CMOS
Min. Illumination: Colour: 0.01 lux ( F1.6, AGC ON) 0 lux with IR
Day/Night: IR‑cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment angle: Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
S/N: >52dB
WDR: DWDR
Lens:
Lens type: 2.8mm
Iris Type: Fixed
Iris: F1.6
Field of View (H): 97.0°
Field of View (V): 52.2°
Field of View (D): 107.5°
DORI:
DORI Distance（Lens）: 2.8mm
DORI Distance（Detect）: 63.0m(206.7t)
DORI Distance（Observe）: 25.2m(82.7ft)
DORI Distance（Recognize）: 12.6m(41.3ft)
DORI Distance（Identify）: 6.3m(20.7ft)
Illuminator:
Illumination Distance(IR): 30m
Illumination Distance(Warm Light): 30m
Wavelength: 850nm
IR On/Off Control: Auto/Manual
Video:
Video Compression: Ultra 265; H.265; H.264; MJPEG
H.264 code profile: Baseline profile, Main profile, High profile
Frame Rate: Main Stream: 5MP (2880*1620)@ 20fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fpsSub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate: 128 Kbps~6144 Kbps
U-code: Support
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Video stream: Dual streams
Image:
White Balance: Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital noise reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital Defog
Events:
Basic Detection: Motion detection; Tampering alarm; Audio detection
General Function: Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP authentication
Audio:
Audio Compression: G.711U; G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: N/A
Suppression: Support
Sampling Rate: 8KHZ
Storage:
Edge Storage: Micro SD，up to 128 GB
Network Storage: ANR; NAS(NFS)
Network:
Protocols: IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; SNMP
Compatible Integration: ONVIF (Profile S, Profile G, Profile T); API; SDK
User/Host: Up to 32 users, 2 user levels: administrator and common user
Security: Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF
Client: UNV‑Link; UNV‑Link Pro; EZStation
Web Browser: Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface:
Audio I/O: N/A
Alarm I/O: N/A
Serial Port: N/A
Built-in Mic: Support
Built-in Speaker: N/A
WIFI: N/A
Network: 1 * RJ45 10M/100M Base‑TX Ethernet
Video Output: N/A
Certification:
EMC: CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 50130)FCC (FCC 47 CFR part15 B)
Safety: CE LVD (EN 62368‑1)UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1)
Environment: CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection: IP67 (IEC 60529)
General:
Power: DC 12V±25%, PoE (IEEE 802.3af)Power consumption: Max 2.8W
Power Interface: Ø 5.5mm coaxial power plug
Dimensions: Φ126 x 93.6mm (Φ5.0” x 3.7”)
Weight: 0.29kg (0.64lb)
Material: Metal + Plastic
Working Environment: ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
Storage Environment: ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
Surge protection: 4KV
Reset button: N/A
Web Client Language: 4 LanguagesEnglish, Russian, Spanish, Vietnamese
