Taramps HD 3000 Module Class D 1 Channel 2 Ohms 3000 Watts RMS Amplifier

Taramps HD 3000 Module Class D 1 Channel 2 Ohms 3000 Watts RMS Amplifier
SKU TAR-HD3000-2OHMS

Sorry, this product has been discontinued.

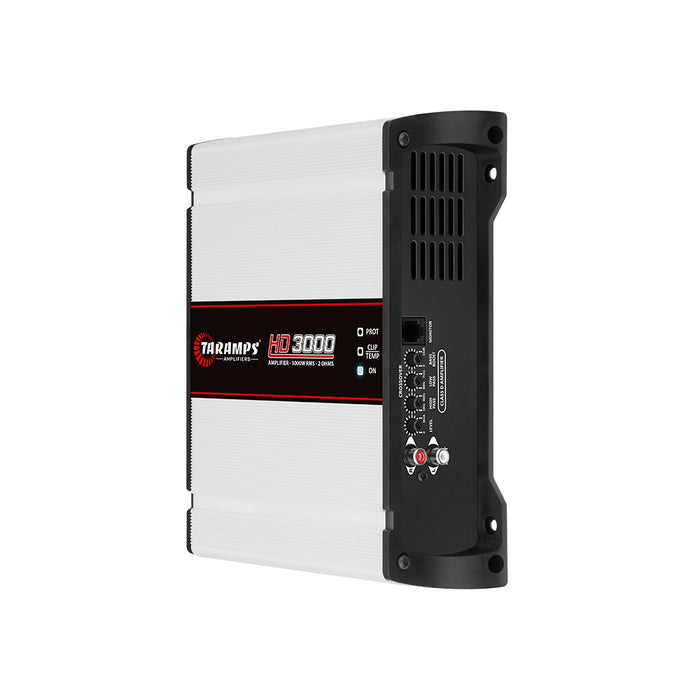

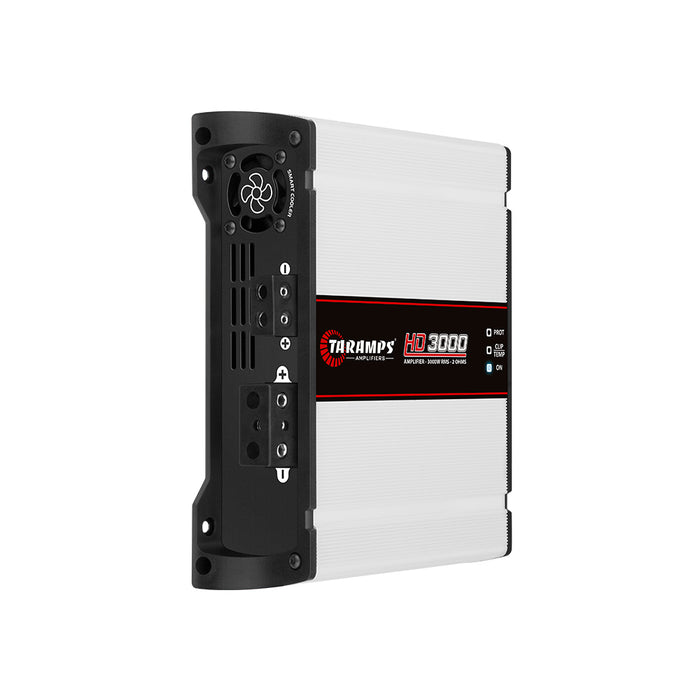

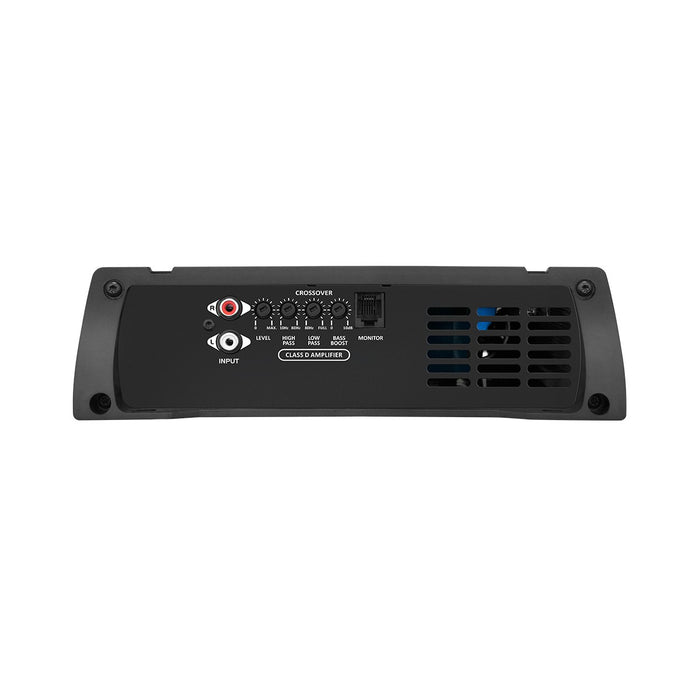

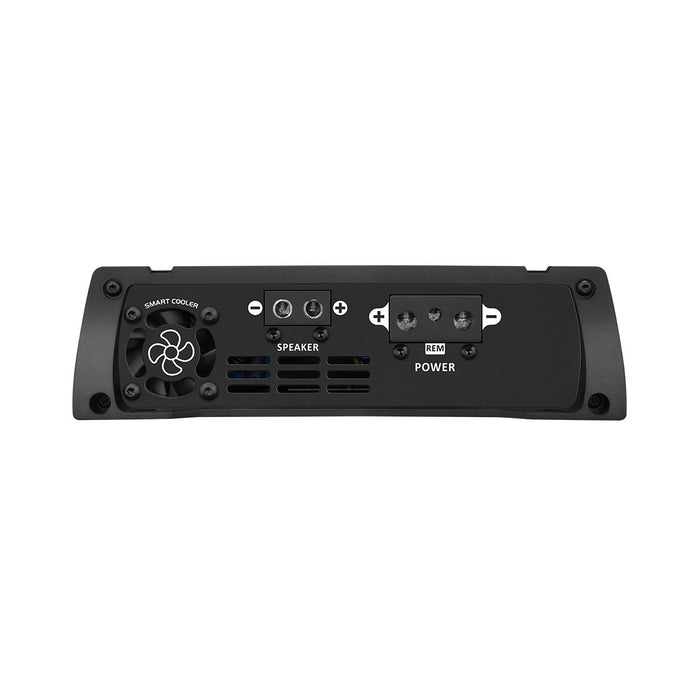

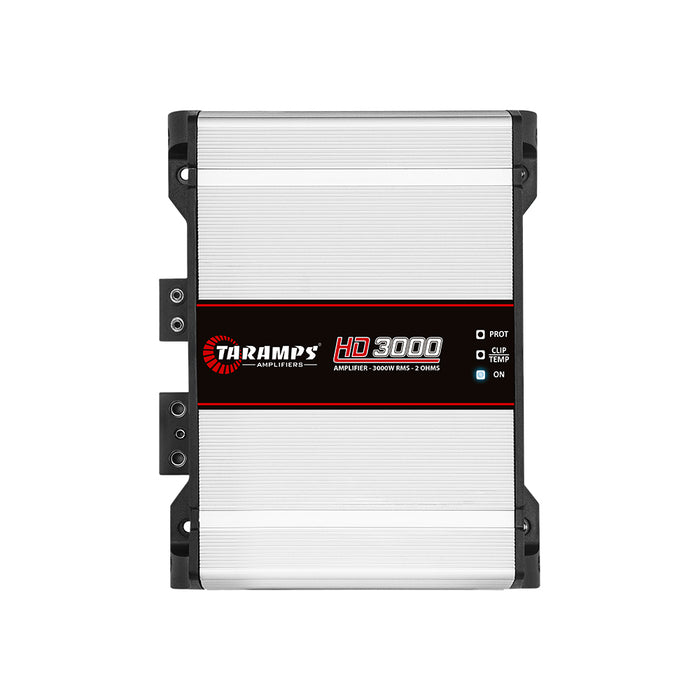

Taramps HD 3000 Module Class D 1 Channel 2 Ohms 3000 Watts RMS Amplifier

With a maximum power of 3000 Watts RMS, the amplifier module of Taramps HD3000 is mono, impedance of 2 ohms and 1 channel. Compatible with all kinds of loudspeakers, drivers, and tweeters in the right measure for you!

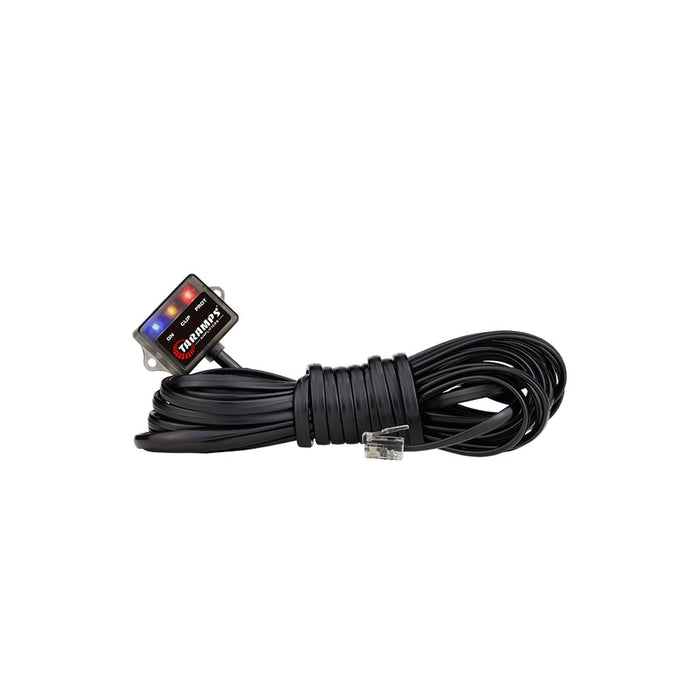

* This product comes with an M1 Led Monitor

Features

  • Operation Class: D
  • Number of Channels: 01
  • Maximum Power: @ 12.6 VDC - 4 OHMS: 3000W RMS
  • Input Sensitivity: 220mV
  • Signal to Noise Ratio: > 89dB
  • Frequency Response: (Full Range): 10Hz to 20KHz
  • Crossover High Pass (HPF): Variable: 10Hz to 80Hz (-12dB / 8th)
  • Crossover Low Pass (LPF): Variable: 80Hz to FULL (-12dB / 8th)
  • Bass Boost: 0 to 10dB (50Hz)
  • Input Impedance: 10K OHMS
  • Short / Short Supply Protection System / High / Low Supply Voltage
  • Maximum Supply Voltage: 16 VDC
  • Consumption at rest: 1.90A
  • Maximum Musical Power: @ 12.6VDC: 149A
  • Maximum Sine Signal Consumption: @ 12.6VDC: 298AD
