Taramps DS 1200X4 Module DS Class D 4 Channels 2 Ohm 300 Watts RMS Amplifier

Taramps DS 1200X4 Module DS Class D 4 Channels 2 Ohm 300 Watts RMS Amplifier
SKU TAR-DS1200X4

Sorry, this product has been discontinued.

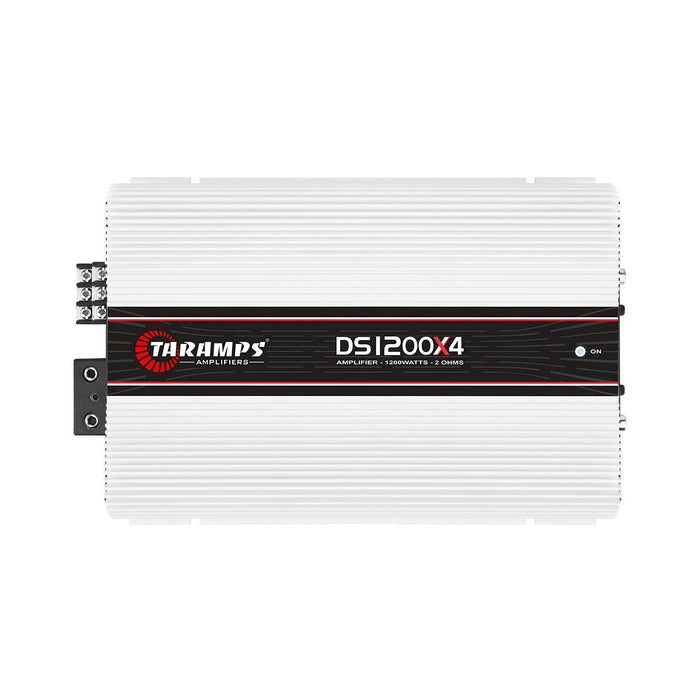

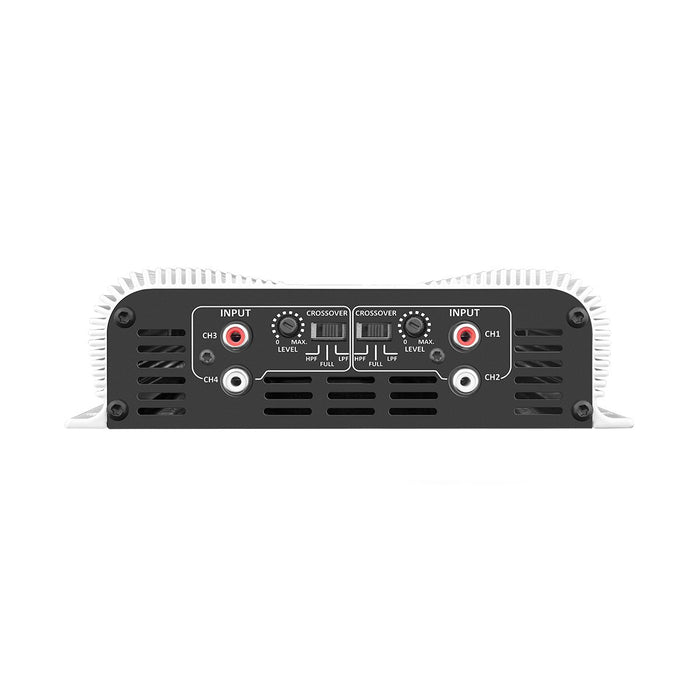

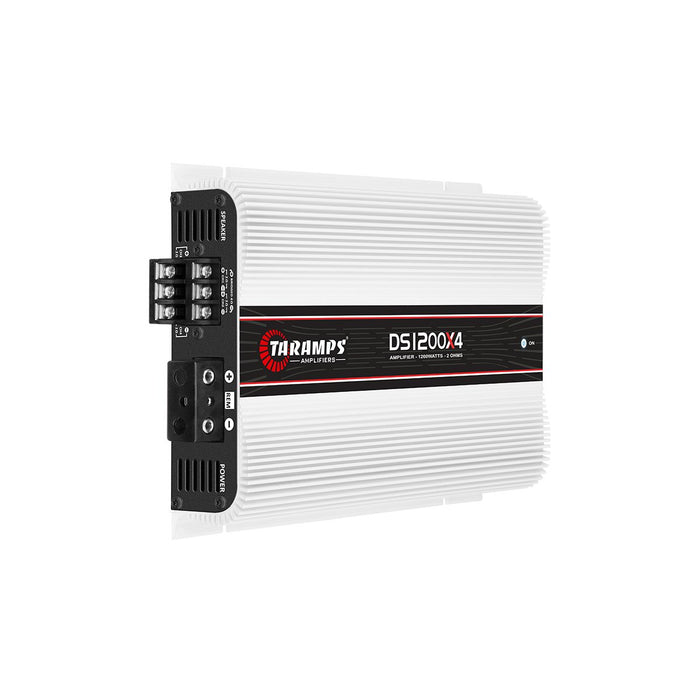

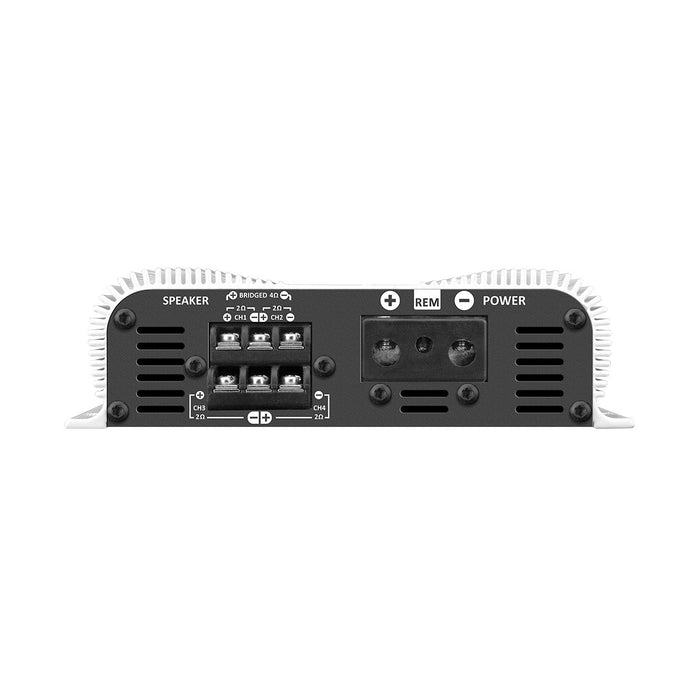

Taramps DS 1200X4 Module DS Class D 4 Channels 2 Ohm 300 Watts RMS Amplifier

The DS 1200×4 is a synonym for Taramps multichannel amplifier module. It has 4 channels of 300 Watts RMS, with maximum power of 1200 Watts RMS, impedance of 2 ohm and is compatible with any frequency, that is, it is FULL RANGE. Versatility, efficiency and quality in a single Taramps product.

Features

  • CLASS OF OPERATION Class D
  • NUMBER OF CHANNELS 04
  • MAXIMUM POWER @ 12.6 VDC - 2 OHMS: 1200W RMS (4 x 300W RMS) @ 12.6 VDC-4 OHMS: 768W RMS (4 x 192W RMS)
  • INPUT SENSITIVITY 250mV
  • SIGNAL / NOISE RATIO> 80dB
  • FREQUENCY RESPONSE 9Hz ~ 27KHz (-3dB)
  • CROSSOVER HIGH PASS (HPF) 90Hz (-12dB / 8th) Fixed
  • CROSSOVER LOW PASS (LPF) 90Hz (-12dB / 8th) Fixed
  • IMPEDANCE OF INPUT 18K OHMS
  • OUTPUT IMPEDANCE 2 OHMS
  • PROTECTION SYSTEM Output Overload
  • MINIMUM POWER SUPPLY VOLTAGE 9VDC
  • MAXIMUM POWER SUPPLY VOLTAGE 16VDC
  • CONSUMPTION AT HOME 1.8A
  • MAXIMUM MUSICAL CONSUMPTION @ 12,6VDC 67,5A
  • MAXIMUM CONSUMPTION IN SENOIDAL SIGNAL 135A
