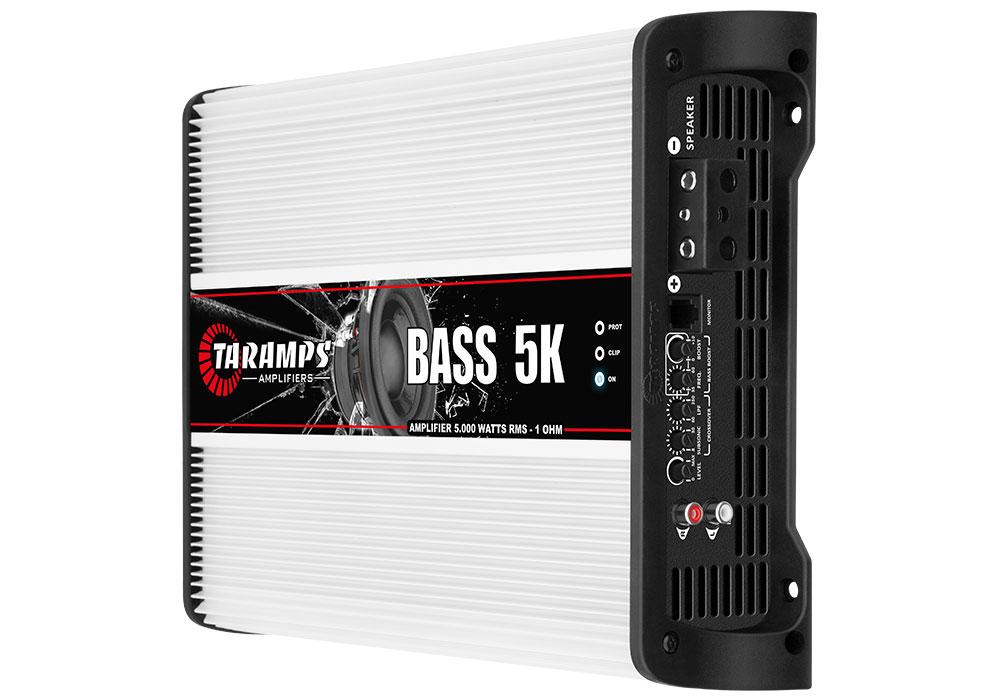

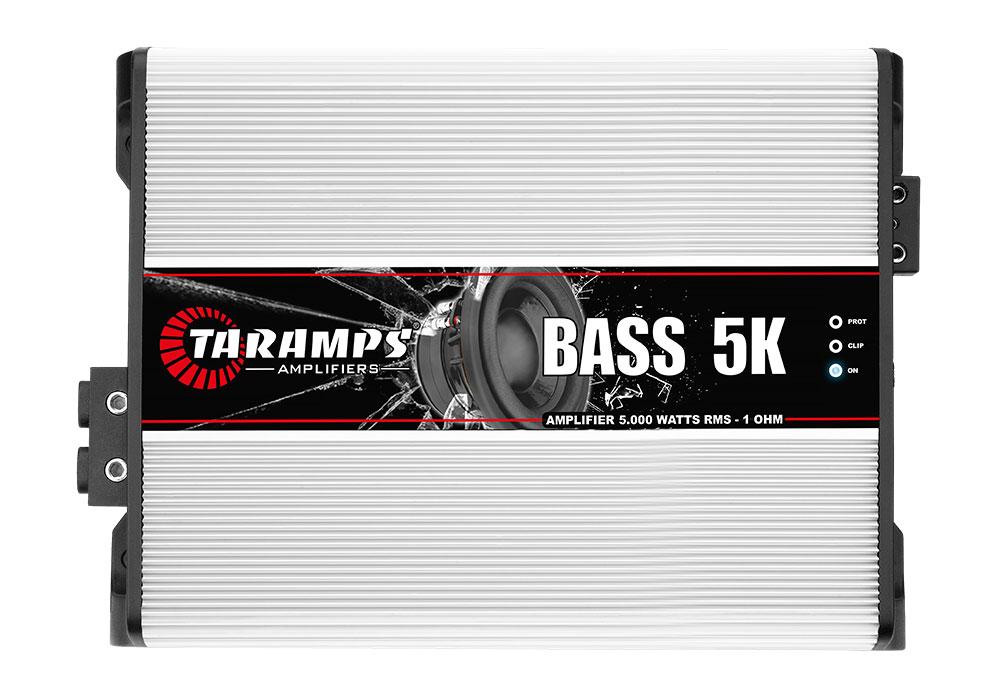

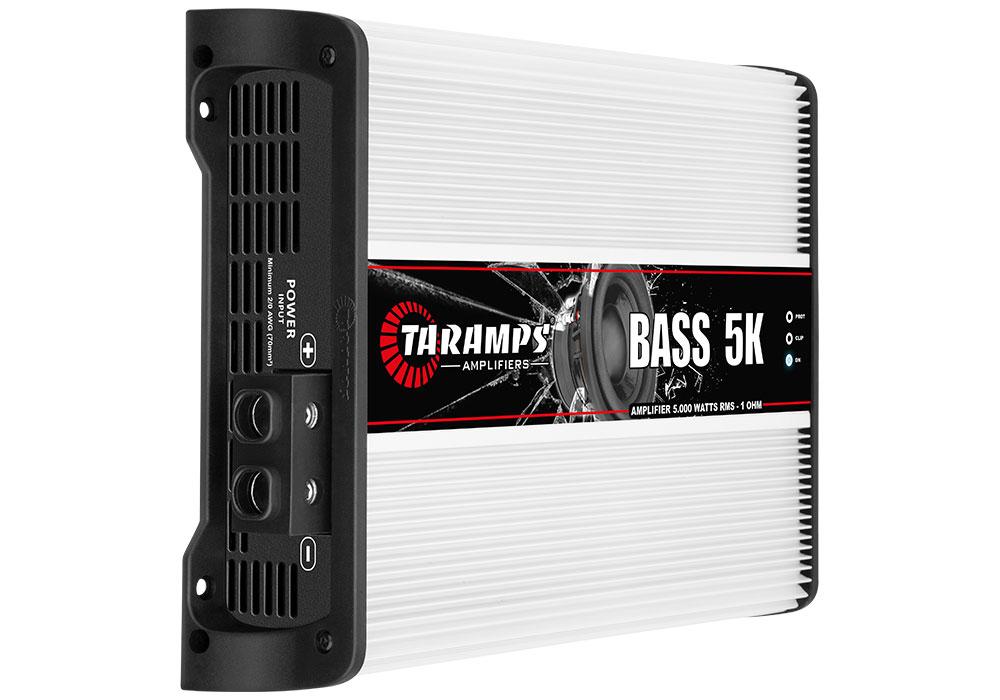

Taramps BASS 5K Module Class D 1 Channel 1 Ohm 1 Channel 5000 Watts RMS Amplifier

Availability:
Out of stock
SKU TAR-BASS5K
Sold out

Taramps BASS 5K Module Class D 1 Channel 1 Ohm 1 Channel 5000 Watts RMS Amplifier

The BASS 5K amplifier from Taramps was carefully developed with the highest technology, income and performance for automotive sound systems and made specifically for subwoofer and bass responses, in the frequency range from 8Hz to 250Hz. It has a maximum power of 5000 Watts in 1 channel of 1 ohm, with customized adjustments according to the size of the trunk and the frequency of most prominent of each vehicle, through the BASS BOOST and the option of choosing the central frequency. This amplifier module can offer much more control of excessive displacement, through SUBSONIC FILTER, volume control and LOW PASS, to make your bass in the right measure. Welcome to the sound world of Taramps!

Features

  • Operation Class: D
  • Number Of Channels: 01
  • Maximum Power:
  • @ 14.4 Vdc - 1 Ohm: 5000 W Rms
  • @ 14.4 Vdc - 2 Ohms: 3200 W Rms
  • Input Sensitivity: 220mV
  • Signal to Noise Ratio:> 95Db
  • Frequency Response: 8Hz to 250Hz (-3Db)
  • Crossover High Pass (Hpf): Variable, 8 to 30Hz (-12Db / 8th)
  • Crossover Low Pass (Lpf): Variable, 60 to 250Hz (-12Db / 8th)
  • Bass Boost: Parametric, 35 - 60Hz, 0 ~ + 10Db
  • Efficiency: 83%
  • Input Impedance: 22K Ohms
  • Output Impedance: 1 Ohm
  • Protection System: Short On Output, Short On Output Regarding Gnd, Low Impedance Protection, High / Low Voltage Protection And Thermal Protection.
  • Min. Supply Voltage: 9 Vdc
  • Maximum Power Rating: 17 Vdc
  • Consumption At Rest: 1.20 Amp
  • Musical Maximum Consumption: 209 Amp
  • Maximum Consumption in Sinusoidal Signal: 418 Amp
