Sunfire SDS8 8" Dual Driver Powered Subwoofer 200W Class D Amplifier


Sorry, this product has been discontinued.

Sunfire SDS8 8" Dual Driver Powered Subwoofer 200W Class D Amplifier

Brand: Sunfire
Condition: New

8" poly-coated fiber cone woofer
Built-in Class D amplifier
Down-firing 8" passive radiator
Auto on/off
Vibration-reducing conical feet
Frequency Filtration Design (FFD) technology allows high output levels with low distortion
Bass-reflex (passive radiator) enclosure
Continuously variable low-pass 30-150 Hz crossover
Continuously variable phase control (0-180)

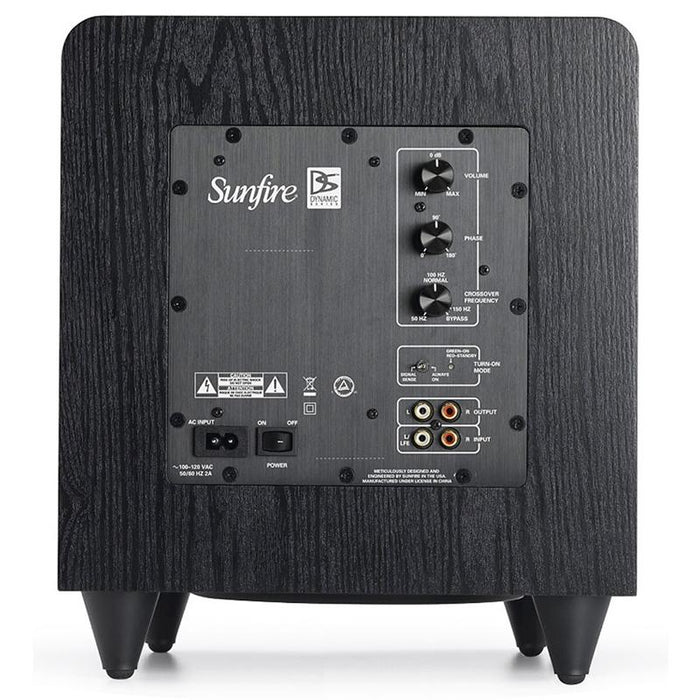

Rear mounted volume, crossover, and phase control
Line-level inputs and outputs
LFE input for use with home theater receiver's subwoofer output
Soft Clipping Circuitry
Gold Plated Connections
RCA Inputs/Outputs
Detachable Power Cord
Black ash vinyl finish

Woofer: 8 inches
Enclosure: Passive Radiator
Configuration: Front firing active woofer, down firing passive radiator
Input Impedance: 10K ohms (Ohms)
Frequency Response: 32-150Hz
Input Power: 120VAC, 50-60Hz
Output Power: 200W RMS / 400W Peak
Crossover Adjustment: 30-150Hz inf. var.
Low-Pass Crossover Freq: 50-150Hz
High-Pass Crossover Freq: 85Hz
Phase Switch: Yes
Phase Adjustment: 0-180 degree inf. var.
Power Consumption: 30W (Based on 1/8th power all the time at 35Hz)
Driver Impedance: 4 ohms
Outputs: RCA
Max SPL: 100
Video Shielded: No
Wireless: No
Preamp-Level Inputs: Yes
Speaker-Level Inputs: No
Speaker-Level Outputs: No

Sunfire SDS8 Powered Subwoofer
Power Cord
