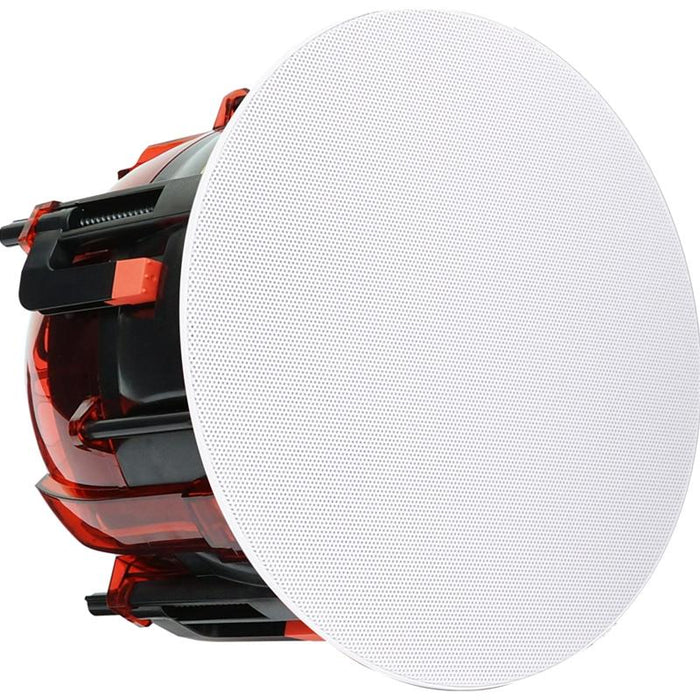

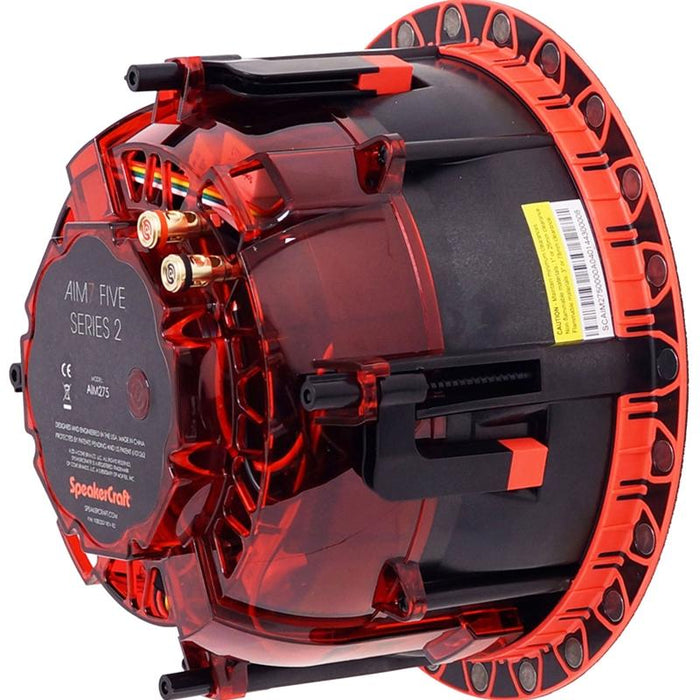

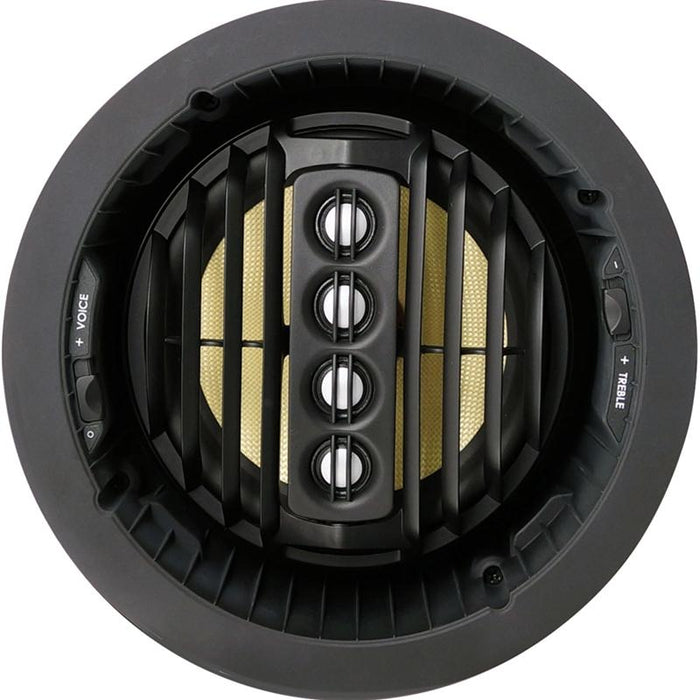

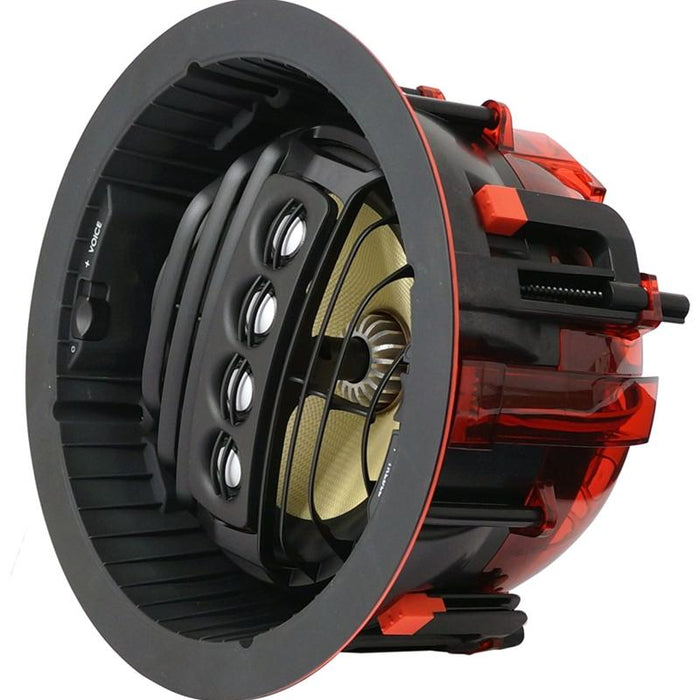

SpeakerCraft AIM275 7" 2-way In-Ceiling Speaker w/ Kevlar Woofer, Aluminum/Magnesium ARC Tweeter Array
Brand: SpeakerCraft
MPN: AIM275
Condition: New
PROPRIETARY ARC TWEETER ARRAY ™ DESIGN
-Uniform, aim-able high-frequency coverage.
-Lower crossover point through increased number of drivers gives increased sound pressure level at the critical mid-range frequencies resulting in a sweeter sweet spot.
-Smoother power response, higher power handling capability and less distortion than a single tweeter design.
-New speaker housing design allows for a +/-15 degree pivoting woofer, totaling 30 degrees of adjustment, plus Arc-Tweeter Array with +/- 15 degree toe-in/toe-out adjustment, and 359 degrees of rotational flexibility.
EXCLUSIVE PATENTED DESIGN & ACOUSTIC ISOLATION TECHNOLOGY™
-Co-molded, lower density compounds minimize structural resonance in the surrounding wall/ceiling.
-Updated WavePlane design enhances high frequency dispersion.
-Acoustic Vortex Eliminators reduce sound turbulence.
U.S. ENGINEERED & DESIGNED TRANSDUCER, MOTOR, AND CROSS-OVER
-Increased stiffness of the curvilinear cone design enables the cone to deliver energy to the air more effectively for greater bass response.
-Butyl elastomer surround creates a more consistent sound with less disruption.
-Non-conductive Kapton formers, copper caps and extended poles reduce distortion.
-Improved power handling and sensitivity limits compression for louder and cleaner sound.
-Symmetrical & A-symmetrical Linkwitz-Riley crossover designs for highest sound quality.
INNOVATIVE INDUSTRIAL DESIGN & MATERIALS
-Kevlar™ Fiber Woofer + Aluminum-Magnesium Dome Tweeters
-Back mounted grille assembly magnets improve aesthetics and longevity of grille assembly
SPECIFICATIONS:
Family: AIM Series 2
Woofer Size: 7"
Woofer Construction: Kevlar Pivoting Woofer
Tweeter: 4 x 5/8" Aluminum/Magnesium Pivoting Tweeter with 359° Rotational Adjustability
Frequency Response: 35Hz-20kHz
Impedance: 8 (Ohms)
Power Handling: 150 Watts
Sensitivity: 90 dB
Crossover: Asymmetrical 2nd/3rd Order Linkwitz Riley
Timbre: Timbre-Matched to all FIVE Level Speakers
Switches: Tweeter Level and Dialog
Dimensions: 9-5/8" [244 mm] Diameter x 5-1/2 [140 mm] Depth
Hole Cutout Dimensions: 8-1/4" [210 mm] Diameter
