Sony XAV-AX3200 6.95" Multimedia Receiver with Apple CarPlay Android Auto and WebLink

Sony XAV-AX3200 6.95" Multimedia Receiver with Apple CarPlay Android Auto and WebLink
Availability:
in stock, ready to be shipped
SKU SON-XAV-AX3200

Sony XAV-AX3200 6.95" Multimedia Receiver with Apple CarPlay, Android Auto and WebLink

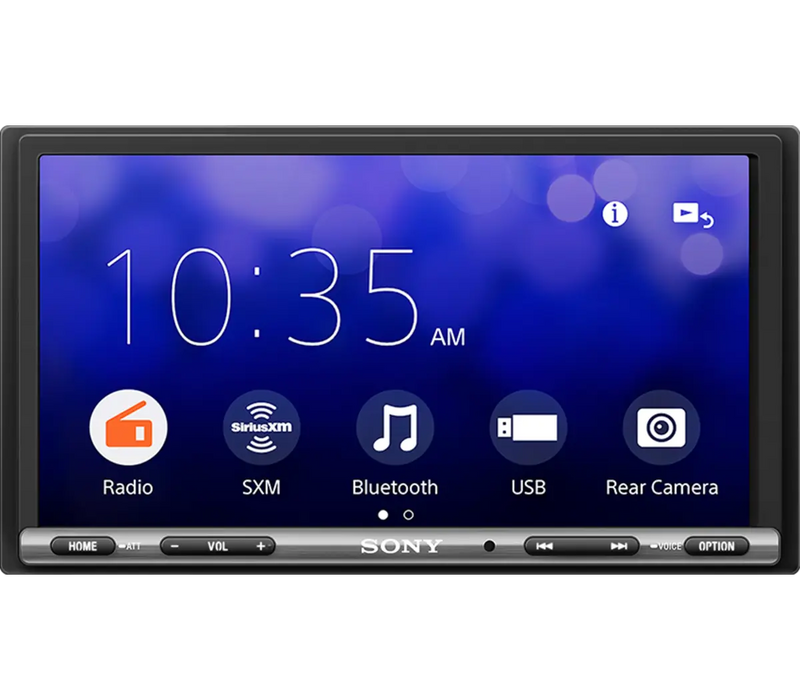

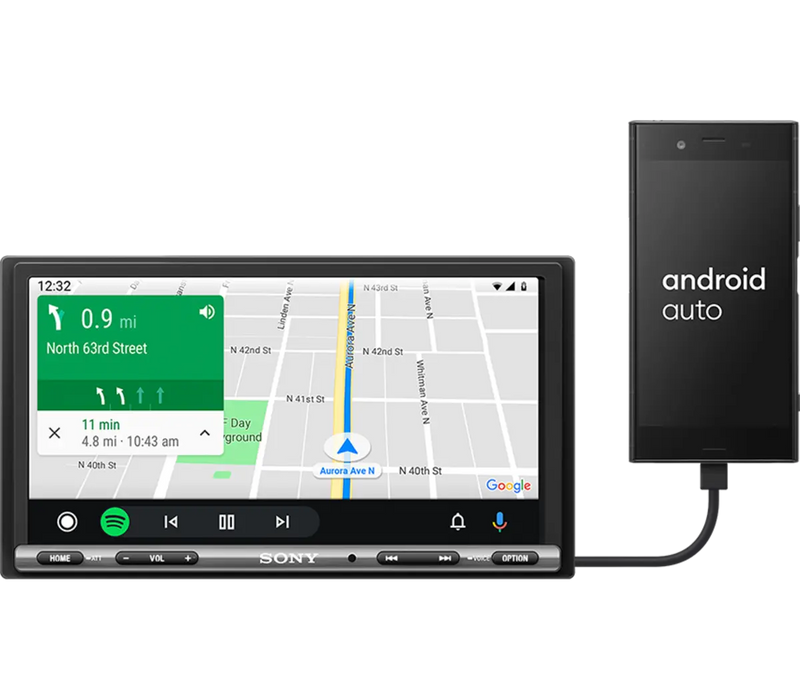

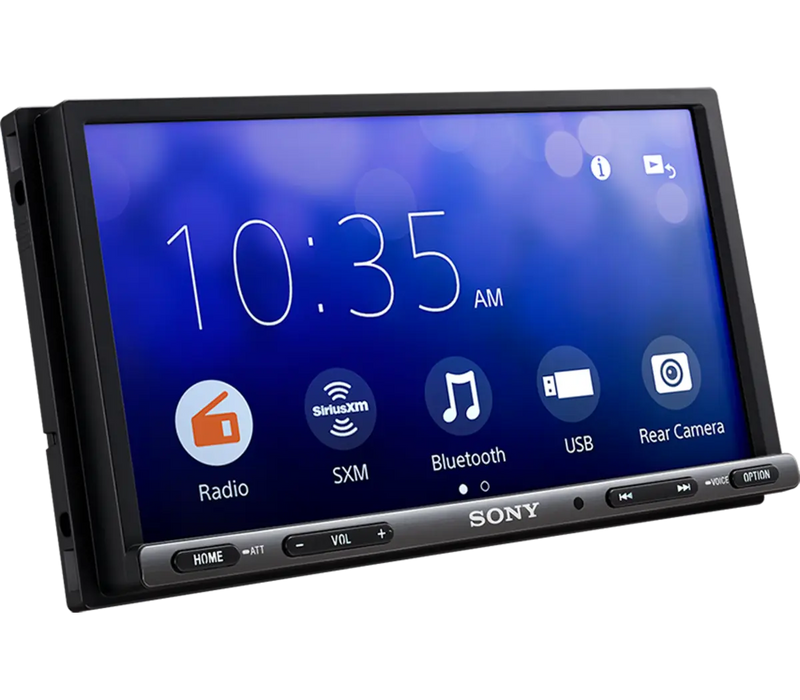

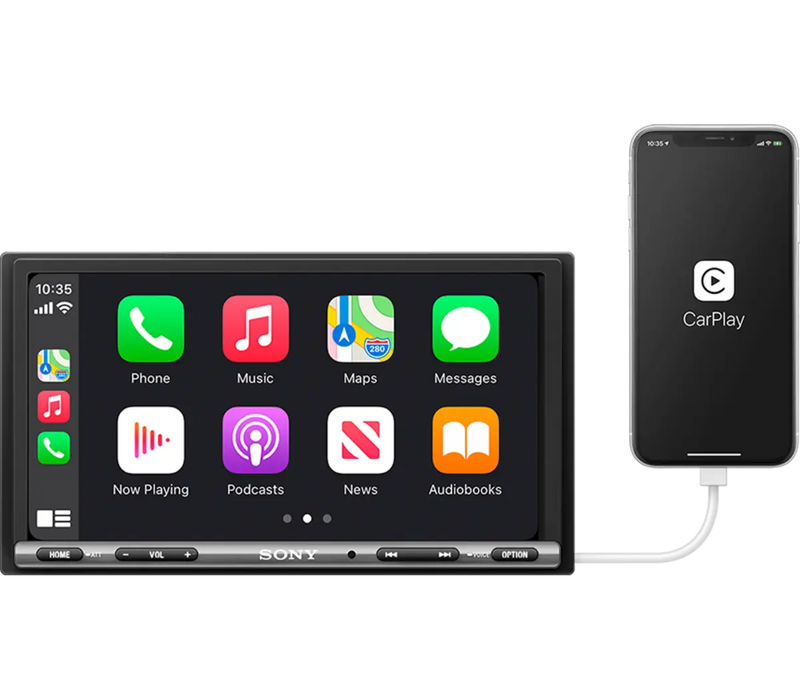

Full smartphone integration and enhanced connectivity Enjoy smartphone connectivity including screen mirroring with WebLink™1. An anti-glare 6.95" (17.6cm) diagonal touchscreen wakes up right after turning on the ignition2 and gives you intuitive control over music, communications, and more. Newly added A/V connectivity allows you to hook up an external audio or visual source device. Smarter driving with intelligent voice control Connect your smartphone and speak through the supplied microphone. Voice control makes it safer and easier than ever to navigate, communicate and play music on the road. Siri with Apple CarPlay Easily access the iPhone features you know and love, just by talking to Siri. Music, maps, phone calls and messages are all under your control3. Voice Control with Android™ Auto Use voice commands to dictate messages, take phone calls, or get help from Google Maps. You can even control music playback with your voice4. Your personal navigator Get directions in real-time without ever taking your hands off the wheel, easily navigate to your destination, or search for stops mid-journey.
  • Mirror and control selected smartphone apps with WebLink Cast1
  • Anti-glare touchscreen with quick boot
  • EXTRA BASS™ adds low-end power
  • A/V input for an external audio and visual source device
  • Rear-view camera ready for safe reversing

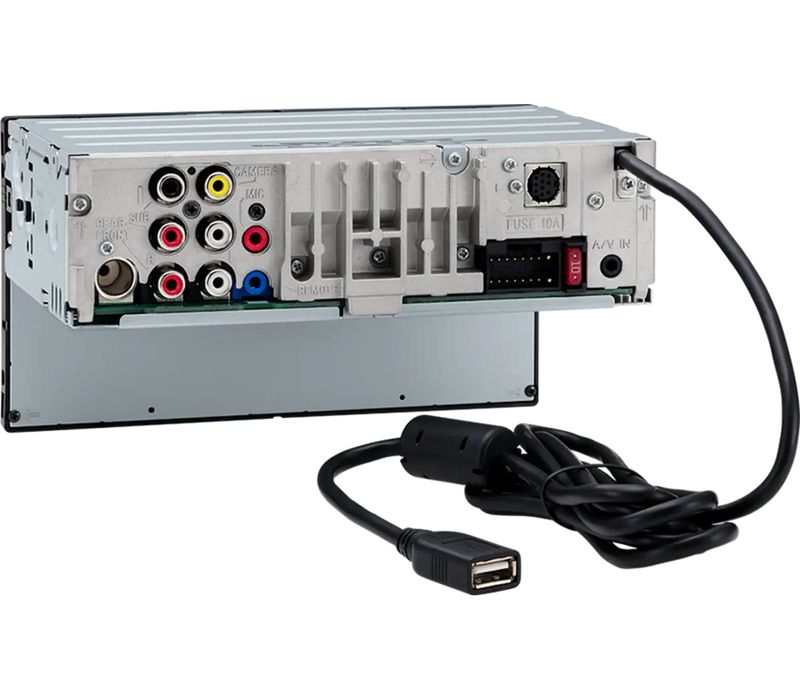

Specifications:

Expandability

  • Pre Out: 3 Pre (Front / Rear / Sub x 1)
  • High Voltage Pre Out: No
  • AUX Input (Stereo Mini-Jack): No
  • AUX/Video Input (RCA): Yes (Mini-Jack)
  • Rear View Camera Input: Yes
  • Video Out: No
  • USB: Yes (Rear x1)
  • Bluetooth: Yes
  • Extension Connector: No
  • Sirius XM Ready: Yes
  • DAB: No

Smartphone Linkage

  • Apple CarPlay: Yes
  • Android Auto: Yes
  • WebLink: Yes (WebLink CAST)
  • Voice Command (Smartphone Function) Activate: Yes (Only CPAA)

General Features

  • DVD/CD Playback: No
  • Sub Woofer Out Initial: Normal
  • Sub Woofer Adjust: Yes
  • Sub Woofer Adjust Initial: 0dB
  • Sub Woofer Phase: Yes (Normal/Reverse)
  • Balance Initial: Center
  • Fader Initial: Center
  • High Pass Filter Initial: OFF
  • Low Pass Filter Initial: 100Hz
  • ATT Initial: OFF
  • DVD LEVEL Adjust Initial: No
  • Zone x Zone: No
  • PICTURE EQ Initial: Dynamic
  • Aspect Ratio Initial: Full
  • USB High Charge: Yes / 1.5A
  • Firmware Upgradability: Yes
  • Tag Indication: Yes (Except Flac and WAV)
  • HD Radio Embedded: No

Tuner Features

  • Preset: FM18/AM12
  • Auto Memory: BTM
  • FM 50k/100k/200k Change: No
  • AM 9k/10k Change: No
  • RDS/EON: Yes (RBDS)
  • AF: No
  • TA: No

USB Control Features

  • List: Yes
  • Repeat: Yes
  • Repeat Initial: All
  • Shuffle: Yes
  • Shuffle Initial: Off
  • Pause: Yes
  • ID3 Tag Indication (Version, Title/Artist/Album): Yes
  • CUE/REV: Yes (Video: lock search)
  • Max Layer No./Folder No./File No.: 8/1000/20000
  • MP3 Playback: Yes
  • WMA Playback: Yes
  • AAC Playback: Yes
  • WAV Playback: Yes
  • JPEG Playback: No
  • MPEG-4 Playback: Yes
  • H.264 Playback: Yes
  • Divx Playback: No
  • Xvid Playback: Yes
  • PICTURE EQ: Yes

Bluetooth Specifications

  • Version: Bluetooth Version 3.0
  • EDR: -
  • Profile:
    • HFP: Yes (1.6)
    • HSP: No
    • A2DP: Yes (1.3)
    • OPP: No
    • DUN: No
    • SPP: No
    • AVRCP: Yes (1.3)
    • AVRCP (MTE): No
    • PBAP: Yes (1.1)
    • SAP: No
    • VDP: No
    • BIP: No

Bluetooth Features

  • Recent Calls (No. of): Yes
  • Phonebook (Built-in): No
  • Phonebook Code: UTF8
  • Phonebook Access via PBAP: Yes
  • Alphabetical Phonebook Sorting (Built-in): No
  • Alphabetical Phonebook Sorting (PBAP): Yes
  • Phone Data Password Lock: No
  • Connection Status (Maximum No.): [1HFP/PBAP+1Audio]
  • Display for Connecting List: No
  • Any Key Answer: No
  • Auto Answer: No
  • RF ON/OFF: Yes
  • DTMF: No
  • Internal Ringtone: 1 (2016 Sony Mobile Ringtone)
  • Noise Canceller: Yes
  • Echo Canceller: Yes
  • Ring Alert Select: No
  • Ring Volume Level Control: Yes
  • Call Volume Level Control: Yes
  • Mic Gain Adjustment: Low/Mid/High
  • TEL Out Channel: Front / Rear / All
  • Voice Dial Activation: No
  • Built-in Microphone: No
  • External Microphone: Supplied
  • Battery Remainder Indication: Yes
  • Signal Strength Indication: Yes
  • Speed Dial: Yes (6 memories)
  • Last Dialed Call: Yes (select from the dialed call history)

Bluetooth Audio Features

  • Audio Codec: SBC / AAC
  • Pause: Yes
  • CUE/REV: Yes
  • Track +/-: Yes
  • Group (Folder) +/-: Yes
  • Audio Level Adjustment: Yes (-6dB to +6dB)
  • Audio Level Adjustment Initial: 0dB
  • Repeat Control (Audio Device Side): Yes
  • Shuffle Control (Audio Device Side): Yes
  • Meta Data Indication: Yes

Panel Design

  • Panel Surface Finish Color: Black
  • Key Illumination: Yes (White)
  • Panel Detachability: No

Monitor (AVC)

  • LCD Type: TFT Active Matrix
  • Screen Aspect: 16:9
  • Dimmer: Yes
  • Contrast Ratio: 600
  • Brightness: 800 cd/m²
  • Resolution (DOT): 800 × 480
  • Dimmer Method: Auto/Manual Select
  • Screen Mode: Yes: Type 1 to 4
  • Color System: NTSC/PAL
  • Color System Auto Switch: Yes
  • Viewing Angle (Contrast Ratio 10:1): 70/70/60/65 (L/R/U/D)
  • Response Time (Black to White/White to Black): Tr+Tf= 30 ms
  • Dimmer Adjust: Yes
  • Screen Diagonal (inch/mm): 6.95 inch / 176 mm
  • Screen Size (WxH mm): 156.6 x 81.6 mm
  • Display Panel (MDP and AVC): Dimmer Area
  • Monitor Off Mode: Yes
  • Menu: English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian
  • Multi Language Caution: English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian
  • Menu/Caution Initial: English
  • ID3 Tag: English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian
  • Source List: Yes

User Interface

  • Parking Control: Yes
  • Aspect Ratio Select: Yes
  • Rear View Camera-In Marker Setting: Yes
  • Clock: 12H
  • Rotary Commander (Option): No
  • Remote Commander (Option): RM-X170
  • Wallpaper Initial: Blue
  • Wallpaper Customization: Yes
  • List Function: Yes
  • Demo Mode: Yes

USB Specifications

  • Version: USB 2.0 (High Speed)
  • USB Mass Storage Device: Yes
  • USB Capability: USB Media Transfer Protocol: No
  • USB Hub: No
  • File System: exFAT, FAT12/16/32
  • Connection-Enabled Device List: WEB Support
  • Repeat: TRACK/FOLDER/DRIVE
  • USB Mass Storage Device Control Feature:
    • Shuffle: OFF/FOLDER/DEVICE
    • Pause: Yes
    • Resume Play: Yes
    • Plug and Play: No
  • Audio Codec: PCM/MP3/WMA/AAC/FLAC
  • Audio Playable File Extension: wav/.mp3/.wma/.m4a/.flac
  • Video Codec: MPEG4-SP/AVC (H.264 Baseline)/WMV/MKV/XviD
  • Video Playable File Extension: .mp4/.wmv/.mkv
  • MTP: No

Tuner

  • FM (Tuning Range (MHz)/Step (kHz)/De-emphasis (µs)): 87.5-108/50/50: No
  • FM (Tuning Range (MHz)/Step (kHz)/De-emphasis (µs)): 87.5-107.9/200/75: Yes
  • FM (Tuning Range (MHz)/Step (kHz)/De-emphasis (µs)): 87.5-107.9/100/75: No
  • MW (Tuning Range (kHz)/Step (kHz)): 531-1602/9: No
  • MW (Tuning Range (kHz)/Step (kHz)): 530-1710/10: Yes
  • LW (Tuning Range (kHz)/Step (kHz)): 153-279/seek 9 manual 1: No
  • SW (Tuning Range (kHz)/Step (kHz)): 5950-6205/5: No
  • FM-Tuning Range (MHz): 87.5-107.9
  • MW-Tuning Range (kHz): 530-1710
  • LW-Tuning Range (kHz): No

Accessibility

  • Closed Caption / TTS: No support

Display

  • Screen Size (Inch / mm): 6.95 inch / 176 mm
  • Touch Panel: Resistive + AG

Sound

  • Output Power: 55W
  • EXTRA BASS: Yes (Off/1/2)
  • Graphic Equalizer: 10 Band Graphic Equalizer
  • DSO: Yes
  • Time Alignment: No

Other Features

  • Device Name: XAV-AX3200

General

  • Preout Output Level (V): 2Vrms
  • Maximum Output Power (4 ohms, 1 kHz, 16V) (W): 55W
  • CTA2006 Output Power: 20W
  • CTA2006 S/N: 80dBA
  • Speaker Impedance (ohms): 4-8Ω
  • Connector Type: 16P
  • ANT Connector: JASO
  • Dimensions (WxHxD) (mm): 178 x 100 x 139
  • Mounting Dimensions (WxHxD) (mm): 182 x 111 x 120
  • Weight (kg): 1.0

General Features

  • Lithium Battery: Yes

Additional Information

  • WebLink is a registered trademark of Abalta Technologies, Inc. and a trademark in other countries. App compatibility may vary by car audio and region. For required smartphone operating systems, visit: Abalta Technologies
  • Apple, Apple CarPlay, and Siri are trademarks of Apple Inc. Apple and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.
  • Android Auto requires the Android Auto app on Google Play and on Android-compatible smartphones running Android 5.0 Lollipop or higher. Android Auto may not be available on all devices and is not available in all countries or regions. Android, Android Auto, and Google Play are trademarks of Google LLC.
  • Reproduction through Linear PCM conversion to 24 bit/44.1kHz.
  • This product is also known as XAV-AX3200.EU, XAVAX3200
  • Features and specifications are subject to change without prior notice.
