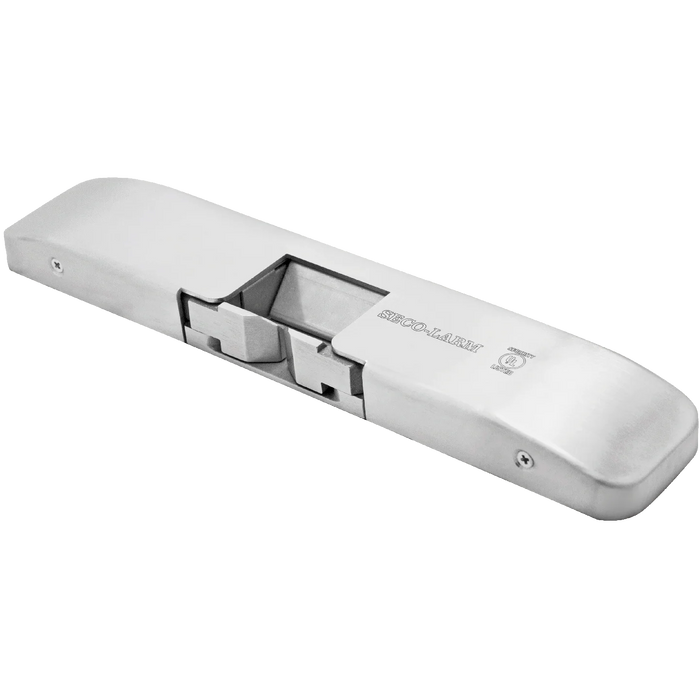

Seco-Larm SD-998C-D3Q Surface-Mount 3/4" Tamper-Resistant Electric Rim Strike, Concealed Mounting Screws, 1500-lb Jaw Strength, 3/4" (19mm) Thick Metal Housing, 70ft-lb Dynamic Strength, 12/24VDC
The SECO-LARM Surface-Mount Electric Rim Strike designed with the strength and durability for use with rim-type exit devices with a Pullman latch bolt (3/4″ throw). The strike features 12/24 VDC operating voltage, selectable fail-safe/fail-secure operation, horizontal adjustment, and a surface-mount metal housing, eliminating the need for frame cutting during installation.
- UL 294 and 1034 Listed
- Tamper-resistant
- 12/24 VDC Operating voltage
- Non-polarized connection
- Horizontal adjustment
- Accommodates up to 3/4″ Pullman latch
- Reversible non-handed design
- Stainless steel construction
- Surface-mount on metal or wood frames
- Works with standard rim-type exit devices including SECO-LARM SD-962AR-36A and SD-962AR-36G
- For Indoor Use Only
- Static strength – 1,500-lb (6673N)
- Tested for 250,000 cycles (UL Tested)
- Low current draw: 540mA@12VDC, 270mA@ 24VDC
- Field-selectable for fail-safe or fail-secure operation
- Spacers included: 3x 1/32″ (0.9mm)
- The SD-998C series is intended to be used with UL Listed Exit Hardware
- The SD-998C series shall not impair the intended operation of an emergency unit
- The SD-998C series shall not impair the operation of panic hardware mounted on the door
