RG6 Outdoor Direct Burial CMX Coax Cable 3GHz Underground 18 AWG Coaxial 1000ft
Brand: Logico
MPN: COX3520
Condition: New

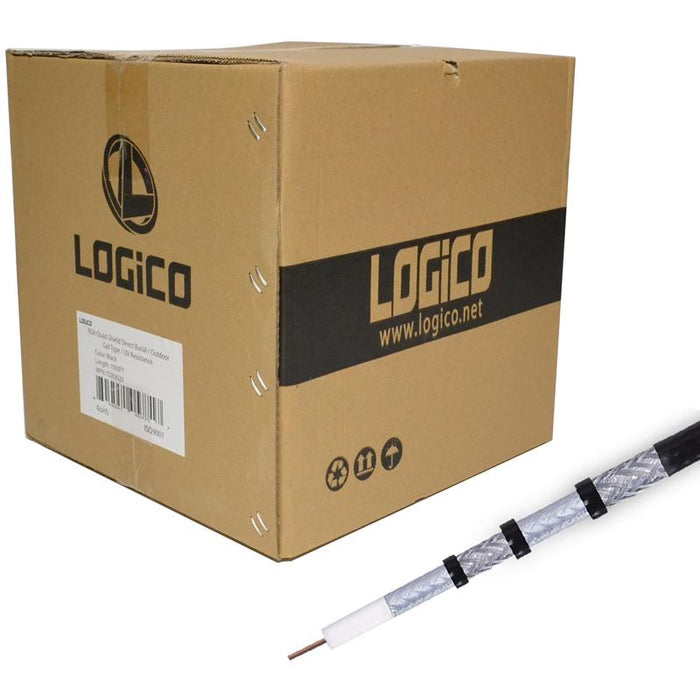

The LOGICO RG6U Quad Shield Cable is ETL Listed, has a true 18AWG (1.02mm) copper clad steel conductor. This RG6 cable consist four shields bonded aluminum foil and aluminum braid with a true coverage of 60% (80 wires) the other layer consist Unbonded Aluminum Foil and aluminum braid with a true coverage of 40% (64 wires). The jacket is CM Rated and has foot markings for easy length cuts. Swept tested to 3 GHz, to handle the demands of todays and tomorrows HD signals.
RG6U Quad Shield Direct Burial 3.0 GHz Coaxial Cable
Applications - Digital HDTV CATV and Digital Satellite (SMATV)
Fully Sweep-Tested to 3000MHz
Conductor - True 18 AWG (1.02mm) Solid Copper-Clad Steel
1st Shield - Bonded Aluminum Foil
2nd Shield- True 60% Aluminum Braid Shield 5mm x 16mm x 0.16mm
3rd Shield - Unbonded Aluminum Foil
4th True 40% Aluminum Braid Shield 4mm x 16mm x 0.16mm
Dielectric - Gas Injected Foam Polyethylene Insulation
Jacket -PVC Flame Retardant CM Rated
CM/CATV ETL Listed, RoHS Compliant
Sequential Length Markings on Jacket

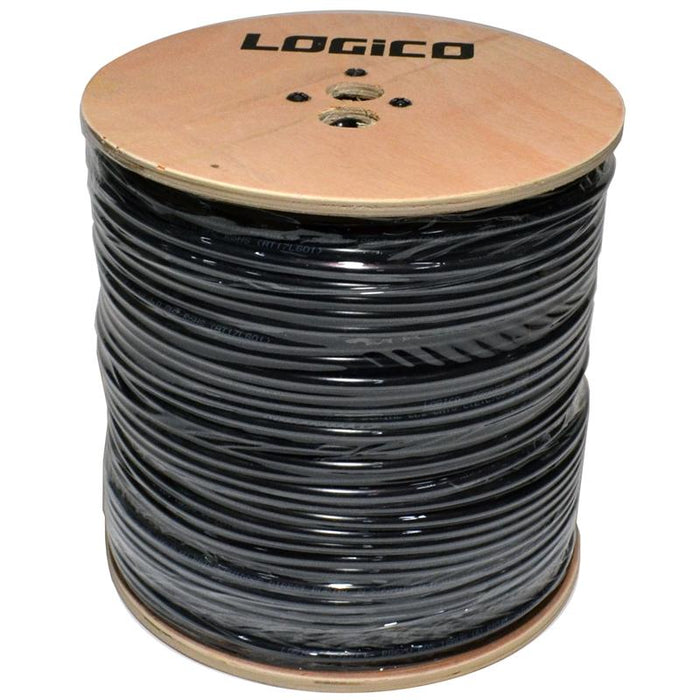

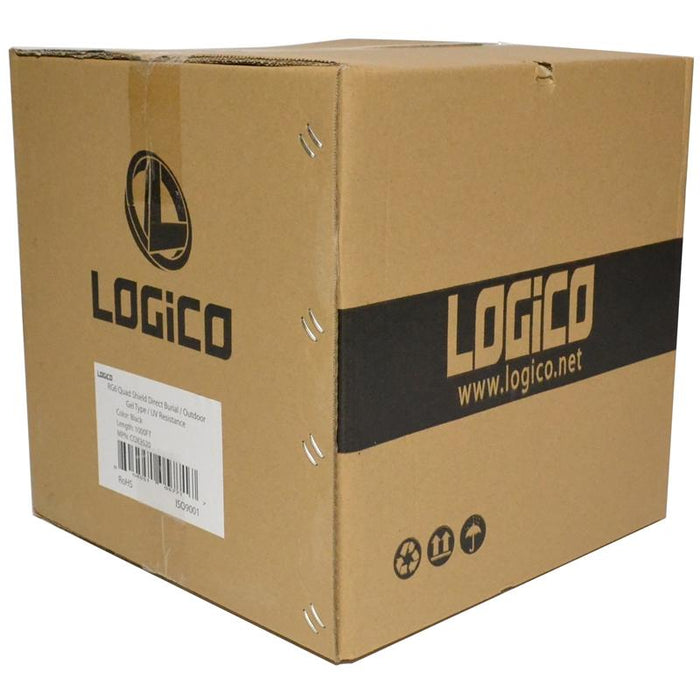

1000ft RIB (Reel In Box)
Black Color
One 1000ft RG6 Coaxial Direct Burial Cable
