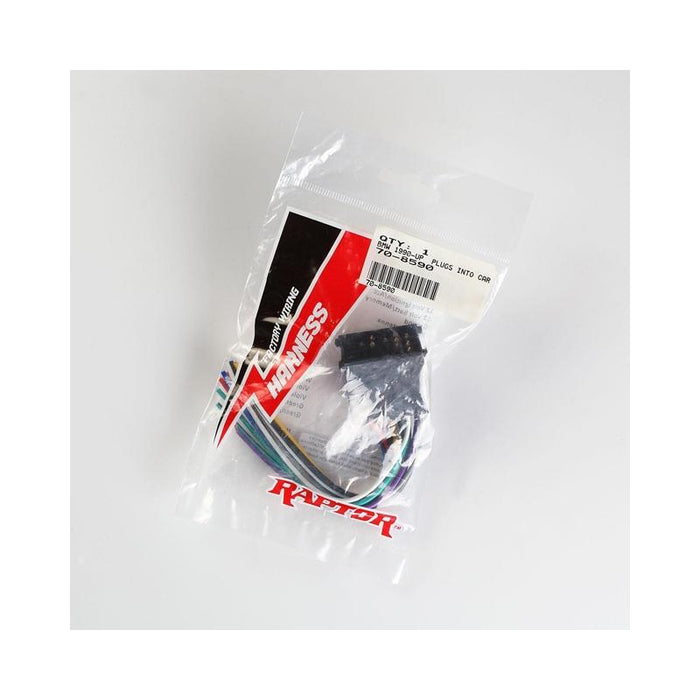

Raptor BW-8590 Wiring Harness for Select BMW 1990-2002 Metra 70-8590

Availability:
in stock, ready to be shipped
SKU RAP-BW-8590
Raptor BW-8590 Same as Metra 70-8590 Wiring Harness for Select BMW 1990-2002

Brand: Raptor
MPN: BW-8590
Condition: New

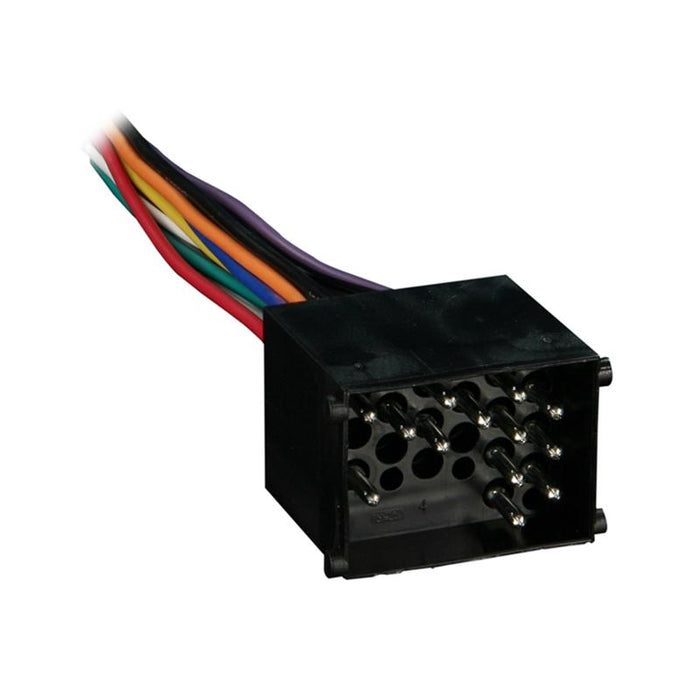

-17-pin plug
-Plugs into car harness at radio
-For non-amplified vehicles only
-Power/4 Speaker
-For select 1990-2002 BMW Vehicles
-Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
-No cutting of factory wiring is needed

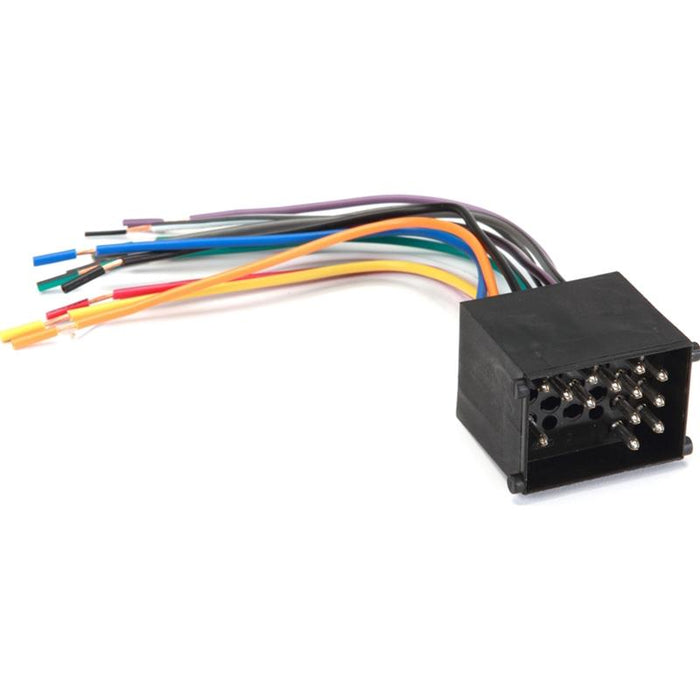

Wire Connections
Yellow – 12V Constant
Red – 12V Accessory
Black - Ground
Orange – Dash Light Dimmer/Illumination
Green – Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White – Left Front Speaker (+)
White with Black Stripe – Left Front Speaker (-)
Purple – Right Rear Speaker (+)
Purple with Black Stripe – Right Rear Speaker (-)
Gray – Right Front Speaker (+)
Gray with Black Stripe – Right Front Speaker (-)
