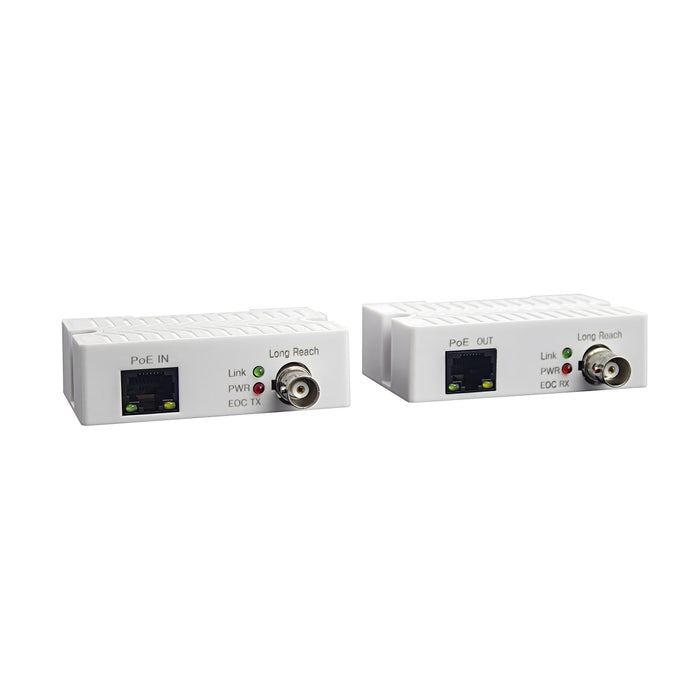

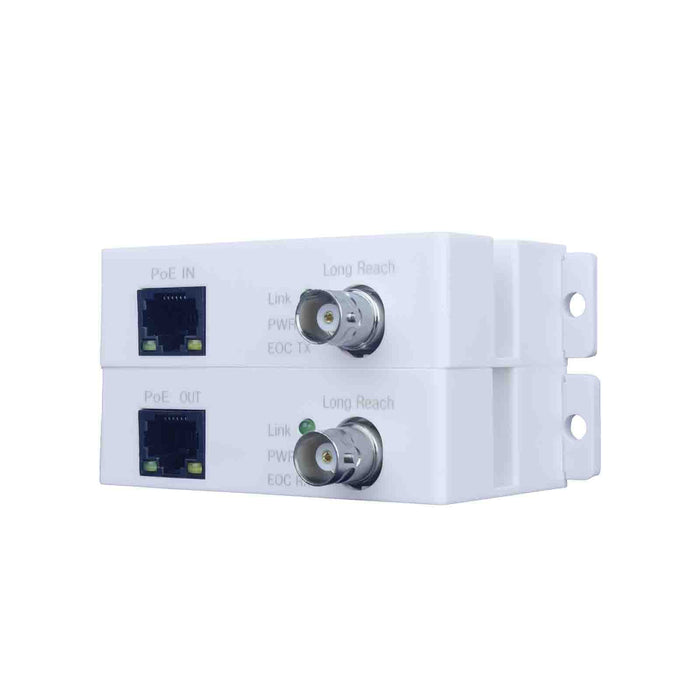

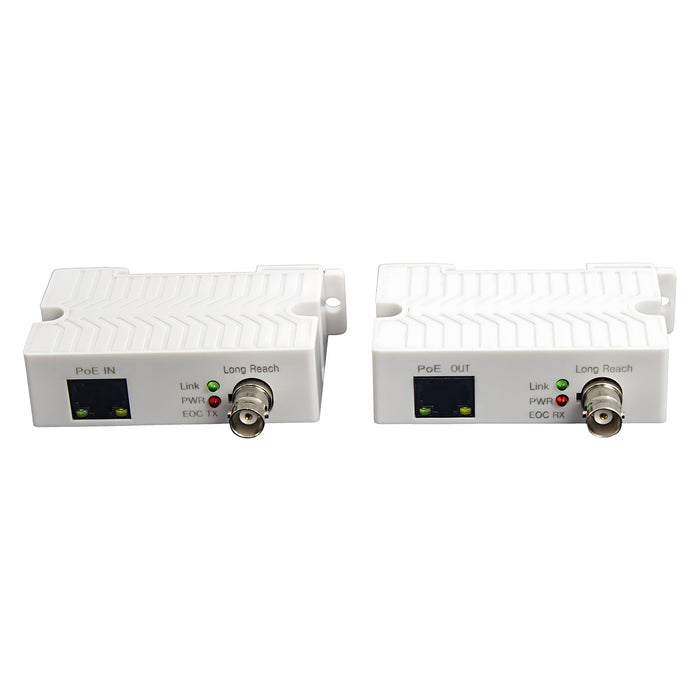

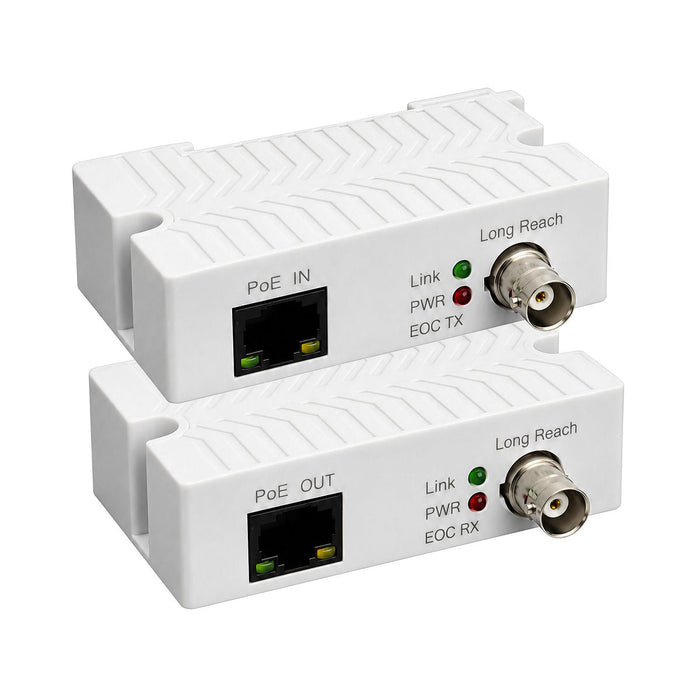

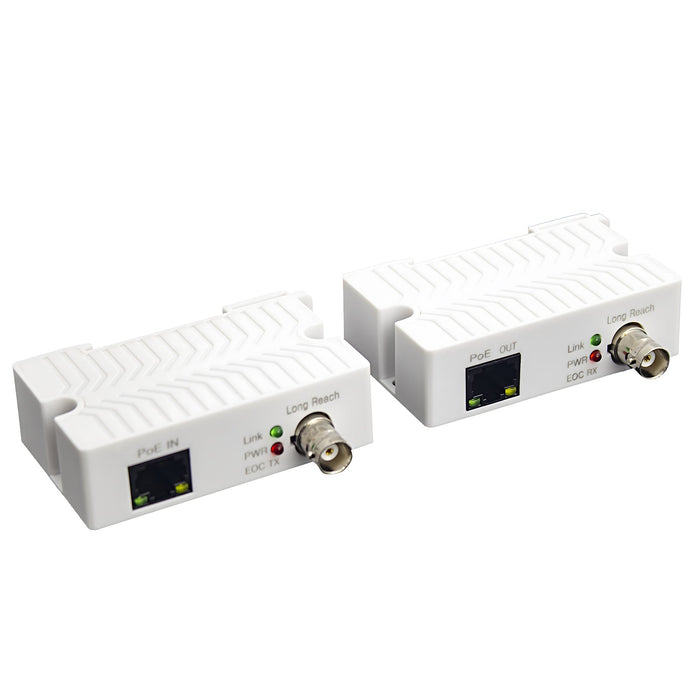

PoE EOC 800M Converter Transmitter & Receiver Kit, Ethernet over Coax, RG59 Cable

PoE EOC 800M Converter Transmitter & Receiver Kit, Ethernet over Coax, RG59 Cable
Availability:
in stock, ready to be shipped
SKU CON-POE-EOC01

800M PoE EOC Converter Transmitter & Receiver Kit, Ethernet over Coax, RG59 Cable, 10/100Mbps, IEEE 802.3af/at

PoE-EOC01 is a PoE/EOC converter for ultra-long distance data transmission and power supply, which converts the input PoE to coaxial cable transmission

  • Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3X standards
  • Supports IEEEB02.3af and IEEE802.3at power supply standards
  • Port：1 RJ45 10/100Mbps, 1 BNC
  • Supports RG59 coaxial cable: 400m/100Mbps, 800m/10Mbps
  • Supports MDI/MDIX self- adaption
  • Supports long range power supply transmission via coaxial cable
  • Operating temperature: -10℃ to 45℃

Specifications

  • Device Type: PoE over Coax (EOC) Converter

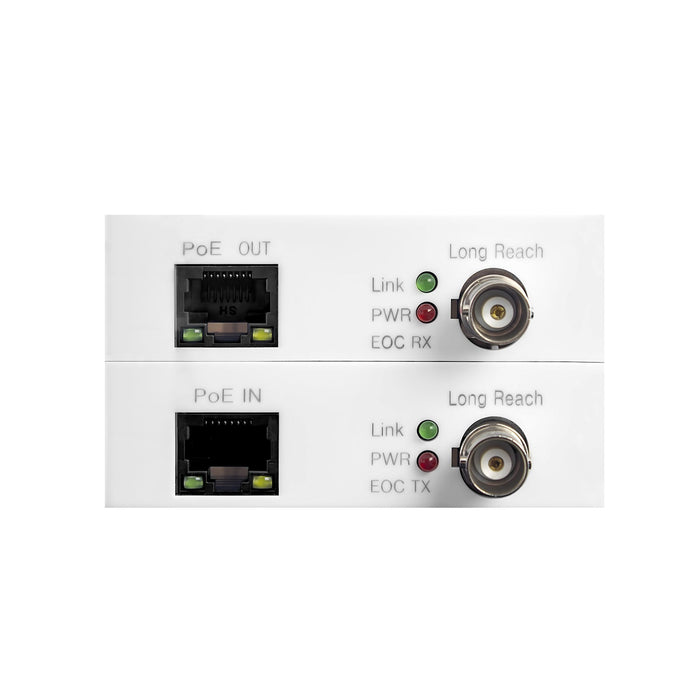

  • Ports: 1 × RJ45 10/100Mbps Ethernet Port, 1 × BNC Coaxial Port
  • Transmission Distance: Up to 400m (1,312 ft) at 100Mbps or up to 800m (2,625 ft) at 10Mbps using RG59 coaxial cable
  • PoE Standards: IEEE 802.3af, IEEE 802.3at
  • Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Features: Auto MDI/MDIX detection, long-range PoE transmission over coaxial cable, plug-and-play operation
  • PoE Pin Assignment: 1/2, 3/6 and 4/5, 7/8
  • Power Consumption: Less than 2W
  • Operating Temperature: -10°C to 45°C (14°F to 113°F)
  • Operating Humidity: 5% to 95% RH (non-condensing)
  • Housing Material: White polycarbonate

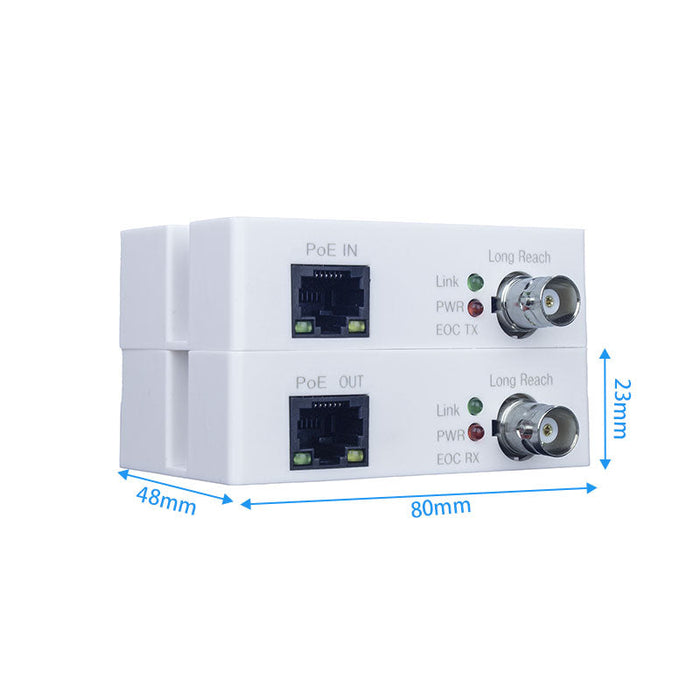

  • Dimensions: 80 × 48 × 23 mm (3.15 × 1.89 × 0.91 in)
  • Weight: 115 g (4.1 oz)
