Brand: Planet Audio
With the PLANET AUDIO PULSE MOSFET amplifier series, they are introducing 8 new amplifiers, all designed in the USA. This new series includes three monoblock amps, three 2-channel , two 4-channel amplifiers.
All PULSE models feature variable low pass and high pass (except monoblock amps) crossovers and variable input gain controls.
For further flexibility in the use of a subwoofer, 0-+18dB or 0-12dB. Bass Boost control has been included on all amplifiers. You can control the subwoofer level with the remote level control module.
PULSE amplifier has been designed to operate efficiently at loads down to 2 ohms.
When operating at 2 ohms, the amplifier will increase their output power by approximately 50%. The current draw will also increase by about the same amount, so be sure you have enough current to run the amplifiers into a 2 ohms load.
Class A/B Topology
MOSFET PWM (Pulse Width Modulated) Power Supply
2 ohm stable stereo operation with output power increase
600W x 2 MAX Power into 2 ohms
1200W x 1 Bridged Power into 4 ohms
<0.01% THD + N
9Hz - 50KHz Frequency Response
103dB S/N Ratio
90dB Channel Separation
Thermal and speaker short protection
Soft turn-on circuit
Remote turn-on/turn-off circuit
Variable input gain control
Variable low pass filter
Fixed high pass filter
Variable 0 to +18dB Bass Boost
Nickel-plated RCA low level and high level inputs
LED power and protection indicators
Black anodized heatsink
Remote subwoofer control

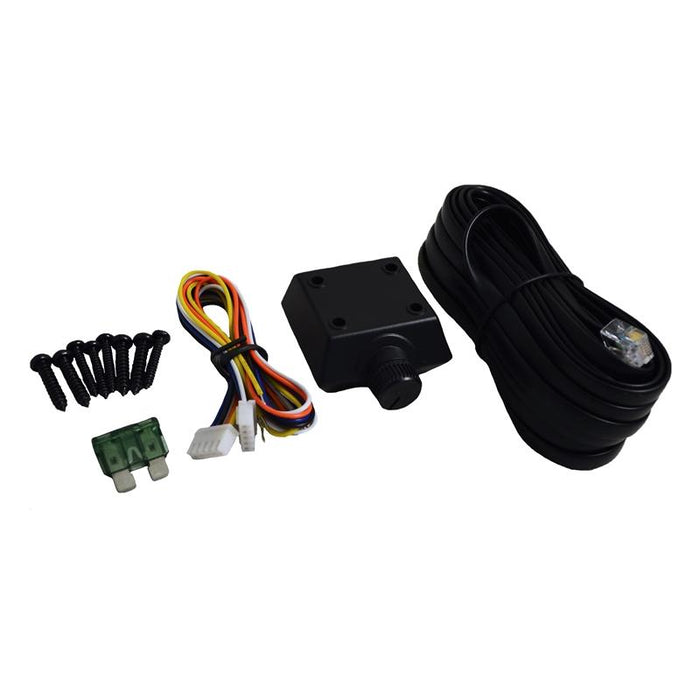

Includes (1) One Pulse Amplifier, (1) One Remote Subwoofer Control, (1) One High Input Cable with Connector and (8) Eight Mounting Screws
MAX Power into 2 ohms: 600W x 2
Bridged Power into 4 ohms: 1200W x 1
Min. Speaker Impedance: 2 ohms Stereo; 4 ohms Mono Bridged
THD + N: <0.01%
Frequency Response: 9Hz - 50KHz
S/N Ratio: 103dB
Channel Separation: 90dB
Low Pass Filter: 50Hz - 250Hz
High Pass Filter: Fixed, 80Hz
Bass Boost: 0-+18dB Variable
Fuse Rating: 35A
Dimensions (L x W x H): 9.96" x 7" x 2.39"
(1) One Pulse Amplifier
(1) One Remote Subwoofer Control
(1) One High Input Cable with Connector
(8) Eight Mounting Screws
