Planet Audio P9630B 6.2" Touchscreen DVD USB SD AUX Bluetooth Stereo

Low stock
Planet Audio P9630B 2-DIN 6.2" Touchscreen DVD USB SD AUX w/ Bluetooth Stereo

Brand: Planet Audio
MPN: P9630B
Condition: New

-80 Watts x 4 Max Power, Balance/Fader/Bass/Treble and Preset built-in EQ
-Plays Bluetooth/DVD/CD/USB/SD, MP3, WMA, FM/AM, Digital Media from Smart Phones
-Compatible with Audio out from Smartphones and MP3 Players
-USB, SD, Aux, Rear Camera, Steering Wheel Control Input
-Video, Front, Rear & Sub Pre Amp Outputs
-Wireless Remote, USB Charging
-Bluetooth Hands Free & Bluetooth Audio Streaming
-Make and receive calls, play and control music and apps like Spotify/Pandora wirelessly

P9630B Manual

Power supply: 11~16V DC
Current consumption: Max. 10 A
Maximum power output: 80W x 4 channels (max)
Compatible formats: DVD ±R/RW Video, CD ±R/RW Audio & Video
Dimensions(WxDxH)/weight: 6.5”x7.0”x3.9”/4.6 lbs
Working temperature range: -4°F -- +140°F
ESP function: 10 sec. for Audio CD, 120 sec. for MP3
Screen size: 6.2 inch
Resolution: 800*480 pixel
Aspect ration: 4:3/16:9
Brightness: 460 cd/㎡
Contrast ratio: 500:1
Frequency range(Europe area) FM:87.5 –108MHz(Step 50KHz)
Frequency range(America area) FM:87.5 –107.9MHz(Step 200KHz)
Frequency range(Asia area) FM:87.5 –108MHz(Step 100KHz)
Frequency range(South America area) FM:87.5 –108MHz(Step 100KHz)
Frequency range(Russia area) FM:87.5 –108MHz(Step 50KHz) 65-74MHz(Step 30KHz)
Preset memory stations: 18
Frequency range(Europe area): AM:522-1620(Step 9KHz)
Frequency range(America area): AM:530-1710(Step 10KHz)
Frequency range(Asia area): AM:531-1602(Step 9KHz)
Frequency range(South America area): AM:520-1710(Step 10KHz)
Frequency range(Russia area): AM:522-1620(Step 9KHz)
Preset memory stations: 12
Frequency response: 20 Hz-20 KHz
TV Color System Color system: NTSC/PAL
USB type: USB 2.0 full speed
Support format: MP3 , WMA, MPEG1, MPEG2, AVI

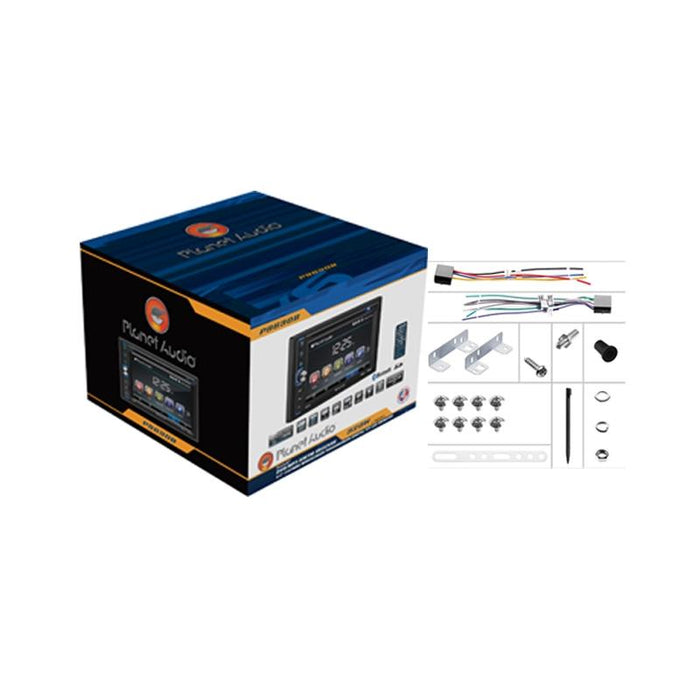

-(1) Washer
-(1) Spring Washer
-(1) M5 Nut
-(9) Screws
-(1) Bolt
-(1) Mounting Strap
-(1) Subber Cushion
-(2) Installation Brackets
-(1) Remote Control
-(2) Power Cable/Harness
-Trim Ring
-User Manual
