Planet Audio AC5000.1D Anarchy 5000W Monoblock Class D Car Amplifier

SKU PLA-AC5000.1D

Sorry, this product has been discontinued.

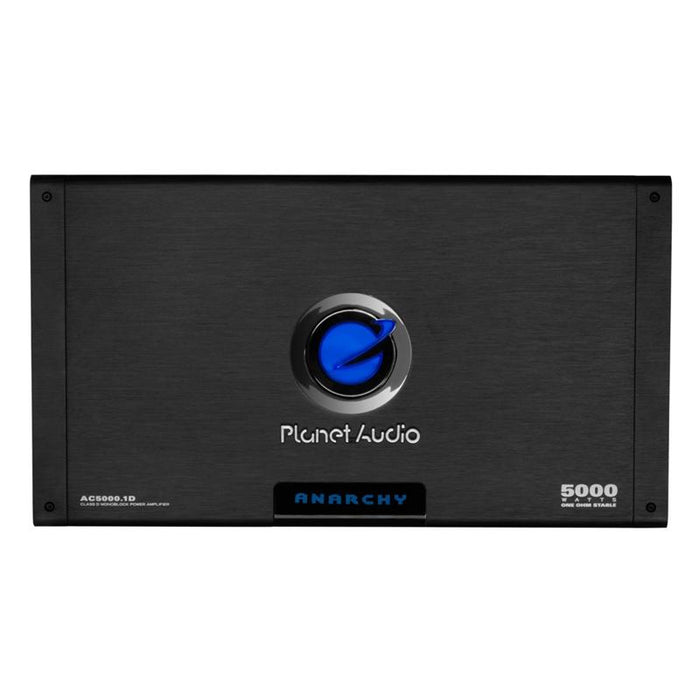

Planet Audio AC5000.1D Anarchy 5000W Monoblock Class D Car Amplifier

Brand: Planet Audio
MPN: AC5000.1D
Condition: New


Class D operation
MOSFET PWM (Pulse Width Modulated) Power Supply
One Ohm stable mono operation
Thermal, overload and speaker short protection
Soft turn-on circuit
Remote turn-on/turn-off circuit
Variable input gain control
Input voltage sensitivity selector
15-40Hz, 12dB/octave variable subsonic filter
50-150Hz, 12dB/octave variable low pass filter
Variable 0-+18dB bass boost
0/180 degrees phase shift selector

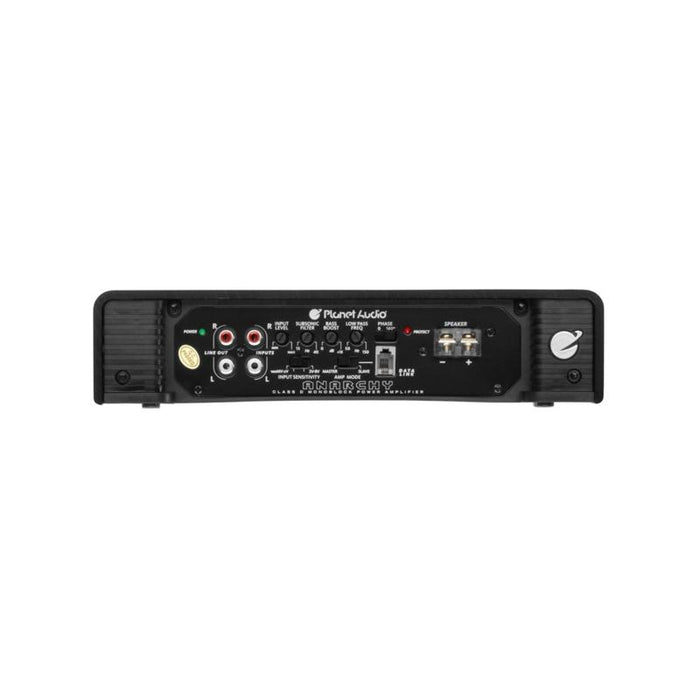

Chrome-plated RCA low level inputs

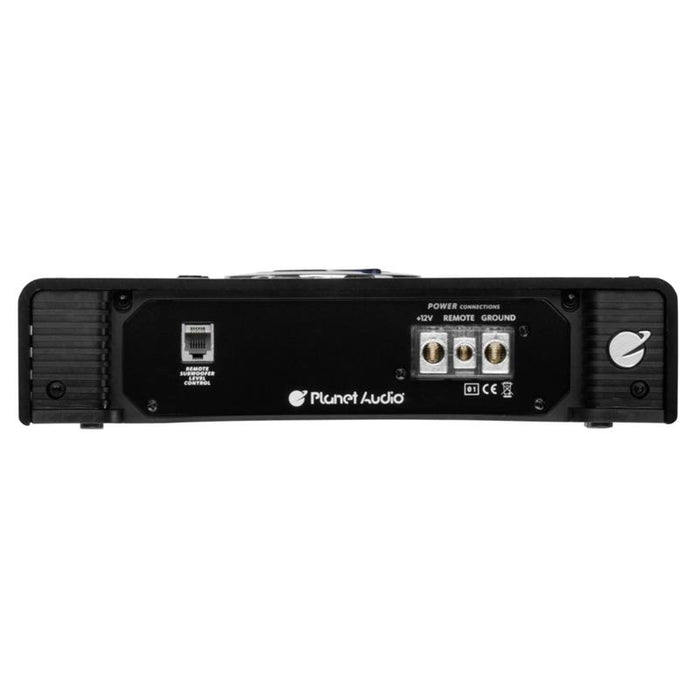

Nickel-plated speaker and power terminals
LED power and protection indicators
Black anodized heatsink

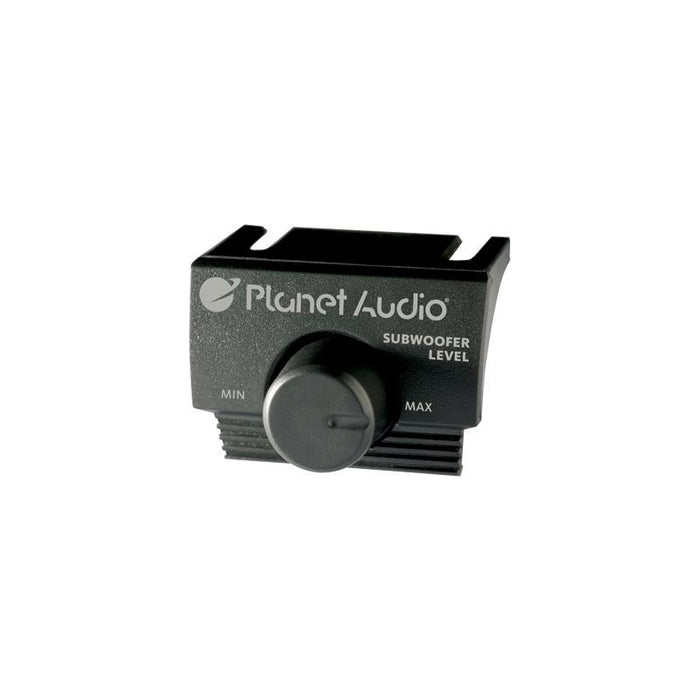

Remote subwoofer level control
Blue Illuminated Planet Audio Logo
Includes (1) One Class D amplifier, (1) One Remote subwoofer level control, (1) One Remote subwoofer control cable, (1) One DataLink cable (for strapping two identical Anarchy Class D amps together) and (4) Four Mounting screws
Authorized Dealer

MAX Power into 1 ohm: 5000 Watts x 1
RMS Power into 1 ohm: 3500 Watts x 1
RMS Power into 2 ohms: 2500 Watts x 1
RMS Power into 4 ohms: 1800 Watts x 1
Min. speaker impedance: 1 ohm mono
Input impedance: 10k ohm
Input sensitivity: Selectable 100mV-2V or 2V-8V
Frequency response: 20Hz-250Hz
Signal-to-noise ratio: 105dB
Crossover/filter range (low pass): 50Hz-150Hz
Crossover/filter range (subsonic): 15Hz-40Hz
Bass boost: Variable 0-+18dB
Phase shift: Selectable 0/180 degrees
Fuse rating: 200A
Dimensions: 10" x 2-9/16" x 18" (254mm x 65mm x 456mm)

(1) One Class D amplifier
(1) One Remote subwoofer level control
(1) One Remote subwoofer control cable
(1) One DataLink cable (for strapping two identical Anarchy Class D amps together)
(4) Four Mounting screws
