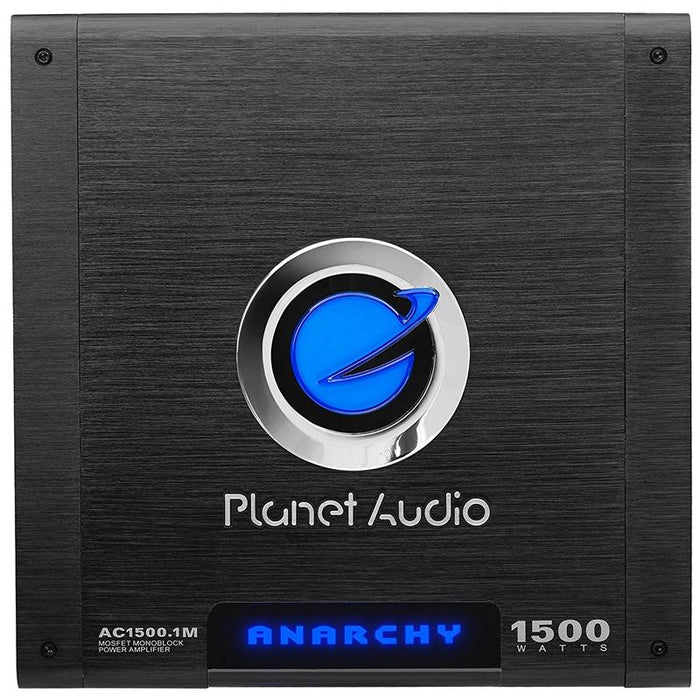

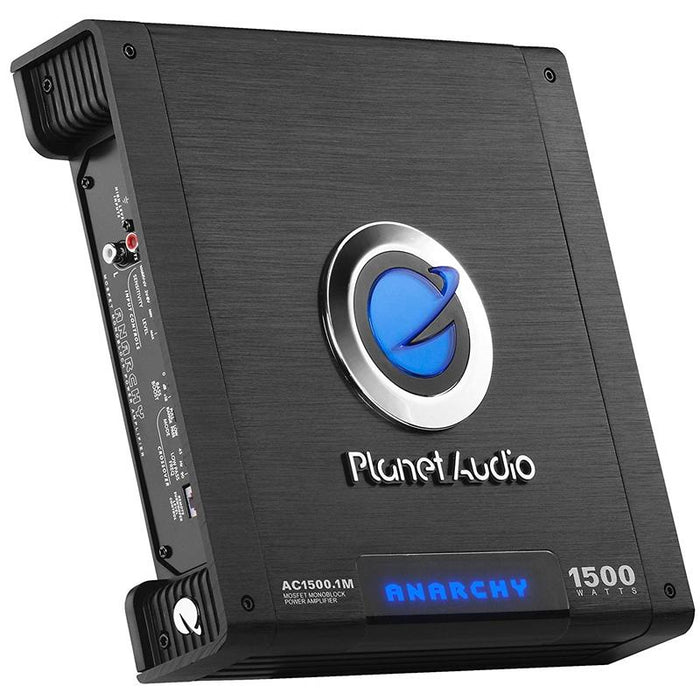

Planet Audio AC1500.1M Anarchy Class AB 1500 Watts Monoblock Amplifier

In Stock
SKU PLA-AC1500.1M
Checked Fast Shipping on all US Orders
Checked Contact Customer Service Representative for more info
Checked Buy Online, Free Local Pickup
Class A-B operation
MOSFET PWM (Pulse Width Modulated) Power Supply
2 Ohm stable stereo operation with output power increase
Thermal and speaker short protection
Soft turn-on circuit
Remote turn-on/turn-off circuit
Variable input gain control
Variable low pass crossover(s)
Fixed high pass crossover(s)
Varibale 0 to +18dB Bass Boost

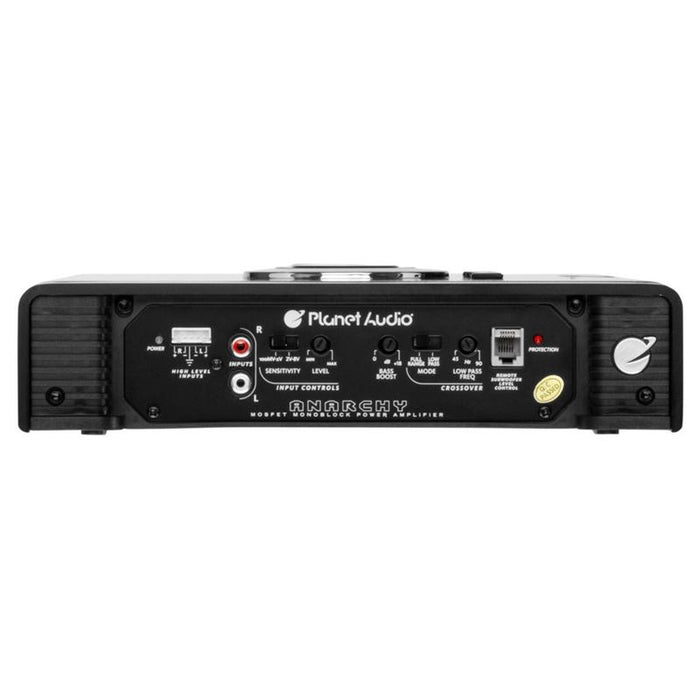

Chrome-plated RCA low level and high level inputs
LED power and protection indicators
Black anodized heatsink
Remote subwoofer level control
Authorized Dealer

About 2 Ohm Operation

Your Anarchy amplifier has been designed to operate efficiently at loads down to 2 Ohms. This means that you can install four 8 Ohms speakers per channel, when using parallel wiring.

Increasing the number of woofers per channel at low frequencies (below 100Hz) produces an acoustic coupling effect. This acoustic coupling effect increases your power output by about 3dB per speaker, or the equivalent of an additional 100W per speaker.

When operating at 2 Ohms, the amplifiers will increase their output power by approximately 50%. The current draw will also increase by about the same amount, so be sure you have enough current to run the amplifiers into a 2 Ohm load.

If you lack adequate current, your music reproduction will be distorted.

User's Manual.pdf

Max Power into 2 Ohms: 1500W x 1
RMS Power into 2 Ohms: 1100W x 1
Min. Speaker Impedance: 2 Ohm Mono
THD: 0.01%
Frequency Response: 20Hz-20kHz
Signal-to-Noise Ratio: 102dB
Channel Separation: 90dB
Damping Factor: 125+
Crossover Range (Low Pass): 45Hz-90Hz
Bass Boost: Variable 0-+18dB
Fuse Rating: 30A
Dimensions: 10" x 2-9/16" x 10" (254mm x 65mm x 253mm)

Anarchy Amplifier

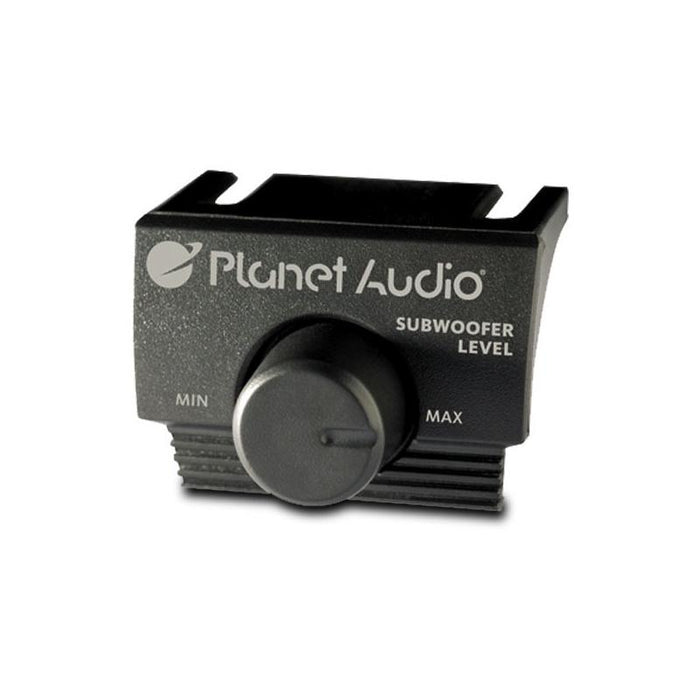

Remote Subwoofer Level Control
High Input Cable with Connector
4 x Mounting Screws
