Pioneer TS-WX1010A 10" 1100 Watts Max Power Sealed Subwoofer with Built-In Amp

Availability:
in stock, ready to be shipped
SKU PIO-TS-WX1010A

Pioneer TS-WX1010A 10" - 1100 W Max Power, Sealed Design - Active Pre-loaded Enclosure Subwoofer

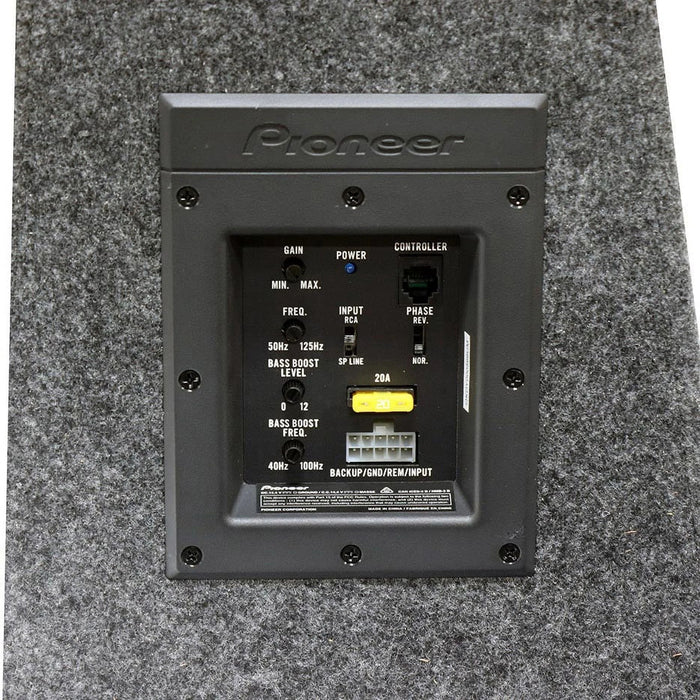

The Pioneer TS-WX1010A is a powerful, sealed pre-loaded subwoofer enclosure featuring a built-in 1100 W Max Class D amplifier. This 10" subwoofer, with its urethane surround and oversized magnet structure, is optimized for sealed enclosures, delivering high output and low distortion. User-adjustable controls include a low pass filter, phase control, variable bass boost, and input gain, allowing for precise sound customization. The innovative trapezoid-shaped enclosure enhances rigidity and reduces internal standing waves, offering flexible installation options in the cabin or trunk. Fully carpeted for durability and a non-slip surface, the TS-WX1010A can be positioned to fire rear, front, or upwards for optimal bass tuning. Additionally, the Pioneer Car Sound Fit app provides a virtual listening experience, showcasing the superior sound quality of Pioneer audio upgrades.

  • Built-in 1100 W Max Class D amplifier
  • Pre-loaded 10" Subwoofer with Urethane Surround and Powerful Motor Structure
  • Sealed Enclosure Design maximizes system linearity and deep bass output while increasing installation flexibility and vehicle applications

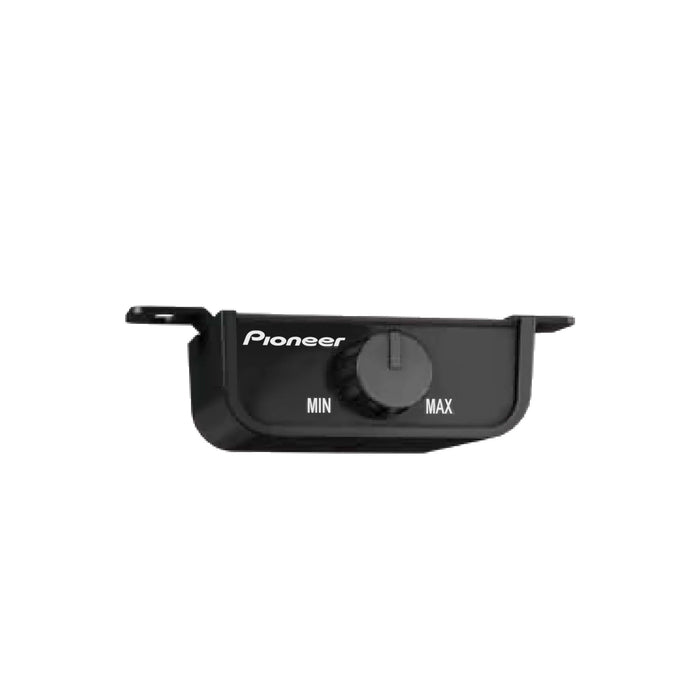

  • Included Wired Remote with Variable Bass Boost (0 to +12 dB, 40Hz to 100Hz)
  • Quick disconnect power and signal cables for easy installation or removal

Instruction Manual

SPECIFICATIONS:

  • System Type: Powered
  • Sensitivity (1W/1m): 112dB
  • Frequency Range: 20 Hz to 125 Hz
  • Warranty: 1 Year
  • Continuous Power handling (RMS) - Watts: 300 Watts
  • Maximum Peak Power Handling - Watts: 1100 Watts
  • Speaker Grill: Fully Covered Steel Mesh Grille
  • Bass Boost Frequency: 40Hz to 100Hz
  • Bass Boost Level: 0 to +12 dB
  • Built In Amp: Yes
  • Amp Max Power Output: 300 Watts
  • Amp RMS Output: 150 Watts
  • Input Level (@ Gain Max) RCA: 100mV+100mV/22kOhm
  • Input Level (@ Gain Max)  Speaker Line: 2V+3V/5kOhm
  • Power Source: DS 14.4 V
  • Amp Max Current Consumption: 13 A
  • Amp Grounding: Negative
  • Shape: Round
  • Size: 10"
  • Cone Material: Cellulose fiber
  • Center Cap Material: PP
  • Surround Material: Urethane
  • Surround Type: Rolled
  • Basket Material: Stamped Metal
  • Magnet Material: Ferrite
  • Magnet Weight: 29.6 oz
  • Voice Coil Type: Single Voice
  • Voice Coil Bobbin: Polyimide
  • Voice Coil wire: Copper
  • Damper: Aramid
  • Gasket: ABS
