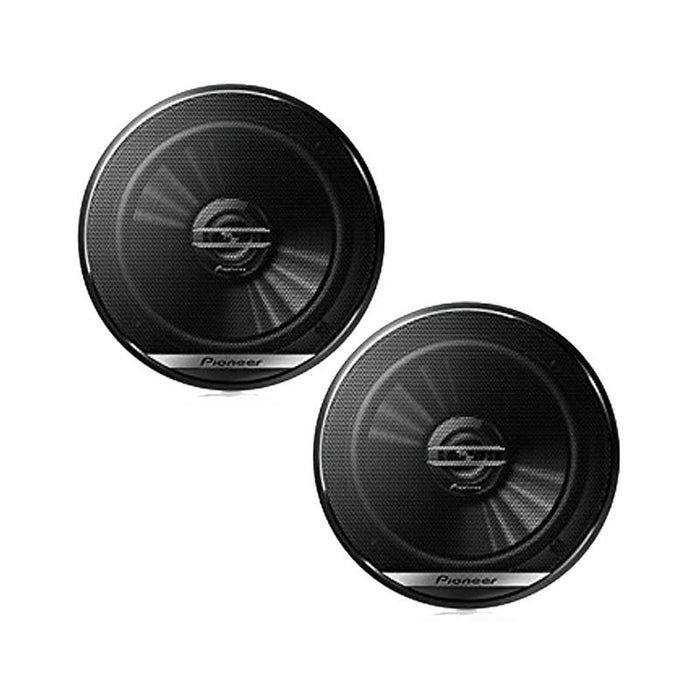

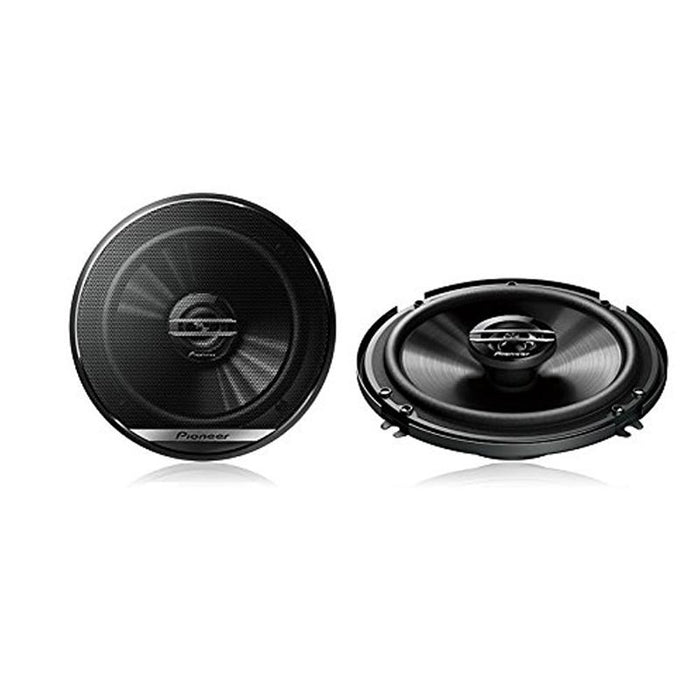

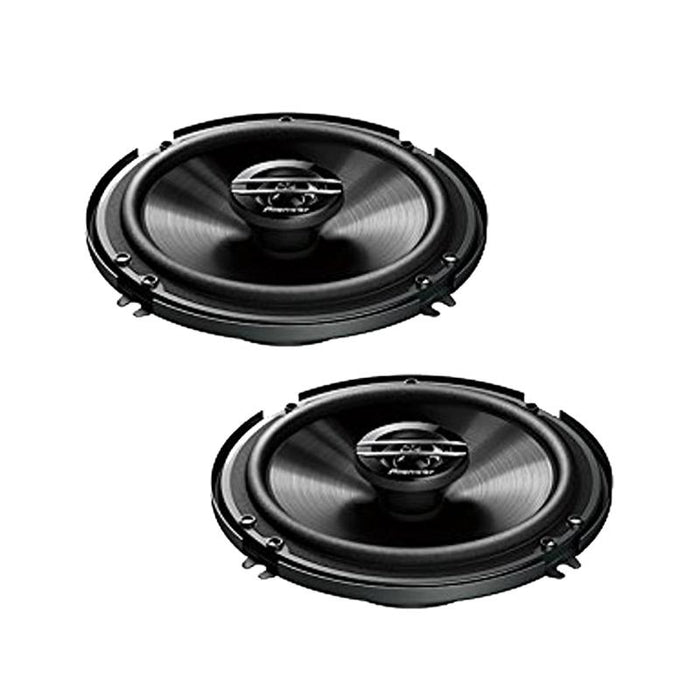

Pioneer TS-G1620F 6.5" 2-Way Coaxial Speakers 300W Max 40W Nom 6-1/2"

in stock, ready to be shipped
Pioneer TS-G1620F 6.5" 2-Way Coaxial Speakers 300W Max 40W Nom 6-1/2"

The two-way design handles 300 watts max. power (40 watts nominal) and features Pioneers
extremely strong and lightweight Injected Molded Polypropylene™ (IMPP) Composite Cone Woofer
for improved sensitivity and reduced distortion. The conex damper delivers higher power handling
and deeper bass, and the 1-3/16" Balanced dome tweeter reproduces highs with great performance
and musicality. Designed with a shallow mounting depth for easy install into a wide variety of
vehicles. Progressive Flex Suspension System supports the voice coil effectively by dampening
the large cone vibration and enhancing linearity of sound reproduction. Its soft part makes
movement smooth and reproduces clear sound and at excessive input, its hard part controls excessive
vibration and prevents movement error

Size: 6-1/2
Design: Coaxial 2-Way
Tweeter Design: 1-3/16" Balanced Dome
Tweeter Composition: Polyethylene Terephthalate (PET)
Woofer Composition: Injected Molded Polypropylene™ (IMPP) with MICA
Woofer Surround: Rubber Coated Cloth
Woofer Magnet Composition: Ferrite
Max. Music Power (Nominal): 300W (40W)
Frequency Response: 31 Hz to 18 kHz
Sensitivity (1W/1 m): 89 dB
Impedance: 4 Ohms
Mounting Depth: 1-3/4" (in.)
Cut-Out Dimensions: 5" (in.)
