Pioneer MVH-S322BT Single DIN Bluetooth Android Iphone Alexa Digital Media Receiver

Out of stock
Sold out

Pioneer MVH-S322BT Single DIN Bluetooth Android Iphone Alexa Digital Media Receiver

The MVH-S322BT is designed to accommodate the Smartphone lifestyle. When using Pioneer Smart Sync with Amazon Alexa it opens a new world for this Digital Media Receiver. Using this application, you broaden your access may it be wired or wireless. The receiver had a built-in amplifier and is equipped with three RCA pre-outs at 4V each. It has a 13-band customizable graphic equalizer and when utilizing Pioneer Smart Sync increases to 31 bands. The crossover network for this receiver is Standard Mode only. Features include Pioneer Smart Sync App with Amazon Alexa, wired Android™ Auto and Apple CarPlay®, Pandora®, and Spotify® via Bluetooth®, USB direct control for iPhone® and much more.


Pandora is personalized internet radio that is designed to help you discover new music that you'll love mixed in with music that you already know. With the MVH-S322BT, you can enjoy superior sound quality and full control of the Pandora experience in your car directly from the display of the receiver. You are able to give tracks ""thumbs up"" or ""thumbs down,"" bookmark a song so you can purchase it later, easily switch between your personalized radio stations, and view full track data and album art.

Stay safe and obey local hands-free laws with built-in Bluetooth (HFP). Easily pair a Bluetooth enabled phone to the MVH-S322BT without having to go through complicated settings. When a registered Bluetooth device is in proximity to the receiver, the auto connection function automatically pairs the two units.

Spotify gives you all the music you'll ever need. Find the songs you love instantly, or let Spotify play you something great. With support for Spotify, just connect your compatible smartphone to a Pioneer Car Stereo Receiver to fill your ride with everything from classic tracks to the latest hits. Premium subscription may apply.

Pioneer Smart Sync

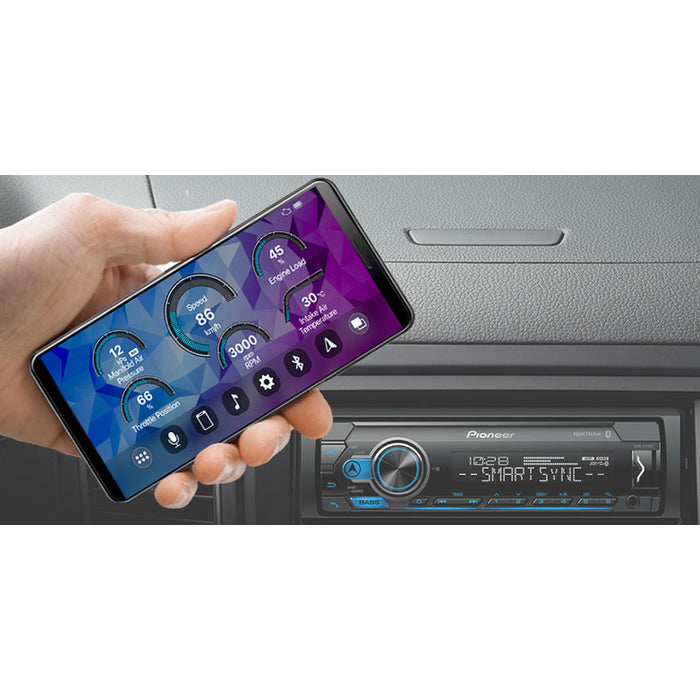

Integrate Your Smartphone with Your Receiver. Pioneer Smart Sync is a highly evolved app available for both iOS and Android OS that utilizes the power of a connected smartphone to expand the features and user interface of compatible Pioneer in-dash receivers. With support for either a Bluetooth® or USB connection, the link between your smartphone and the in-dash receiver can be either wired or wireless.

Smartphone Control
Access music on your smartphone directly from the Pioneer receiver. Search for Artist, Albums and Songs using Pioneer's intuitive interface. With Pioneer receivers you can also access and control select music and radio apps on your smartphone.

Android Music Support
Users of devices running Android OS version 4.0 or later can connect to the MVH-S322BT and listen to music stored on the device without the need for an app. The process is made possible using Media Transfer Protocol (MTP), which allows the receiver to recognize the Android smartphone as a music storage device. Operate basic functions like FF, REW, Play, Pause, Random Play, and Repeat and view Metadata information such as track, artist, and album name.

MIXTRAX® is an innovative Pioneer technology that creates a nonstop mix of your music library complete with a range of DJ-inspired effects. Drawing from Pioneer’s rich DJ heritage and our passion for music, MIXTRAX delivers a unique DJ infused listening experience to those in the car. MIXTRAX takes the music from an iPhone, or USB device, and plays it back with added transitions and effects, creating a virtual DJ inside the Pioneer receiver.

USB Auto Switch
The receiver also includes the USB Auto Switch feature so when the phone is connected via USB the listener has the option to choose whether the receiver uses the phone as a source, or just charges the device.

FLAC Codec Support
Pioneer Car Stereo Receivers upgrade in-car audio with amazing sound reproduction with their ability to play FLAC (Free Lossless Audio Codec) files, which are 50-60% smaller than WAV files yet retain the integrity of the original sound sources. FLAC playback at up to 44.1khz sampling frequency and 16-bit bitrate for files stored on a USB thumb drive.



  • CTA-2006: Yes


  • Continuous Power Output: 22 W x 4-Channel
  • Load Impedence Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
  • Max Power Output: 50 W x 4-ch 4 ohm / 50 W x 2-ch 4 ohm + 70 W X 1-ch (subwoofer) 2 Ohm
  • RCA Preamp Outputs: 4-ch
  • RCA Preout Voltage: 4V
  • RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm


  • Back Light: LED
  • Brightness Control: Yes
  • Color Customization: Fixed
  • Device (Non-DIN/Modular Unit): 1-DIN
  • Device Display: VA LCD (2-Line)
  • Dimmer: Timer Controlled, Manual


  • Advanced Audio Distribution Profile (A2DP): Yes
  • AVRCP: 1.6
  • Built-in Bluetooth®: Yes
  • Dual Phone Connection: Yes
  • Hands Free Version: 1.6
  • Hands-Free: Yes
  • Microphone Included: Included
  • Phone Registation: 5-phone
  • Secure Simple Pairing (SSP): Yes
  • Serial Port Profile (SPP): Yes
  • Sound Retriever Air: Mode 1/Mode 2/Off


  • Best Station Memory: Yes
  • Local Seek tuning: Yes
  • Presets: 18FM 12AM
  • PS (Preset Scan): Hide or display radio station name
  • RDS: Yes


  • Amazon Alexa: Paired with Pioneer Smart Sync
  • Mobile Operating System: Android / Apple iOS
  • Music Playback (MTP): Yes
  • Pandora®: Source through iPhone/Android
  • Pioneer App Compatibility: Pioneer Smart Sync Android, Pioneer Smart Sync iPhone
  • Siri® Eyes Free (VR) (Internet Required): iPhone Only
  • Spotify: Streaming audio through iPhone/Android via Bluetooth or AUX input
  • Voice Control: Yes


  • Audio Playback via USB: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / FLAC Audio Playback (Hi-Res) / WAV Audio Playback (Hi-Res)


  • Advanced Sound Retriever: Mode-1/Mode-2/Off
  • Auto EQ (CD-MC20 Microphone sold separately): Yes
  • Balance: Yes
  • Built-in Amplifier: MOSFET 50 W x 4
  • Crossover Standard Mode: HPF/LPF
  • Customizable Graphic Equalizer: 13 Band, 31 Band with Pioneer Smart Sync app
  • DA Converter: 24 Bit
  • Digital Signal Processor: Built In
  • Dynamic Bass Enhancer: Off/Low/High
  • Easy EQ (EEQ) Preset Equalizer: Yes
  • Fade: Yes
  • Listening Position Selector: Yes
  • Loudness: High/Mid/Low/Off
  • MIXTRAX®: Yes
  • Source Level Adjuster: Yes
  • Speaker Output: 4-ch
  • Spectrum Analyzer: Yes
  • Subwoofer Control: Yes
  • Time Alignment: Manual


  • RCA Video Output: Yes
  • USB: Single Rear Type-A (5V, 1-1/2 A)
  • USB Direct Control for iPhone®: 5s and newer


  • Input 1: AUX (Minijack)


  • Detachable Face Security: Full
  • Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
  • Music Browser: USB / With Smart Sync App
  • Remote Control: Optional (CXE5116), Wireless
  • Rotary Volume Control: Yes
  • Steering Wheel Control Ready (Adapter Sold Separately): Yes

  • Digital receiver w/ fixed 6.8" touchscreen monitor (10A fuse)
  • Wiring harness
  • Remote control (CXE9605)
  • CR2025 3V lithium battery (installed in remote)
  • 1.5m USB Extension Cable Type A(M) to Type A(F)
  • Microphone w/ visor-bracket (attached 10' cable terminated by a right-angled 2.5mm connector)
  • 6 Installation Screws
  • Installation Manual
  • Quick Start Guide
  • 1 year warranty sheet
