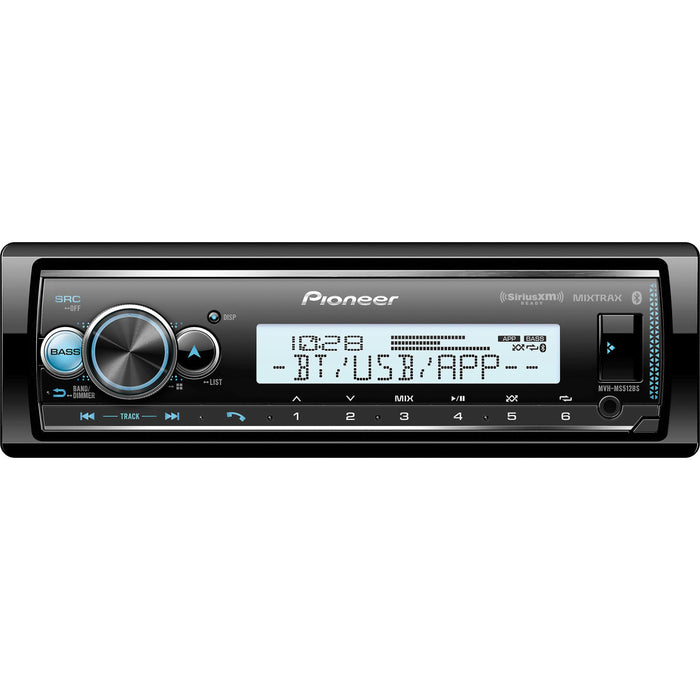

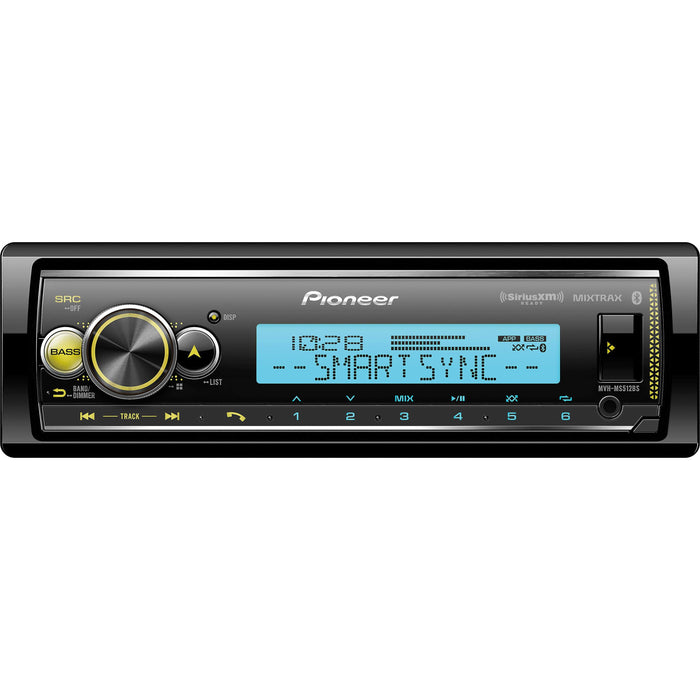

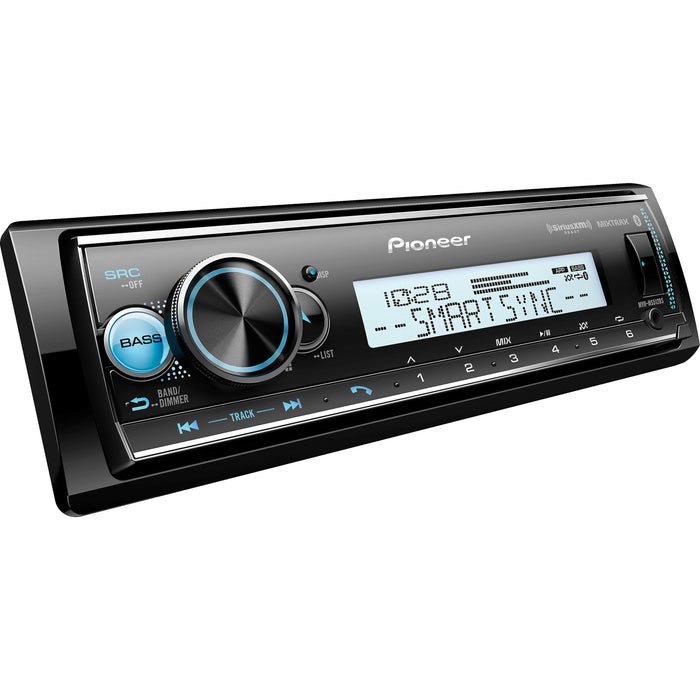

Pioneer MVH-MS512BS Marine Digital Media receiver with Bluetooth and Alexa Built-in

Availability:
Out of stock
SKU PIO-MVH-MS512BS
Sold out

Pioneer MVH-MS512BS Marine Digital Media receiver with Bluetooth and Alexa Built-in

  • Marine Digital Media Receiver with AM/FM Tuner (Does Not Play CDs)
  • Built-in Bluetooth for hands-free calls and music streaming
  • 1.5-amp quick-charging for Android devices
  • Plays FLAC (96kHz/24bit), MP3, WMA, and WAV Music Files
  • Conformal-Coated Circuit Board

The MVH-MS512BS is more than just a digital marine receiver. It is a smart device that lets you enjoy music and voice control on your boat with Amazon Alexa. You can also use the Pioneer Smart Sync app to customize your sound and access various functions with your smartphone. Whether you want to stream music from your Bluetooth-enabled devices, listen to your favorite radio stations with SiriusXM-Ready, or connect your Android or iPhone via USB, the MVH-MS512BS has you covered. It also has enhanced audio functions, such as a 13-band graphic equalizer, advanced sound retriever, and MIXTRAX technology, to create a rich and immersive sound experience.

The MVH-MS512BS is designed for marine use with a conformal coating that protects the circuit board from corrosion. It also has a high-visibility outdoor LCD display that shows song information and Alexa notifications. The MVH-MS512BS is the perfect companion for your boating adventures.

Specs:

CTA-2006: Yes
Ingress Protection: Conformal Coating

Continuous Power Output: 22 W x 4-Channel
Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
Max Power Output: 50 W x 4-ch 4 ohm / 50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm
RCA Preamp Outputs: 6-ch
RCA Pre-out: 4V
RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm

Back Light: LED
Brightness Control: Yes
Color Customization: 210000 Colors, dual zone
Device (Non-DIN/Modular Unit): 1-DIN
Device Display: VA LCD (2-Line)
Dimmer: Automatic with vehicle illumination, Timer Controlled, Manual

Advanced Audio Distribution Profile (A2DP): Yes
AVRCP: 1.6
Built-in Bluetooth: Yes
Dual Phone Connection: Yes
Hands Free Version: 1.6
Hands-Free: Yes
Microphone Included: Included
Phone Registration: 5-phone
Secure Simple Pairing (SSP): Yes
Serial Port Profile (SPP): Yes
Sound Retriever Air: Mode 1/Mode 2/Off

Best Station Memory: Yes
Local Seek tuning: Yes
Presets: 18 FM, 6 AM
RDS: Yes
SiriusXM-Ready™ (Tuner Sold Separately): Yes

Amazon Alexa: Paired with Pioneer Smart Sync
Mobile Operating System: Android / Apple iOS
Music Playback (MTP): Yes
Pandora: Source through iPhone/Android
Pioneer App Compatibility: Pioneer Smart Sync Android, Pioneer Smart Sync iPhone
Siri® Eyes Free (VR) (Internet Required): iPhone Only
Spotify: Streaming audio through iPhone/Android via Bluetooth or AUX input
Voice Control: Yes

Audio Playback via USB: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / FLAC Audio Playback (Hi-Res) / WAV Audio Playback (Hi-Res)

Advanced Sound Retriever: Mode-1/Mode-2/Off
Balance: Yes
Built-in Amplifier: MOSFET 50 W x 4
Crossover Standard Mode: HPF/LPF
Customizable Graphic Equalizer: 13 Band, 31 Band with Pioneer Smart Sync app
DA Converter: 24 Bit
Digital Signal Processor: Built In
Dynamic Bass Enhancer: Off/Low/High
Easy EQ (EEQ) Preset Equalizer: Yes
Fade: Yes
Listening Position Selector: Yes
Loudness: High/Mid/Low/Off
MIXTRAX: Yes
Source Level Adjuster: Yes
Speaker Output: 4-ch
Spectrum Analyzer: Yes
Subwoofer Control: Yes
Time Alignment: Manual

OEM Integration: iDatalink® Maestro™ - RR Using W/R input for SWC
USB: Front Type-A (5V, 1-1/2 A)
USB Direct Control for iPhone: 5s and newer

Input 1: AUX (Minijack)

Detachable Face Security: Full
Multi-Language Display: English, French, Spanish
Music Browser: USB
Remote Control: Optional
Rotary Volume Control: Yes
Steering Wheel Control Ready (Adapter Sold Separately): Yes

In the box:

  • Marine digital media receiver (10A fuse)
  • Face (attached)
  • Trim-ring(installed)
  • Sleeve (installed)
  • Wiring harness
  • Microphone w/ removable visor clip (attached 9.5' cable terminated by a right-angle male mono 2.5mm connector)
  • Two-sided tape
  • 2 Removal tools
  • Face-fixing screw
  • Face-fixing bracket
  • Bracket screw
  • Owner's Manual (En/Fr/Sp)
  • Limited Warranty Information (US/CA)
