Power source: 14.4VDC (10.8V to 15.1V allowable)
Grounding system: Negative type
Current consumption: 55A (at continuous power, 4 ohm)
Average current consumption: 6A (4 ohm)
Fuse: 30A x 3
Dimensions (W x H x D): 315mm x 60mm x 200mm (1ft x 2-3/8" x 7-7/8")
Weight: 3.2kg (Leads for wiring not included)
Maximum power output: 150W x 4 + 700W (4 ohm); 200W x 4 + 1200W (2 ohm) (2000W TOTAL)
Continuous power output: 75W x 4 + 350W (at 14.4V, 4 ohm); 200W x 2 + 350W (at 14.4V, 4 ohm); 100W x 4 + 600W (at 14.4V, 2 ohm)
Load impedance: 4 ohm (2 ohm to 8 ohm allowable)
Frequency response: A/B CH: 10Hz to 50kHz ; SUB CH: 10Hz to 500Hz
Signal-to-noise ratio: 94dB (IEC-A network)
Distortion: 0.05% (10W, 1kHz)
Low pass filter:
(A/B CH)
Cut off frequency: 40Hz to 500Hz
Cur off slope: -12dB/oct
(SW)
Cut off frequency: 40Hz to 500Hz
Cut off slope: -12dB/oct, -24dB/oct
High pass filter:
(A/B CH)
Cut off frequency: 40Hz to 500Hz
Cut off slope: -12dB/oct
Bass boost:
(SW)
Frequency: 50Hz
Level: 0dB to 18dB
Gain control:
RCA: 200mV to 6.5V
Speaker: 0.8V to 16V
Maximum input level/impedance:
RCA: 6.5V/25kohm
Speaker: 16V/12kohm
Power output: 75W RMS x 4 + 350W x 1 RMS (4ohm and <1% THD +N)
S/N ratio: 75dBA (reference: 1W into 4 ohm)

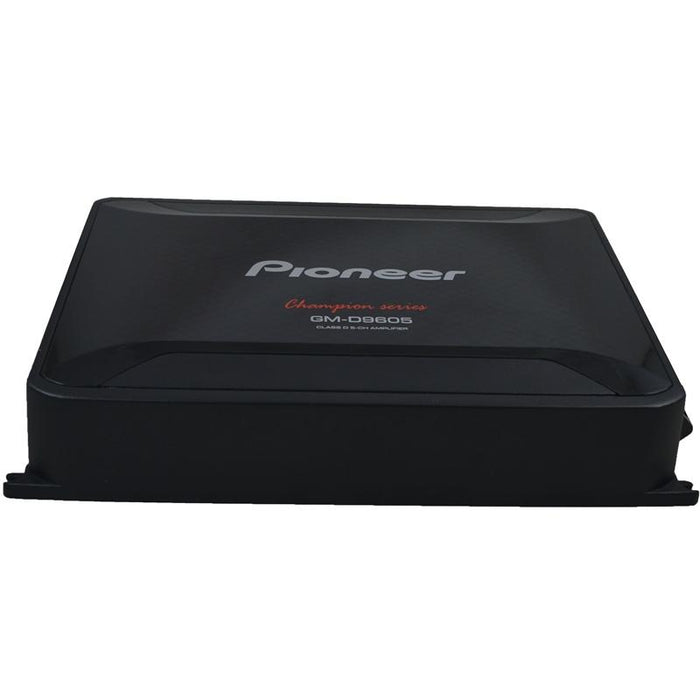

5-Channel amplifier
Remote bass boost control
19' remote cable
8" speaker-level input adapter
3mm allen wrench
1.5mm allen wrench
Four self-tapping screws
Two self-tapping screws
