Pioneer DMH-WT8600NEX 10.1" Digital Multimedia Receiver Bluetooth Apple CarPlay Android Auto AM/FM Tuner

Availability:
Out of stock
SKU PIO-DMH-WT8600NEX
Sold out

Pioneer DMH-WT8600NEX 10.1" Digital Multimedia Receiver Bluetooth Apple CarPlay Android Auto AM/FM Tuner

The DMH-WT8600NEX features a large 10.1" HD resolution capacitive touchscreen with a unique mounting solution that floats the screen in front of the radio location. With the latest connectivity solutions designed especially for today’s smartphone driven lifestyle, the Pioneer CarAVAssist App allows you to customize your receiver’s home screen, register your favorite sports teams to receive real-time game updates, and easily perform OTA Firmware updates. Features include built-in Bluetooth®, Amazon Alexa Built-in, Android Auto™, Apple CarPlay®, SiriusXM-Ready™ and built-in HD Radio

Features:

Plenty of screen adjustability

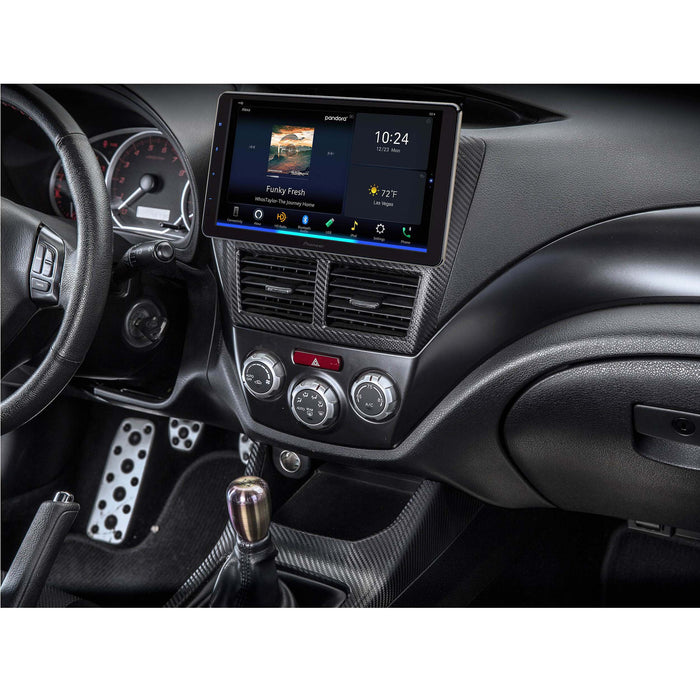

Pioneer gives you plenty of adjustment options to get the screen where you need it. When you're installing the floating display, you can move it up and down, left and right, and forward and back, adjusting the screen angle until it's a perfect match.

Apple CarPlay™, Android Auto™, and Amazon Alexa
Pioneer offers you both wireless and wired connectivity to these interfaces with this receiver. Either way, you'll enjoy all the features of these platforms.

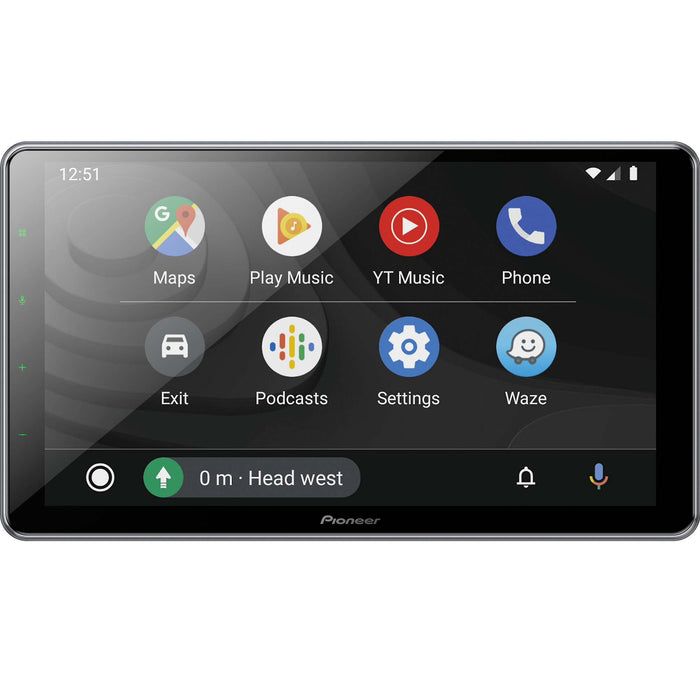

Android Auto: Android Auto integrates the Android platform into your driving experience in a non-distracting way. You'll have voice control access to Google Maps, weather, music, your phone, text messages, plus easy access to many of your favorite apps. Get more info at www.android.com/auto.

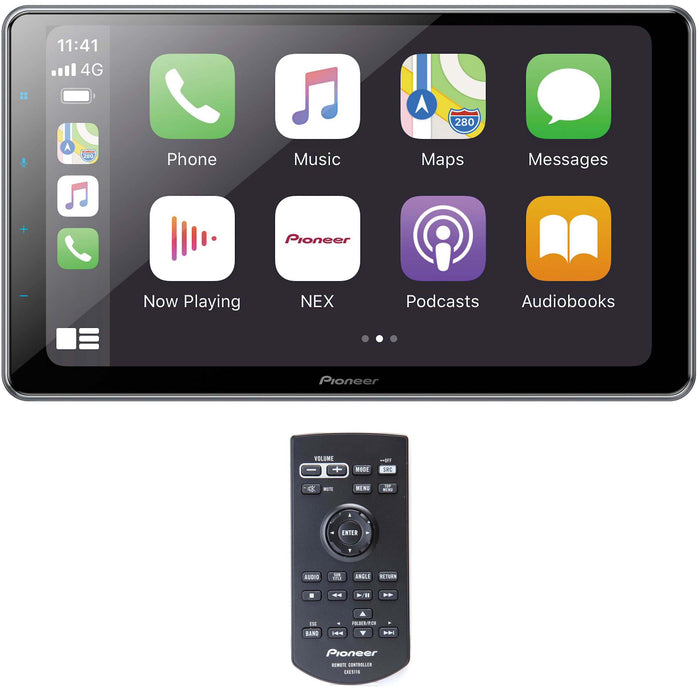

Apple CarPlay: CarPlay integrates your iPhone® into the driving experience, putting iPhone content at the driver's voice command with minimal distraction. That means easy access to your music library, your phone, messages, navigation, and many third-party streaming music apps, too. Learn more at www.apple.com/ios/carplay.

Amazon Alexa: Talk directly to Alexa through the receiver. You can check the weather, play music, control home devices — everything you like about Alexa is at your command.

Bluetooth® for hands-free calling and streaming
Bluetooth's wireless connection with your phone makes calling simple so you can keep your hands on the wheel and eyes on the road — you'll hear whomever you're calling on your car's audio system and they'll hear you loudly and clearly, courtesy of Pioneer's included external microphone. Bluetooth also enables wireless streaming for music, podcasts, and audiobooks too.

Built-in HD Radio™, and satellite radio compatibility
The DMH-WT8600NEX also features an HD Radio tuner. You'll enjoy much-improved AM/FM sound quality when you're tuned to a local participating station, and there's no subscription required — just tune it in like a regular radio station. If you're hankering for even more entertainment, step up to the incredible variety of satellite radio programming by adding a SiriusXM tuner.

Play high-res music files
Get the most out of your library and load your high-res FLAC and DSD music files onto a thumb drive, then plug it in to the rear USB input for outstanding sound. A rear aux input gives you the option of playing from an older portable music player as well

Sound adjustments
Use the 13-band graphic equalizer and other sound tools to maximize the audio signal sent to the powerful built-in MOSFET amplifier. Three sets of preamp outputs deliver an ultra-clean signal for adding additional amps for more power. You can switch the front, rear, and subwoofer outputs to 3-way mode with Lows, Mids, and Highs.

Rear-view with selectable parking lines
With two camera inputs, you can also install front- and rear-view cameras and use the receiver's built-in parking guides to back up safely in any crowded lot. The touchscreen lets you adjust parking lines with ease.

iDatalink Maestro lets you keep your factory extras
Pioneer offers compatibility you won't find in many other aftermarket radios, thanks to the iDatalink Maestro module (not included). In a wide selection of vehicles, this module lets you keep factory features that you'd otherwise lose when you install a new radio. Once you've identified your vehicle, you'll see the iDatalink module offered on the way to the Shopping Cart if it's compatible.

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.

iPod/smartphone note: If you're going to use your iPod or smartphone with this receiver, be sure to check "Details" for compatibility information.

Specification:

Expandability

  • AUX Input: Mini (rear)
  • Audio/video Input: Mini (rear), Micro-HDMI (rear)
  • USB Input: Rear (USB-C)
  • USB Port Power    3A
  • Backup Camera Input: Yes
  • Second Camera Input: Yes
  • CarPlay: Wireless
  • Android Auto: Wireless
  • Siri Control: Yes
  • Alexa Voice Control: Y
  • Android Control: Yes
  • Memory Card Slot: USB memory
  • Bluetooth Compatible: Built-in
  • Satellite Radio Ready: SiriusXM 3.0
  • HD Radio: Built-in
  • Navigation: Optional

iPod Compatibility

  • Full size: No
  • Nano: No
  • Touch: No
  • iPhone: 5S and up

General

  • RMS Power (CTA-2006): 14 watts
  • RMS Power (Manufacturer): 22 watts
  • Peak Output: 50 watts
  • RMS Power Bandwidth: 20-20kHz
  • Preamp Outputs: 6-channel
  • Sub Preamp Outputs: Yes
  • Switchable Rear Preamp Outputs: No
  • Video Screen: Yes
  • Navigation App Compatible (iOS): Apple, Google, Waze
  • Navigation App Compatible (Android): Google, Waze
  • Preamp Voltage: 4 volts
  • Screen Size: 10.1
  • Display Color
  • Key Button Color: Variable
  • EQ Bands: 13
  • Wireless Remote: Yes
  • Steering Wheel Control Compatible: Adapter required

Tuner

  • FM Sensitivity: 12 dBf
  • European Tuning: No
  • Seek/Scan: Seek
  • Radio Data System: Yes

File Playback

  • Music File Playback: MP3,WMA,AAC,FLAC,DSD,WAV
  • High-res Playback: FLAC/WAV (192kHz), DSD (5.6MHz)
  • Second Camera Input Lane Watch: Y

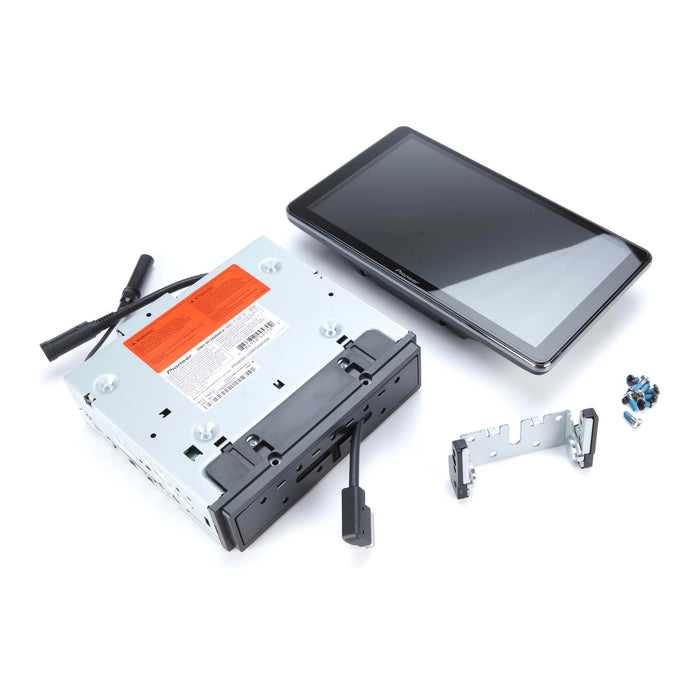

  • Touchscreen monitor (rear cover pre-installed)
  • Source unit (10A fuse)
  • Wiring harness
  • Preout/AV harness
  • 58" USB-C extension cable
  • USB-C to USB-A adapter

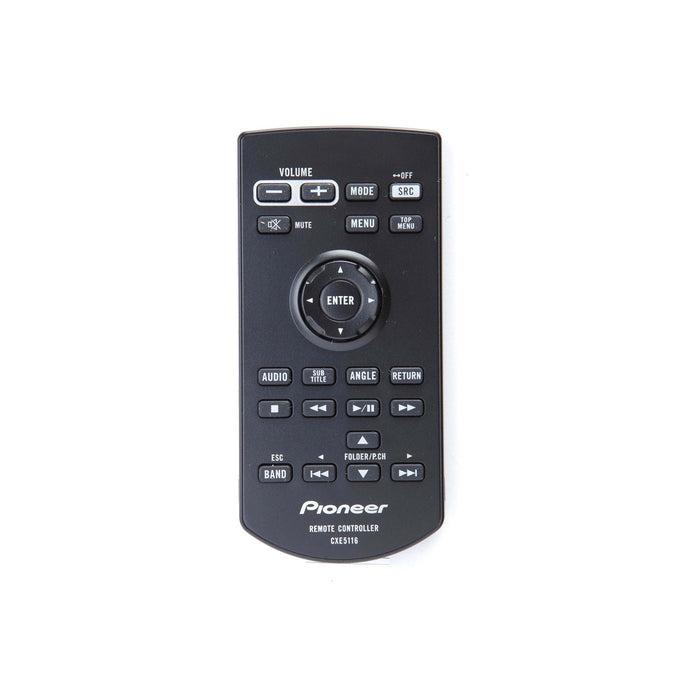

  • Remote control (CXE5116)
  • CR2025 (3)V battery (pre-installed in remote)
  • Microphone w/ bracket (attached 10' cable terminated by a right-angle 2.5mm connector)
  • GPS antenna (attached 11.5' cable)
  • Self-adhesive square
  • (3) Self-adhesive clips
  • Two-sided tape
  • Monitor bracket
  • 24 Various Installation Screws
  • Quick Start Guide
  • Installation Manual
  • "About Alexa Built-In" note
  • Warranty Information
  • "Caution" note
  • "Attaching" The Monitor Cover" note
