Pioneer DMH-WT7600NEX 9" Touchscreen Digital Multi Media Receiver with Apple Carplay Android Auto

Availability:
Low stock
SKU PIO-DMH-WT7600NEX
Sale Sale

Pioneer DMH-WT7600NEX 9" Touchscreen Digital Multi Media Receiver with Apple Carplay Android Auto

Pioneer's NEX or Networked Entertainment eXperience line of receivers features an innovative and powerful new user interface that is responsive and highly customizable. The NEX models are designed especially for today's smartphone driven lifestyle.

  • 9 inch Modular Digital Media Receiver with Capacitive Touchscreen
  • Apple Carplay and Android Auto
  • Built-in Bluetooth
  • Built-in HD Radio
  • WebLink car connectivity solution offers the fastest and easiest way for drivers to elevate their in-vehicle, smartphone experience
  • Dual Camera Ready for Rear and Front Cameras
  • Siri and Google Assistant
  • Dual-zone capable
  • 3 Sets of Hi-Volt RCA Preouts (4V) for System Expansion

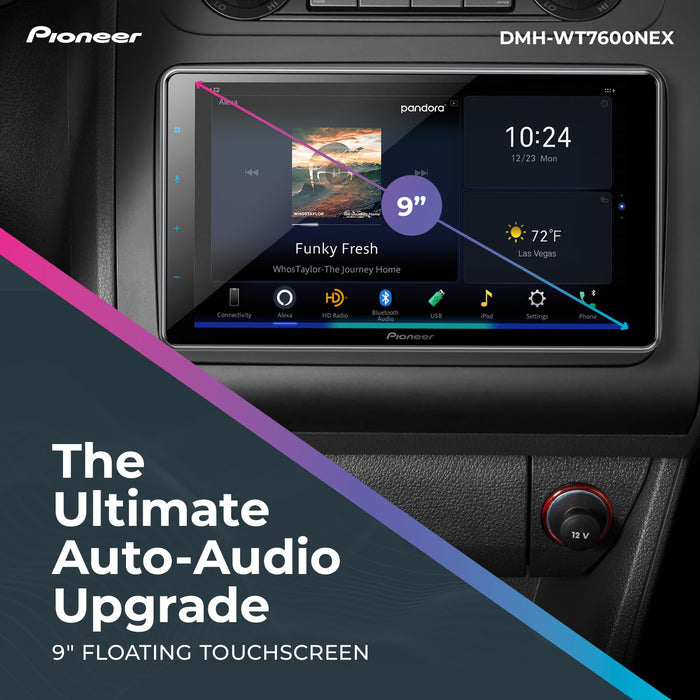

The DMH-WT7600NEX is a multimedia digital media receiver that combines cutting-edge technology and sleek design. It features a 9-inch floating display that can be adjusted to fit different dashboards and viewing angles. It also supports Amazon Alexa, Android Auto, Apple CarPlay, and Bluetooth connectivity, so you can enjoy hands-free voice control and access your favorite apps and music on the go. Whether you want to ask Alexa for directions, stream songs from Spotify, or make calls with Siri, the DMH-WT7600NEX lets you do it all with ease and convenience.

But that’s not all. The DMH-WT7600NEX also offers a range of advanced audio functions, such as a 13-band graphic equalizer, advanced sound retriever, and MIXTRAX technology, to create a rich and immersive sound experience. You can also customize your sound settings with the Pioneer Smart Sync app, which lets you adjust various functions with your smartphone. Plus, the DMH-WT7600NEX is designed for durability and performance, with a conformal coating that protects the circuit board from corrosion. It also supports over-the-air firmware updates via the CarAVAssist app, so you can always keep your device up to date with the latest features.

Specs:

CTA-2006: Yes
Hi-Res Certified: Yes

Continuous Power Output: 22 W x 4-Channel
Max Power Output: 50 W x 4-ch 4 ohm / 50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm
RCA Preamp Outputs: 6-Channel
RCA Pre-out: 4V
RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm

Back Light: LED
Brightness Control: Yes
Color Customization: 5 display colors, 112 key colors
Device (Non-DIN/Modular Unit): 1-DIN, Floating
Dimmer: Automatic with vehicle illumination, Timer Controlled, Manual
Display Off Mode: Yes
Home Screen Customization: Yes
Monitor Mechanism: Adjustable, Floating
Resolution: HD (1280 x 720)
Screen Size/Aspect Ratio: 9"/16:9
Touch Screen: Capacitive

Advanced Audio Distribution Profile (A2DP): Yes
AVRCP: 1.6
Built-in Bluetooth®: Yes
Dual Phone Connection: Yes
Hands-Free: Yes
Microphone Included: Included
Secure Simple Pairing (SSP): Yes
Serial Port Profile (SPP): Yes

Best Station Memory: Yes
HD Radio™: Built In, Aritist experience, Multicasting
Hybrid Radio: Yes
Local Seek tuning: Yes
Presets: 18 FM, 6 AM
RDS: Yes
SiriusXM-Ready™ (Tuner Sold Separately): Yes

Amazon Alexa: Built In
Android Auto™: Wireless Connection or Wired USB Connection
Apple® CarPlay: Wireless Connection or Wired USB Connection
Gracenote Sports: Yes
Mobile Operating System: Android / Apple iOS
Music Playback (MTP): Yes
Pandora®: With Apple CarPlay or Android Auto
Pioneer App Compatibility: CarAVAssist Android, CarAVAssist iPhone
Spotify: With Apple CarPlay or Android Auto
Voice Control: Yes
WiFi: Tethering, WiFi Hotspot

Audio Playback via USB: MP3 Audio Playback / WMA Audio Playback / WAV Audio Playback (Hi-Res) / AAC Audio Playback / FLAC Audio / Playback (Hi-Res) / DSD Audio Playback (Hi-Res)
Audio Video Playback via USB: .avi / .mpg/mpeg / .divx / .mp4 / .3gp / .mkv / .flv / .wmv/.asf / .m4v / H.263 / H.264 / .ts/.m2ts/.mts
Image Display via USB: BMP / JPEG / PNG

Bass Boost: Yes
Built-in Amplifier: MOSFET 50 W x 4
Crossover Network Mode: HPF/Band Pass/LPF
Crossover Standard Mode: HPF/LPF
Customizable Graphic Equalizer: 13 Band
DA Converter: 24 Bit
Digital Signal Processor: Built-In
Dynamic Bass Enhancer: Off/Low/High
Easy EQ (EEQ) Preset Equalizer: Yes
Listening Position Selector: Yes
Loudness: High/Mid/Low/Off
Speaker Output: 4-ch
Spectrum Analyzer: Yes
Subwoofer Control: Yes
Time Alignment: Manual

OEM Integration: iDatalink® Maestro™ - RR, iDatalink® Maestro™ - RR2, Metra Axxess
OTA Update Compatible: Yes
Parking Assist Lines: Yes
RCA Video Output: Yes
USB: Rear, Type-C (5 V, 3.0 Amp)
USB Direct Control for iPhone®: 5s and newer

Input 1: Backup Camera Dedicated
Input 2: AUX (Minijack)
Input 3: A/V or 2nd Camera
Input 4: HDMI Micro (Type D)

Detachable Face Security: Fixed
Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
GPS Antenna: Yes
Remote Control: Included
Steering Wheel Control Ready (Adapter Sold Separately): Yes

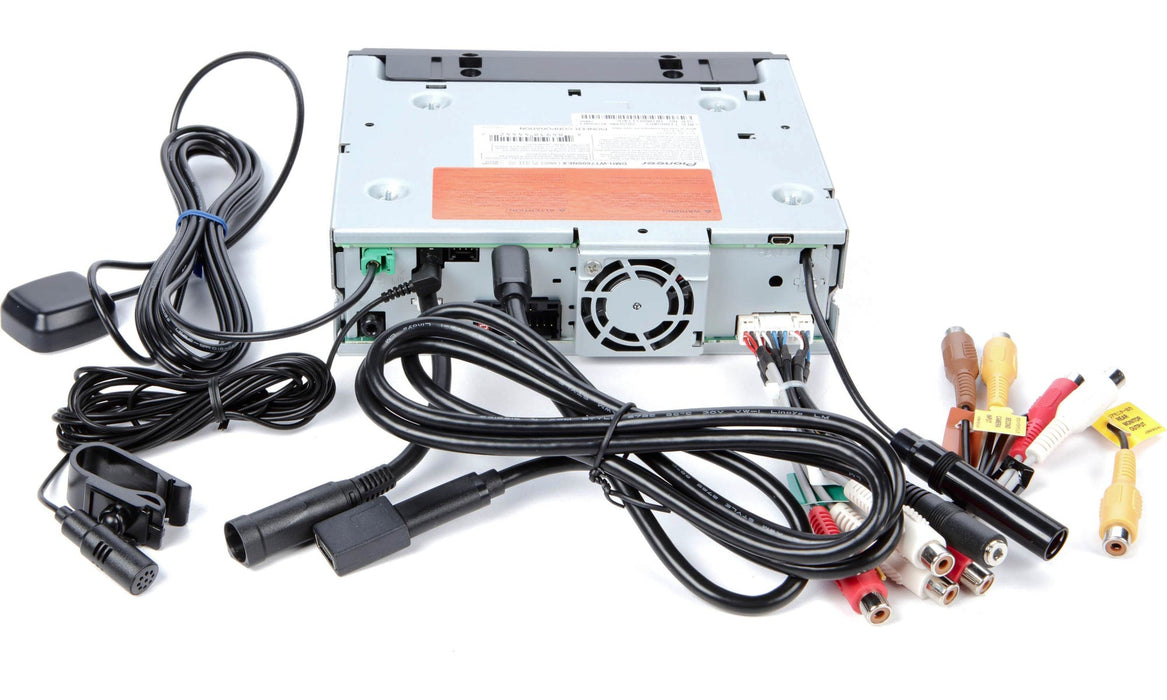

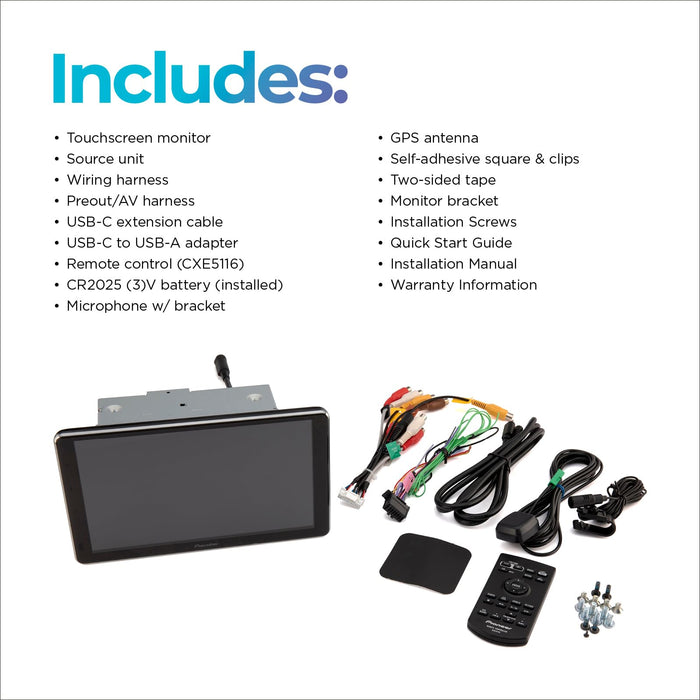

in the box:

  • Touchscreen monitor (rear cover pre-installed)
  • Source unit (10A fuse)
  • Wiring harness
  • Preout/AV harness
  • 58" USB-C extension cable
  • USB-C to USB-A adapter
  • Remote control (CXE5116)
  • CR2025 (3)V battery (pre-installed in remote)
  • Microphone w/ bracket (attached 10' cable terminated by a right-angle 2.5mm connector)
  • GPS antenna (attached 11.5' cable)
  • Self-adhesive square
  • (3) Self-adhesive clips
  • Two-sided tape
  • Monitor bracket
  • 24 Various Installation Screws
  • Quick Start Guide
  • Installation Manual
  • "About Alexa Built-In" note
  • Warranty Information
  • "Caution" note
  • "Attaching" The Monitor Cover" note
