Pioneer DMH-C5500NEX 8" Digital Multimedia Receiver with Wireless Apple CarPlay Android Auto and Bluetooth

Low stock

Pioneer DMH-C5500NEX - 8" - Amazon Alexa, Android Auto™, Apple CarPlay™, Bluetooth®, HD Radio™, SiriusXM-Ready™ - Multimedia Digital Media Receiver

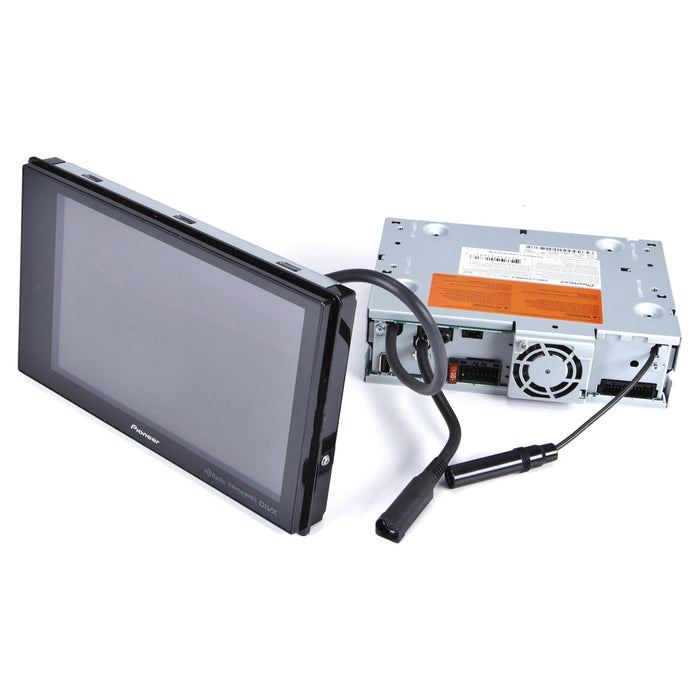

The Pioneer DMH-C5500NEX is a modular solution that combines a stunning 8-inch touchscreen display with a powerful sub-chassis that contains the brains and brawn of the system. Whether you want to enjoy Apple CarPlay, Android Auto, Amazon Alexa, Bluetooth, HD Radio, SiriusXM, or more, the DMH-C5500NEX has you covered.

  • Apple CarPlay Compatible
  • Android Auto Compatible
  • Amazon Alexa Built-in when Paired with Pioneer Vozsis App
  • Spotify®, Works with Pandora®, SiriusXM Ready
  • HD Radio™
  • Selectable Parking Assist Guidelines

The DMH-C5500NEX also offers a range of sound quality features to enhance your listening experiences, such as built-in Auto EQ, Time Alignment, 13-Band Graphic Equalizer, and high-res FLAC playback. You can also keep your factory features and expand your level of in-vehicle connectivity with Pioneer NEX and iDatalink Maestro RR. With the DMH-C5500NEX, you can enjoy the best of both worlds: a sleek and stylish display that matches your dash, and a powerful and versatile receiver that delivers amazing performance and functionality.


CTA-2006: Yes

Continuous Power Output: 22 W x 4-Channel
Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
Max Power Output: 50 W x 4-ch 4 ohm / 50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm
RCA Preamp Outputs: 6-ch
RCA Pre-out: 4V
RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm

Back Light: LED
Brightness Control: Yes
Color Customization: 5 display colors, 112 key colors
Device (Non-DIN/Modular Unit): Modular, Non-DIN
Dimmer: Automatic with vehicle illumination, Timer Controlled, Manual
Display Off Mode: Yes
Home Screen Customization: Yes
Monitor Mechanism: Fixed
Resolution: WVGA (800 x 480)
Screen Size/Aspect Ratio: 8"/16:9
Touch Screen: Capacitive

Advanced Audio Distribution Profile (A2DP): Yes
AVRCP: 1.6
Built-in Bluetooth®: Yes
Dual Phone Connection: Yes
Hands-Free: Yes
Microphone Included: Included
Secure Simple Pairing (SSP): Yes
Serial Port Profile (SPP): Yes
Sound Retriever Air: Mode 1/Mode 2/Off

Best Station Memory: Yes
HD Radio™: Built In / Artist Experience / Multicasting
Local Seek tuning: Yes
Presets: 18 FM, 6 AM
RDS: Yes
SiriusXM-Ready™ (Tuner Sold Separately): Yes

Amazon Alexa: Paired with Pioneer Vozsis
Android Auto™: Wired USB Connection
Apple® CarPlay: Wired USB Connection
Mobile Operating System: Android / Apple iOS
Music Playback (MTP): Yes
Pandora®: Source through iPhone/Android
Pioneer App Compatibility: Vozsis Android, Vozsis iPhone
Siri® Eyes Free (VR) (Internet Required): iPhone Only
Spotify: Streaming audio through iPhone/Android via Bluetooth or AUX input
Voice Control: Yes
Weblink: Yes

Audio Playback via USB: MP3 Audio Playback / WMA Audio Playback / WAV Audio Playback (Hi-Res) / AAC Audio Playback / FLAC Audio Playback (Hi-Res)
Audio Video Playback via USB: .avi / .mpg/mpeg / .divx / .mp4 / .3gp / .mkv / .mov / .flv / .wmv/.asf / .m4v / .ts/.m2ts/.mts / H.263 / H.264
Image Display via USB: BMP / JPEG / PNG

Advanced Sound Retriever: Mode-1/Mode-2/Off
Bass Boost: Yes
Auto EQ (CD-MC20 Microphone sold separately): Yes
Automatic Level Control: Mode-1/Mode-2/Off
Built-in Amplifier: MOSFET 50 W x 4
Crossover Network Mode: HPF/Band Pass/LPF
Crossover Standard Mode: HPF/LPF
Customizable Graphic Equalizer: 13 Band
DA Converter: 24 Bit
Digital Signal Processor: Built In
Dynamic Bass Enhancer: Yes
Easy EQ (EEQ) Preset Equalizer: Yes
Listening Position Selector: Yes
Loudness: High/Mid/Low/Off
Speaker Output: 4-ch
Spectrum Analyzer: Yes
Subwoofer Control: Yes
Time Alignment: Auto / Manual

OEM Integration: iDatalink® Maestro™ - RR (DATA)
Parking Assist Lines: Yes
RCA Video Output: Yes
USB: At Hideaway unit , USB - Type-A (5V, 1.5A)
USB Direct Control for iPhone®: 5s and newer

Input 1: Backup Camera Dedicated
Input 2: AUX (Minijack)
Input 3: A/V or 2nd Camera

Detachable Face Security: Fixed
Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
Music Browser: USB
Remote Control: Included

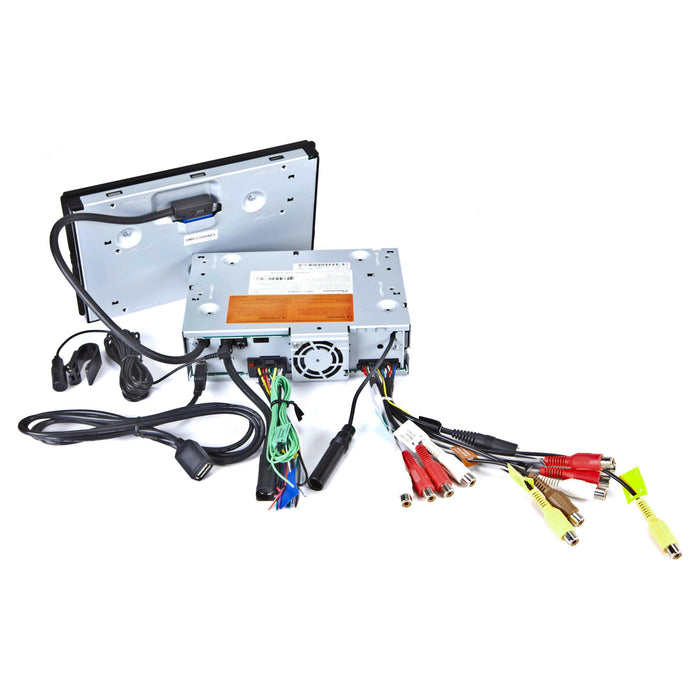

  • Touchscreen monitor
  • Chassis body (10A fuse)
  • Wiring harness
  • AV/Preout harness
  • 2 Mounting brackets
  • Remote control (CXE5116)
  • CR2025 3V lithium battery (installed in remote)
  • 58" USB extension cable
  • Microphone w/ visor-bracket (attached 13' cable terminated by a right-angled 2.5mm connector)
  • 6 Pan-head ISO screws (M5 x 6mm)
  • 6 Counter-sunk ISO screws (M5 x 6mm)
  • 8 Pan-head screws (M4 x 5mm)
  • Installation Manual
  • Quick Start Guide
  • Warranty Sheet
