Pioneer DMH-241EX 6.2" Touchscreen Multimedia Receiver with Bluetooth

Availability:
Out of stock
SKU PIO-DMH-241EX
Sold out

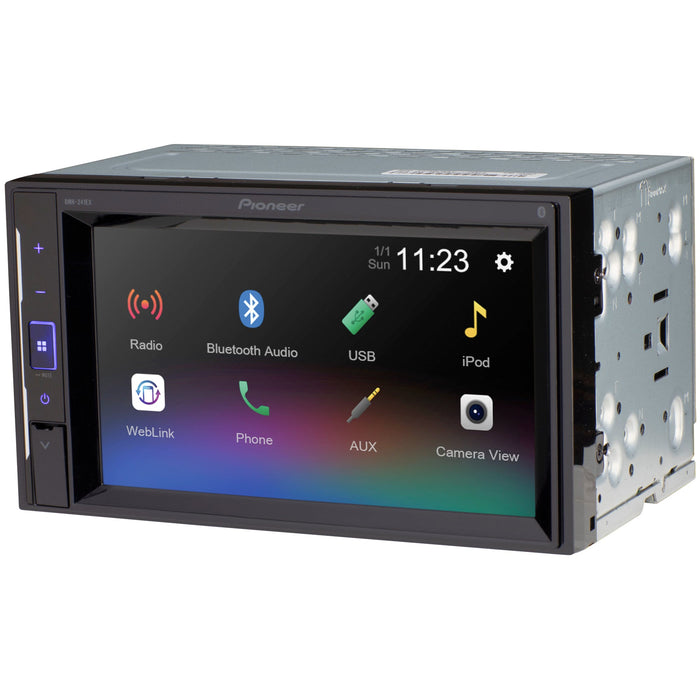

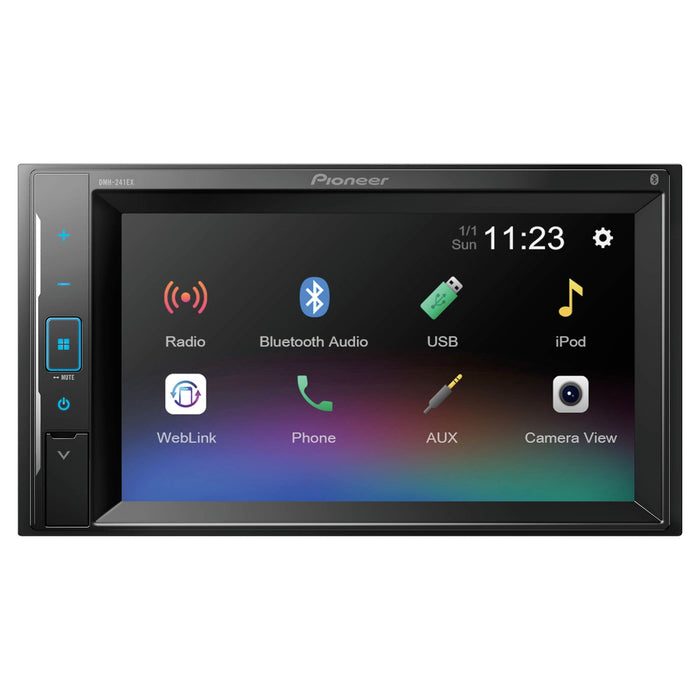

Pioneer DMH-241EX 6.2" Resistive Touchscreen Multimedia Receiver with Bluetooth

The DMH-241EX is a 6.2" resistive touchscreen digital media receiver designed to improve in-vehicle entertainment and connectivity with your smartphone. Enjoy features such as built-in Bluetooth for hands-free calling and audio streaming. Audio/video playback from USB. Safety features such as backup camera ready and much more.

Vozsis with Amazon Alexa
Pioneer's smartphone application, available for both iOS and Android OS devices allows Amazon Alexa capability through the Weblink-enabled receiver.

Hands free Bluetooth
Connect your compatible iOS or Android smartphone with NEX for a truly connected experience, bringing many of your favorite apps right into the dashboard and letting you communicate using advanced high-quality Bluetooth connectivity.

Back up camera input (1-camera)
Back up safely in any crowded parking area. Install a rear-view camera to use the receiver’s built-in parking guides for easy parking, with adjustable parking lines and full screen image for ease of use.

Customize your colors
Select from among five colors (blue/red/amber/green/violet) for the display and 112 different colors to match unit illumination to your vehicle's interior lighting. Also choose from several background images to suit your mood.

FLAC
Pioneer's NEX in-dash receivers were the first in the industry to offer playback of files encoded as high-res FLAC up to 192kHz/24 bit and provide playback output at CD quality. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system - put your music on the move.

Specs:

STANDARDS
CTA-2006: Yes

PERFORMANCE
Continuous Power Output: 22 W x 4-Channel
Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
Max Power Output: 50 W x 4-ch 4 ohm
RCA Preamp Outputs: 5-Channel
RCA Pre-out: 2V
RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm

DISPLAY
Back Light: LED
Brightness Control: Yes
Color Customization: 3 Preset Background Images ,Fixed Color - Blue
Device (Non-DIN/Modular Unit): 2-DIN
Dimmer: Automatic with vehicle illumination, Manual
Display Off Mode: Yes
Monitor Mechanism: Fixed
Resolution: WVGA (800 x 480)
Screen Size/Aspect Ratio: 6.2"/16:9
Touch Screen: Resistive

BLUETOOTH
Advanced Audio Distribution Profile (A2DP): Yes
AVRCP: 1.6
Built-in Bluetooth: Yes
Hands Free Version: 1.6
Hands-Free: Yes
Microphone Included: Included
Phone Registration: 5-phone
Secure Simple Pairing (SSP): Yes
Serial Port Profile (SPP): Yes

TUNER
Best Station Memory: Yes
Local Seek tuning: Yes
Presets: 18 FM, 6 AM
PS (Preset Scan): Hide or display radio station name
RDS: Yes

INTEGRATION
Amazon Alexa: Paired with Pioneer Vozsis
Mobile Operating System: Android / Apple iOS
Pandora: Bluetooth Audio Source
Pioneer App Compatibility: Vozsis Android, Vozsis iPhone
Siri Eyes Free (VR) (Internet Required): iPhone Only
Spotify: Bluetooth Audio Source
Voice Control: Yes
Weblink: 2.0
WiFi: Tethering, WiFi Hotspot

DIGITAL MEDIA PLAYBACK

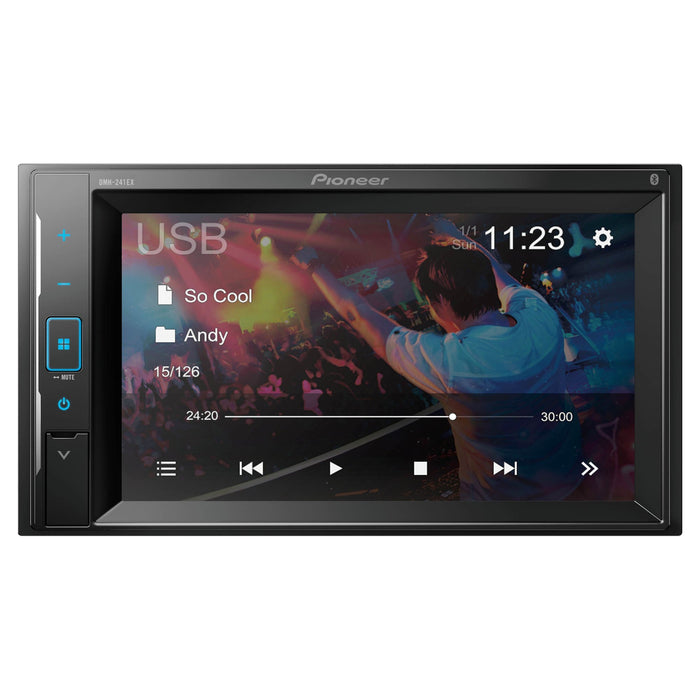

Audio Playback via USB: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / FLAC Audio Playback (Hi-Res) / WAV Audio Playback (Hi-Res)
Audio Video Playback via USB: .avi / .mpg/mpeg / .mp4 / .mkv / .mov / .flv / .m4v / .ts/.m2ts/.mts / H.263 / H.264
Image Display via USB: BMP / JPEG / PNG

AUDIO
Built-in Amplifier: MOSFET 50 W x 4
Crossover Standard Mode: HPF/LPF
Customizable Graphic Equalizer: 13 Band
DA Converter: 24 Bit
Digital Signal Processor: Built In
Easy EQ (EEQ) Preset Equalizer: Yes
Fade: Yes
Loudness: High/Mid/Low/Off
Speaker Output: 4-Channel
Subwoofer Control: Yes

EXPANDABILITY
RCA Video Output: Yes
USB: Single Rear Type-A (5V, 1.5 A)
USB Direct Control for iPhone: 5s and newer

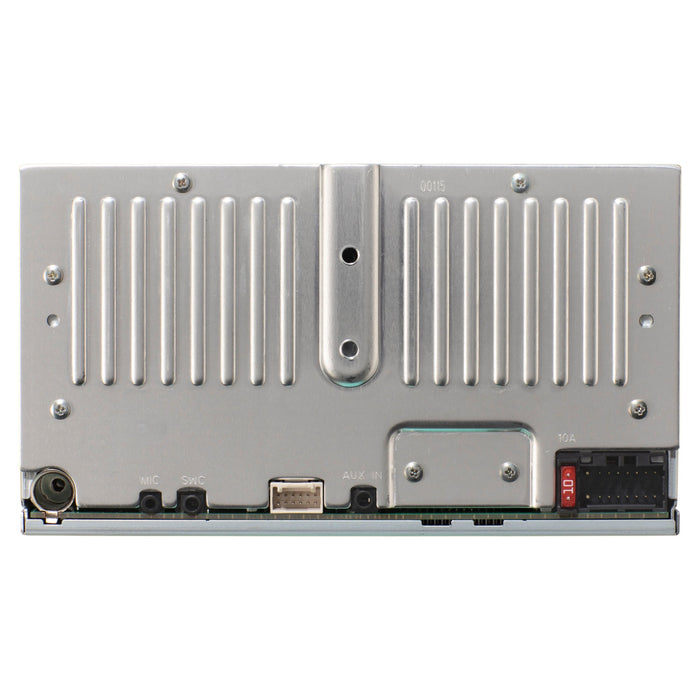

INPUTS
Input 1: Backup Camera Dedicated
Input 2: AUX (Minijack)

GENERAL
Detachable Face Security: Fixed
Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
Music Browser: USB
Remote Control: Included
Steering Wheel Control Ready (Adapter Sold Separately): Yes

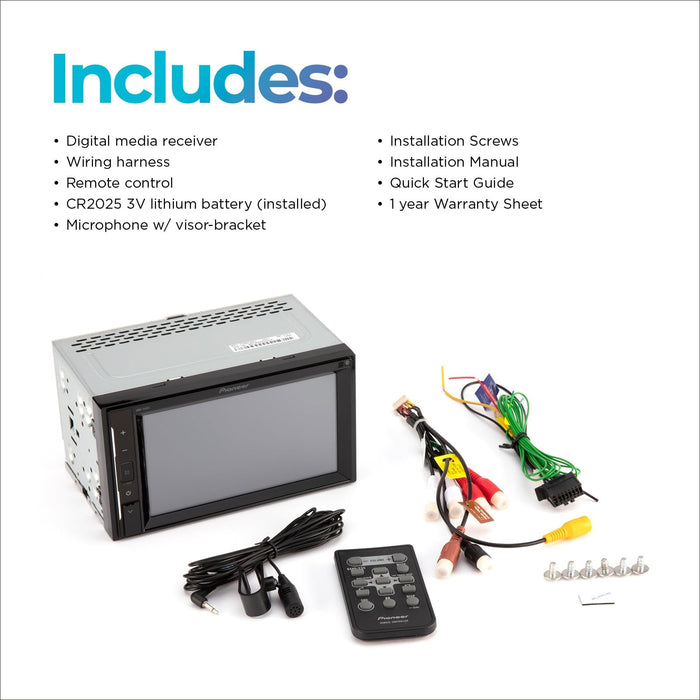

What's In The Box

  • Digital media receiver w/ fixed 6.2" touchscreen monitor (10A fuse)

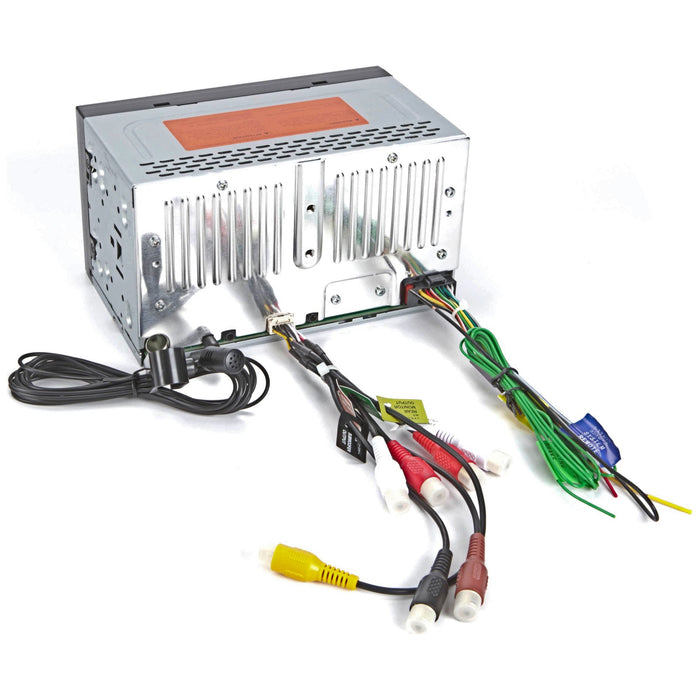

  • Wiring harness
  • Remote control (CXE9605)
  • CR2025 3V lithium battery (installed in remote)
  • Microphone w/ visor-bracket (attached 10' cable terminated by a right-angled 2.5mm connector)
  • 6 Installation Screws
  • Installation Manual
  • Quick Start Guide
  • 1 year Warranty Sheet
