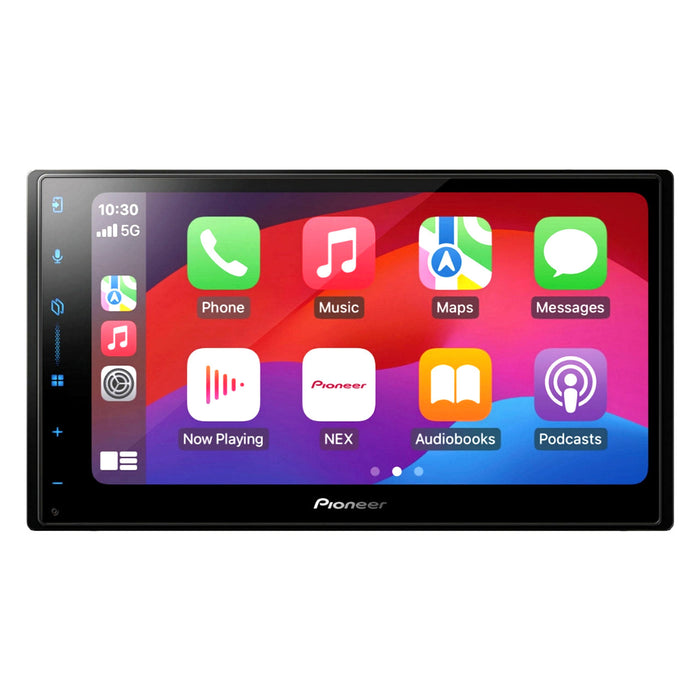

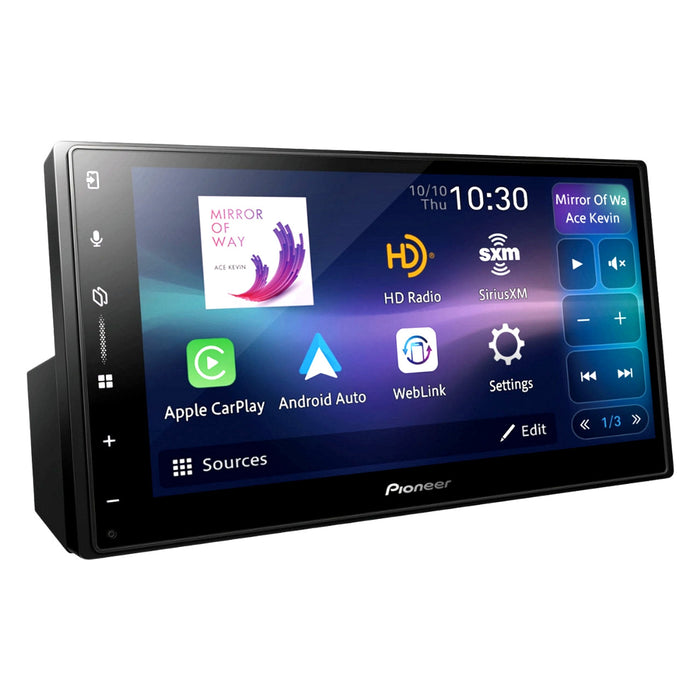

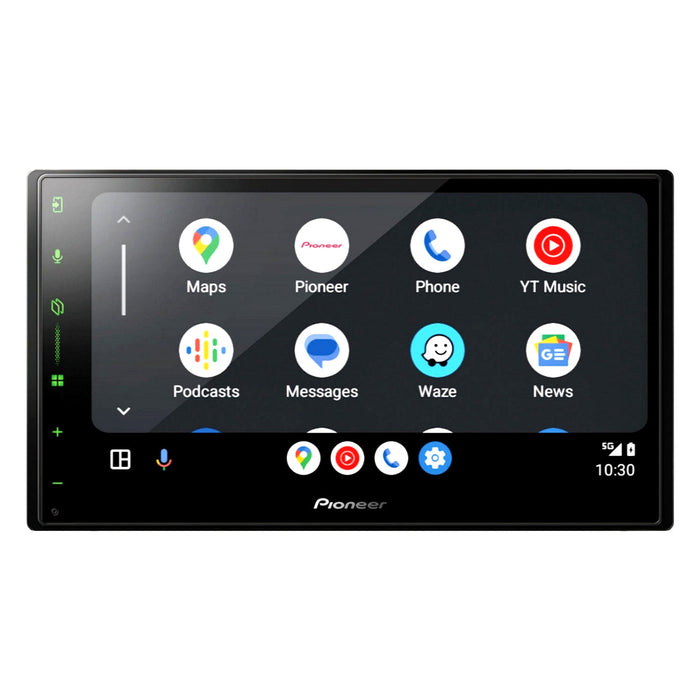

The DMH-2000NEX is a 6.8-inch display receiver designed to enhance your driving experience with cutting-edge connectivity solutions. It features a capacitive touchscreen on an L-Shape 1-DIN Chassis, allowing for flexible installation in your vehicle’s dash. With built-in Bluetooth, Android Auto, Apple CarPlay, and WebLink compatibility, this receiver ensures seamless integration with your smartphone, providing a safer and smarter way to use your phone while driving. The direct access buttons on the left side of the unit minimize distractions, enabling quick interactions like making calls, initiating voice actions, and navigating app screens with ease.
This Pioneer receiver also includes advanced features such as iDatalink Maestro RR and RR2 compatibility (sold separately), which preserves factory features like climate control and vehicle diagnostics. Additionally, it supports the installation of a rear-view camera with built-in parking guides for safer parking. The built-in HD Radio tuner offers clear digital quality broadcasting, providing access to extra local FM channels without any subscription fees. With customizable main menu layouts and a host of AV source options, the DMH-2000NEX is designed to make your in-car entertainment experience both enjoyable and intuitive.
PERFORMANCE
Continuous Power Output: 22 W x 4-Channel
Load Impedance Allowance: 4 Ohm (4 ohms to 8 ohms Allowable)
Max Power Output: 50W x 4-ch 4 ohms / 50 W X 2-ch 4 ohms
RCA Preamp Outputs: 4V
RCA Pre-out: 6-Channel
RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohms
DISPLAY
Back Light: LED
Brightness Control: Yes
Color Customization: 5 Key Colors
Device (Non-DIN/Modular Unit): 1-DIN “L-Shape” Short Chassis
Dimmer: Yes
Display Off Mode: Yes
Home Screen Customization: Yes
Monitor Mechanism: Fixed
Resolution: WVGA (800 x 480)
Screen Size/Aspect Ratio: 6.8"/16:9
Touch Screen: Capacitive Multi-Touch
NAVIGATION
External GPS Antenna: Yes
BLUETOOTH
Advanced Audio Distribution Profile (A2DP): Yes
AVRCP: 1.6
Built-in Bluetooth®: Yes
Hands Free Version: 1.6
Hands-Free: Yes
Microphone Included: Included
Phone Registration: 5 Phones
Secure Simple Pairing (SSP): Yes
Serial Port Profile (SPP): Yes
TUNER
Best Station Memory: Yes
HD Radio™: Yes
Local Seek tuning: Yes
Presets: 12 FM, 12 AM
PS (Preset Scan): Yes
RDS: RBDS
SiriusXM-Ready™ (Tuner Sold Separately): Yes
INTEGRATION
Amazon Alexa: via Pioneer Vozsis
Android Auto™: Wired USB Connection
Apple® CarPlay: Wired USB Connection
Mobile Operating System: Android / Apple iOS
Siri® Eyes Free (VR) (Internet Required): iPhone Only
Voice Control: Yes
DIGITAL MEDIA PLAYBACK
Audio Playback via USB: WMA/MP3/WAV/AAC/FLAC
Audio Video Playback via USB: H.264/H.263/VC-1/Mpeg4(MP4/AVI)/AVI/ MPEG1,2(PS)/Quick Time/WMV/MKV/FLV/TS
Image Display via USB: BMP, JPEG, PNG
AUDIO
Bass Boost: Yes
Balance: Yes
Built-in Amplifier: MOSFET 50 W x 4
Crossover Network Mode: Yes
Crossover Standard Mode: Yes
Customizable Graphic Equalizer: 13 BAND, 6 PRESET
Fade: Yes
Listening Position Selector: Yes
Loudness: High/Mid/Low/Off
Speaker Output: 4-ch
Subwoofer Control: Yes
EXPANDABILITY
OEM Integration: iDatalink® Maestro™ - RR, iDatalink® Maestro™ - RR2
Parking Assist Lines: Yes
INPUTS
Input 1: Backup Camera Dedicated
Input 2: AUX (Minijack)
GENERAL
Detachable Face Security: Fixed
Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
GPS Antenna: Yes
Remote Control: No
