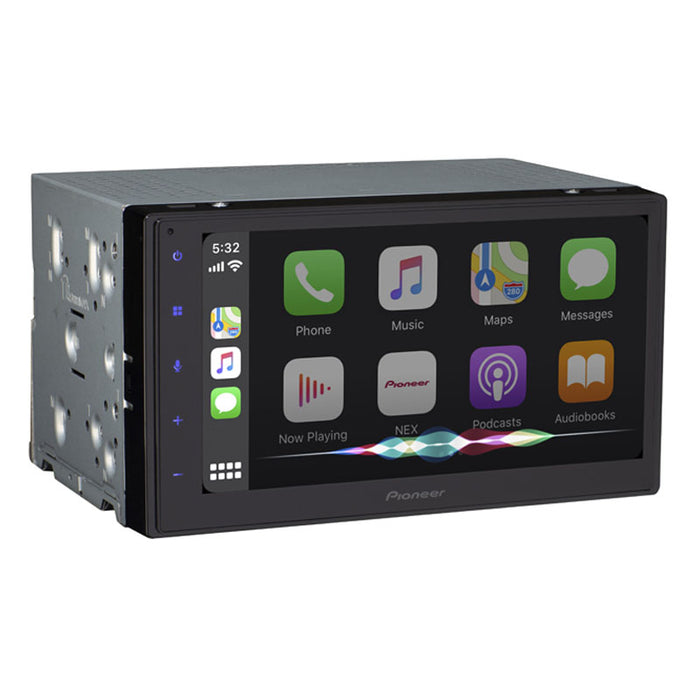

Pioneer DMH-1700NEX 6.8" Touchscreen Apple CarPlay Android Auto Bluetooth Digital Media Receiver

Low stock
Sale Sale

Pioneer DMH-1700NEX 6.8" Touchscreen Apple CarPlay Android Auto Bluetooth Digital Media Receiver

Pioneer DMH-1700NEX Digital Multimedia Bluetooth Receiver provides a large, clear 6.8" WVGA touchscreen display for your vehicle's dash

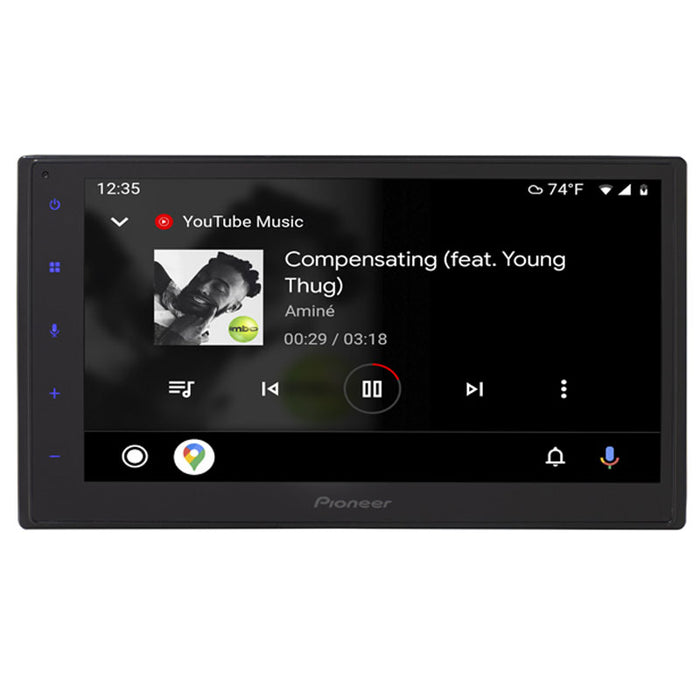

Android Auto

This receiver also features Android Auto, which extends the Android platform into the car in a way that’s purpose-built for driving. Android Auto automatically brings you useful information and organizes it into simple cards that appear just when they’re needed. It’s designed to minimize distraction so you can stay focused on the road ahead. Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all devices.

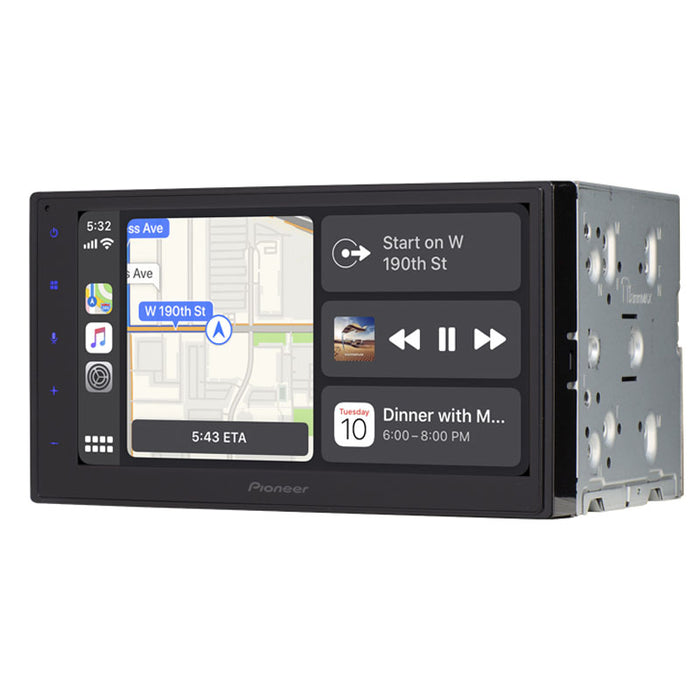

Apple CarPlay

This receiver features Apple CarPlay, the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and verbally send and listen to messages with just a word or a touch. Apple CarPlay requires iPhone 5 device or newer with the latest version of iOS.

Back Up Camera Input Ready*

Back Up Camera Input enables you to add a rear-view camera, with the system automatically switching to a full-screen image of the rear view when the car is placed in reverse gear. The full-screen image returns to the source screen last in use when the vehicle is taken out of reverse gear.*Rear visibility systems (backup cameras) are required under federal regulations in certain new vehicles according to a phase-in schedule that began on May 1, 2016. Owners of vehicles equipped with compliant rear visibility systems should not install or use this product in a way that alters or disables that system’s compliance with applicable regulations. If you are unsure whether your vehicle has a rear visibility system subject to these regulations, please contact the vehicle manufacturer or dealer.

Stay Connected

Connect your compatible iOS or Android™ smartphone with NEX for a truly connected experience, bringing many of your favorite apps right into the dashboard and letting you communicate using advanced high-quality Bluetooth connectivity. All NEX models feature built-in Bluetooth® that enables both hands-free calling and audio streaming. Including the latest Hands-Free Profile with Wideband Speech capability, NEX provides more natural sound quality and details during calls. When streaming music, NEX even lets you browse and select the media stored on your smartphone using the AVRCP profile.

Sound Quality For All

Your car and music are as unique as you are. With a Pioneer NEX in-dash receiver, sound quality features like a 13-Band Graphic Equalizer with touch panel swipe settings and built-in high/low pass crossover with adjustable points and slopes provide you with the controls to tailor the listening experience to your vehicle and listening preferences.

SiriusXM Ready

Your Favorite Stations Wherever You Go, Wherever you are, this Receiver is SiriusXM- Ready® so you can get over 140 channels, including commercial-free music, plus the best sports and live events, comedy, news, exclusive talk, and entertainment. SiriusXM programming is received through the SiriusXM Connect Vehicle Tuner (SiriusXM SXV300 Tuner sold separately, SiriusXM subscription required). To learn more or to purchase the tuner, visit SiriusXM.

Hands Free Bluetooth

This NEX Receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.



  • CTA-2006: Yes


  • Continuous Power Output: 22 W x 4-Channel
  • Load Impedence Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
  • Max Power Output: 50 W x 4-ch 4 ohm
  • RCA Preamp Outputs: 6-ch
  • RCA Preout Voltage: 2V
  • RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm


  • Back Light: LED
  • Brightness Control: Yes
  • Color Customization: 5 key colors
  • Device (Non-DIN/Modular Unit): 2-DIN
  • Dimmer: Automatic with vehicle illumination, Manual
  • Display Off Mode: Yes
  • Home Screen Customization: Yes
  • Monitor Mechanism: Fixed
  • Resolution: WVGA (800 x 480)
  • Screen Size/Aspect Ratio: 6.8"/16:9
  • Touch Screen: Capacitive


  • Advanced Audio Distribution Profile (A2DP): Yes
  • AVRCP: 1.6
  • Built-in Bluetooth®: Yes
  • Hands-Free: Yes
  • Microphone Included: Included
  • Phone Registation: 3-phone
  • Secure Simple Pairing (SSP): Yes
  • Serial Port Profile (SPP): Yes


  • Best Station Memory: Yes
  • Local Seek tuning: Yes
  • Presets: 18FM 12AM
  • RDS: Yes
  • SiriusXM-Ready™ (Tuner Sold Separately): Yes


  • Android Auto™: Wired USB Connection
  • Apple® CarPlay: Wired USB Connection
  • Mirroring: USB-Android Phone Only
  • Mobile Operating System: Android / Apple iOS
  • Pandora®: With Apple CarPlay or Android Auto
  • Siri® Eyes Free (VR) (Internet Required): iPhone Only
  • Spotify: With Apple CarPlay or Android Auto
  • Voice Control: Yes


  • Audio Playback via USB: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / WAV Audio Playback (Hi-Res) / FLAC Audio Playback (Hi-Res)
  • Audio Video Playback via USB: .avi / .mpg/mpeg / .mp4 / .3gp / .mkv / .mov / .divx / .wmv/.asf / .m4v / .ts / .m2ts / .mts
  • Image Display Via USB: BMP / JPEG / PNG


  • Bass Boost: Yes
  • Balance: Yes
  • Built-in Amplifier: MOSFET 50 W x 4
  • Crossover Standard Mode: HPF/LPF
  • Customizable Graphic Equalizer: 13 Band
  • DA Converter: 24 Bit
  • Digital Signal Processor: Built In
  • Easy EQ (EEQ) Preset Equalizer: Yes
  • Fade: Yes
  • Loudness: High/Mid/Low/Off
  • Speaker Output: 4-ch
  • Subwoofer Control: Yes


  • Parking Assist Lines: Yes
  • RCA Video Output: Yes
  • USB: Single Rear Type-A (5V, 1.5 A)
  • USB Direct Control for iPhone®: 5s and newer


  • Input 1: AUX (Minijack)
  • Input 2: Backup Camera Dedicated


  • Detachable Face Security: Fixed
  • Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
  • Music Browser: USB
  • Remote Control: Optional
  • Steering Wheel Control Ready (Adapter Sold Separately): Yes

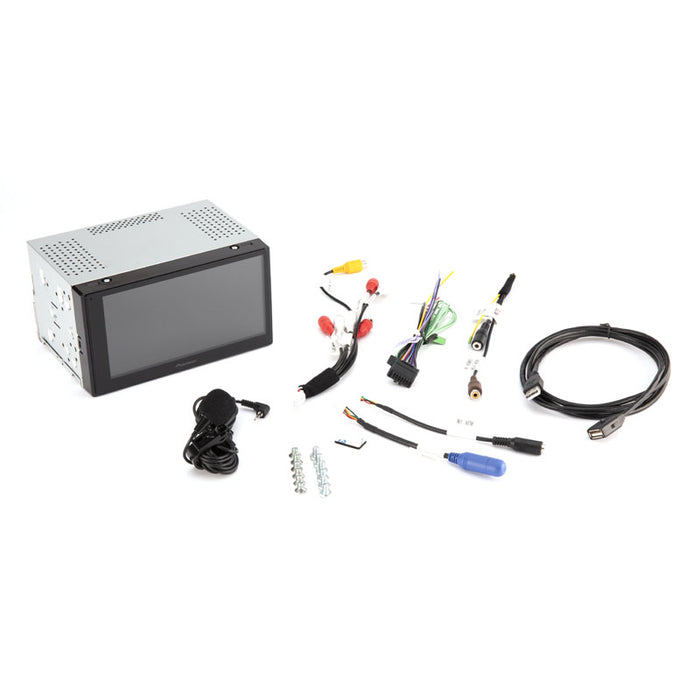

  • Digital Media Receiver
  • Wire Harness
  • Audio/Video Output Wire Harness
  • Camera and Wired Remote Input Wire Harness
  • Auxiliary Input Wire Harness, SiriusXM Wire Harness
  • (6) Pan-head ISO screws (M5 x 6mm)
  • (6) Counter-sunk ISO screws (M5 x 6mm)
  • 1.5m USB Extension Cable Type A(M) to Type A(F)
  • Wired Microphone for Bluetooth Hands-Free Phone Calls
  • Instruction Manual
  • Quick Start Guide, 1 Year Warranty Sheet
