Pioneer AVH-240EX 6.2" Multimedia Resistive Touchscreen DVD Receiver Bluetooth

Availability:
in stock, ready to be shipped
SKU PIO-AVH-241EX

Pioneer AVH-240EX 6.2" Multimedia Resistive Touchscreen DVD Receiver Bluetooth

The AVH-240EX is a 6.2" resistive touchscreen DVD receiver designed to improve in-vehicle entertainment and connectivity with your smartphone. Enjoy features such as built-in Bluetooth® for hands-free calling and audio streaming. Audio/video playback from USB. Safety features such as back up camera ready and much more.

Features:

Vozsis with Amazon Alexa
Vozsis is a smartphone app available for both iOS and Android OS devices that brings Amazon Alexa capability to compatible Weblink-enabled Pioneer multimedia in-dash receivers. Downloading both the Vozsis and Weblink applications makes using Alexa in your car simple – just tap-and-ask, and Alexa will respond instantly. With Alexa, you can ask to play music, hear the news, check weather, control smart home devices1, and more. Alexa lives in the cloud, so it’s always getting smarter, adding new capabilities that are delivered to your device automatically.

Hands Free Bluetooth
This receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.

Back Up Camera Input Ready*
Back Up Camera input enables you to add a rear-view camera, with the system automatically switching to a full-screen image of the rear view when the car is placed in reverse gear. The full-screen image returns to the source screen last in use when the vehicle is taken out of reverse gear.
*Rear visibility systems (backup cameras) are required under federal regulations in certain new vehicles according to a phase-in schedule that began on May 1, 2016. Owners of vehicles equipped with compliant rear visibility systems should not install or use this product in a way that alters or disables that system’s compliance with applicable regulations. If you are unsure whether your vehicle has a rear visibility system subject to these regulations, please contact the vehicle manufacturer or dealer.

Customize Your Colors

Select among five colors (blue/red/amber/green/violet) for the display and 112 different colors to match unit illumination to your vehicle's interior lighting. Also choose from several background images to suit your mood.

FLAC

Pioneer's in-dash receivers offer playback of files encoded as high-res FLAC up to 192kHz/24 bit through USB. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system - put your music on the move.

Features:

Vozsis with Amazon Alexa
Vozsis is a smartphone app available for both iOS and Android OS devices that brings Amazon Alexa capability to compatible Weblink-enabled Pioneer multimedia in-dash receivers. Downloading both the Vozsis and Weblink applications makes using Alexa in your car simple – just tap-and-ask, and Alexa will respond instantly. With Alexa, you can ask to play music, hear the news, check weather, control smart home devices1, and more. Alexa lives in the cloud, so it’s always getting smarter, adding new capabilities that are delivered to your device automatically.

Hands Free Bluetooth
This receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.

Back Up Camera Input Ready*
Back Up Camera input enables you to add a rear-view camera, with the system automatically switching to a full-screen image of the rear view when the car is placed in reverse gear. The full-screen image returns to the source screen last in use when the vehicle is taken out of reverse gear.
*Rear visibility systems (backup cameras) are required under federal regulations in certain new vehicles according to a phase-in schedule that began on May 1, 2016. Owners of vehicles equipped with compliant rear visibility systems should not install or use this product in a way that alters or disables that system’s compliance with applicable regulations. If you are unsure whether your vehicle has a rear visibility system subject to these regulations, please contact the vehicle manufacturer or dealer.

Customize Your Colors
Select among five colors (blue/red/amber/green/violet) for the display and 112 different colors to match unit illumination to your vehicle's interior lighting. Also choose from several background images to suit your mood.

FLAC
Pioneer's in-dash receivers offer playback of files encoded as high-res FLAC up to 192kHz/24 bit through USB. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system - put your music on the move.

Specifications

STANDARDS

CTA-2006: Yes

PERFORMANCE

  • Continuous Power Output: 22 W x 4-Channel
  • Load Impedence Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
  • Max Power Output: 50 W x 4-ch 4 ohm
  • RCA Preamp Outputs: 5-ch
  • RCA Preout Voltage: 2V
  • RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm

DISPLAY

  • Back Light: LED
  • Brightness Control: Yes
  • Color Customization: 3 Preset Background Images / Fixed Color - Blue
  • Device (Non-DIN/Modular Unit): 2-DIN
  • Dimmer: Automatic with vehicle illumination, Manual
  • Display Off Mode: Yes
  • Monitor Mechanism: Fixed
  • Resolution: WVGA (800 x 480):
  • Screen Size/Aspect Ratio: 6.2"/16:9:
  • Touch Screen: Resistive


BLUETOOTH

  • Advanced Audio Distribution Profile (A2DP): Yes
  • AVRCP: 1.6
  • Built-in Bluetooth®: Yes
  • Hands Free Version: 1.6
  • Hands-Free: Yes
  • Microphone Included: Included
  • Phone Registation: 5-phone
  • Secure Simple Pairing (SSP): Yes
  • Serial Port Profile (SPP): Yes
  • Sound Retriever Air: Yes

TUNER

  • Best Station Memory: Yes
  • Local Seek tuning: Yes
  • Presets: 18FM 12AM
  • PS (Preset Scan): Hide or display radio station name
  • RDS: Yes

INTEGRATION

  • Amazon Alexa: Paired with Pioneer Vozsis
  • Mobile Operating System: Android / Apple iOS
  • Pandora®: Bluetooth Audio Source
  • Pioneer App Compatibility: Vozsis Android, Vozsis iPhone
  • Siri® Eyes Free (VR) (Internet Required): iPhone Only
  • Spotify: Bluetooth Audio Source
  • Voice Control: Yes
  • Weblink: 2.0

DIGITAL MEDIA PLAYBACK

  • Audio Playback via USB: AAC Audio Playback / FLAC Audio Playback (Hi-Res) / MP3 Audio Playback / WAV Audio Playback (Hi-Res) / WMA Audio Playback
  • Audio Video Playback via DVD-R/RSL/-RDL/DVD-RW: AVI Audio Video Playback / DVD Audio Video Playback / DivX Audio Video Playback
  • Audio Video Playback via USB: avi / .mpg/mpeg / .mp4 / .mkv / .mov / .flv / .m4v / .ts/.m2ts/.mts / H.263 / H.264

AUDIO

  • Balance: Yes
  • Built-in Amplifier: MOSFET 50 W x 4
  • Crossover Standard Mode: HPF/LPF
  • Customizable Graphic Equalizer: 13 Band
  • DA Converter: 24 Bit
  • Digital Signal Processor: Built In
  • Easy EQ (EEQ) Preset Equalizer: Yes
  • Fade: Yes
  • Loudness: High/Mid/Low/Off
  • Speaker Output: 4-ch
  • Subwoofer Control: Yes


EXPANDABILITY

  • RCA Video Output: Yes
  • USB: Single Rear Type-A (5V, 1-1/2 A)
  • USB Direct Control for iPhone®: 5s and newer

INPUTS

  • Input 1: Backup Camera Dedicated
  • Input 2: AUX (Minijack)

GENERAL

  • Detachable Face Security: Fixed
  • Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
  • Music Browser: USB

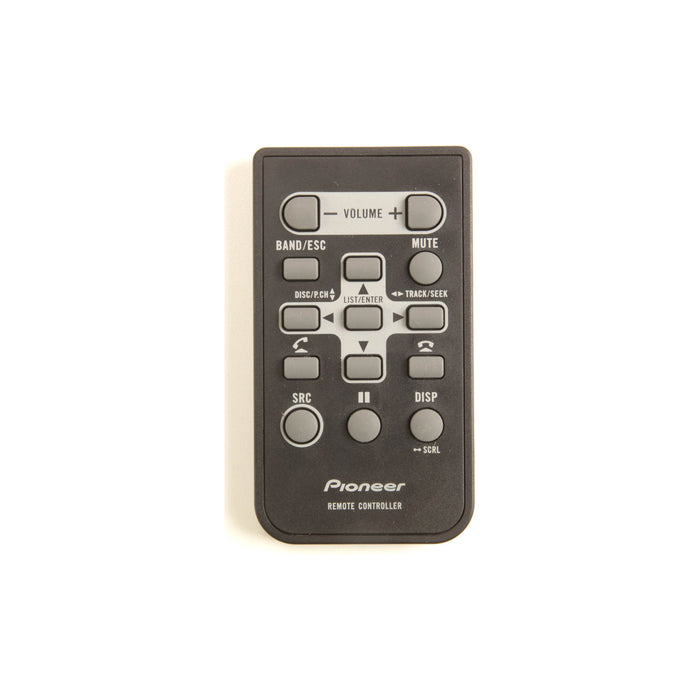

  • Remote Control: Included
  • Steering Wheel Control Ready (Adapter Sold Separately): Yes
