Panamax PM8-EX 8 AC Outlet Surge Protector Noise Filtration 6 Feet Cord

Panamax PM8-EX 8 AC Outlet Surge Protector Noise Filtration 6 Feet Cord
Availability:
Out of stock
SKU PAN-PM8-EX
Sold out

Panamax PM8-EX 8 AC Outlet Surge Protector Circuit Protection 6 Feet Cord

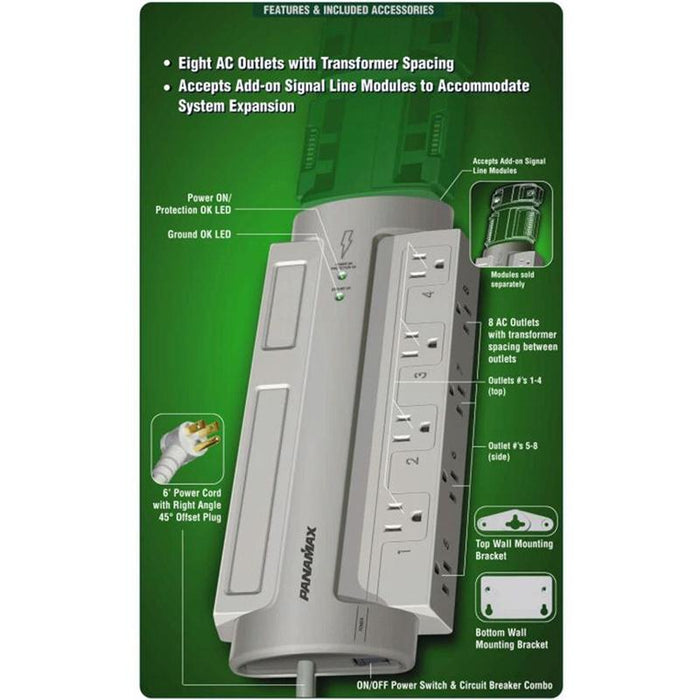

  • RFI/EMI noise filtration
  • Protect or disconnect protection
  • Accepts add-on signal line modules to accommodate system expansion
  • Features emi/rfi noise filtration and panamax's exclusive protect or disconnect
  • Features EMI/RFI noise filtration and Panamax's exclusive Protect or Disconnect¿ Circuitry
  • Accepts add-on signal line modules
  • Includes 6 power cord with right angle 45° offset plug

Specifications

  • Family: Floor Models
  • Line Voltage: 120 (Volts)
  • Number of Outlets: 8
  • Outlet Descriptions: All 8 outlets filtered and surge protected
  • Control: On/Off control to all outlets through power switch.
  • Compliance: UL 1449 3rd Edition, 3000A
  • AC Power Cord: 6 ft. captive cord
  • Dimensions12" L x 5" W x 1.75" H (12.5" L Including brackets)
  • Weight: 3 lbs

AC Protection

  • Technology: Protect or Disconnect L-N, L-G, N-G Protection Modes Thermal Fusing
  • Maximum Current Rating: 15 (Amps)
  • Initial Clamping Level: 200V Peak

Filtration

  • Technology: RFI/EMI Filtration
  • Filtration Rating: 45dB @ 100kHz - 1 MHz
  • Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
  • Thermal Fusing: Yes
  • Single Pulse Energy Dissipation: 1125 Joules
  • Response Time: < 1 ns
  • Peak Impulse Current: 52,000 Amps
