Overhead Door Garage Roll-Up Shutter Security Alarm Contact Sensor

Availability:
in stock, ready to be shipped
SKU AVS-DT-3012
Overhead Door Garage Roll-Up Shutter Security Alarm Contact Sensor

MPN: DT-3012
Condition: New

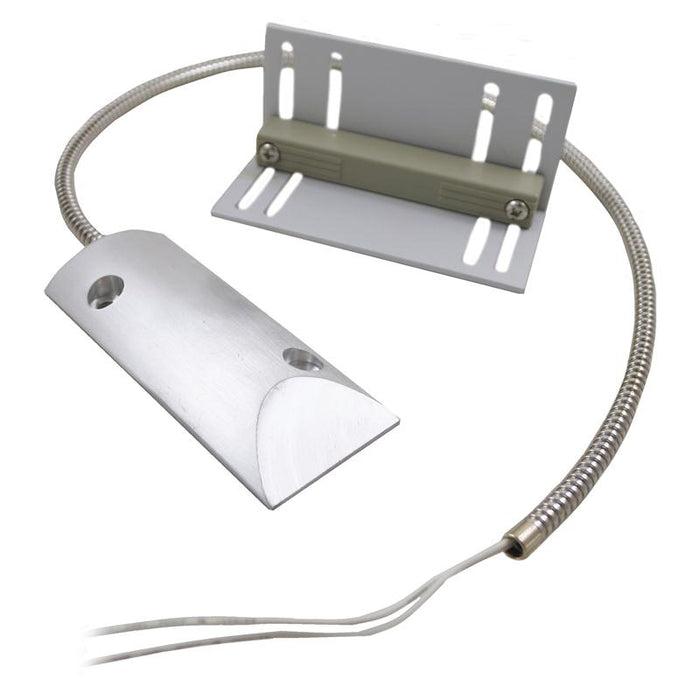

Overhead Mounted Switch with Magnet

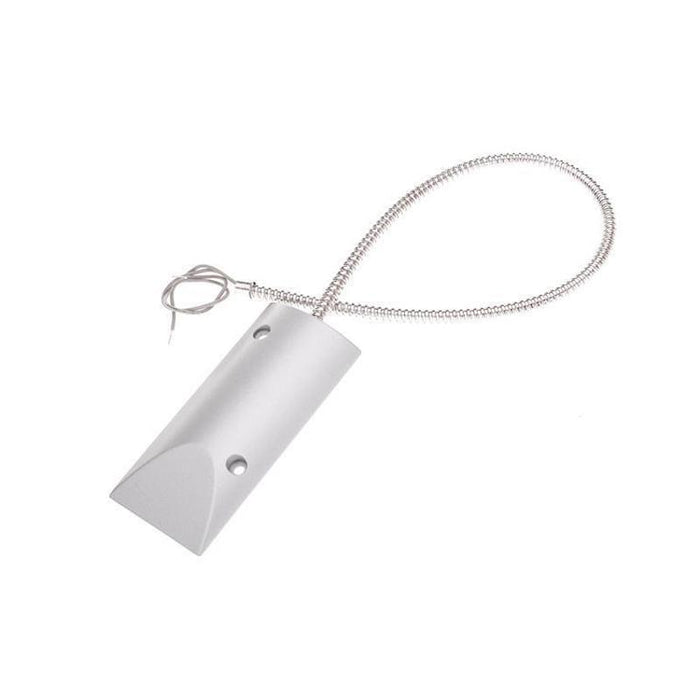

Heavy Duty Roller Shutter Contact

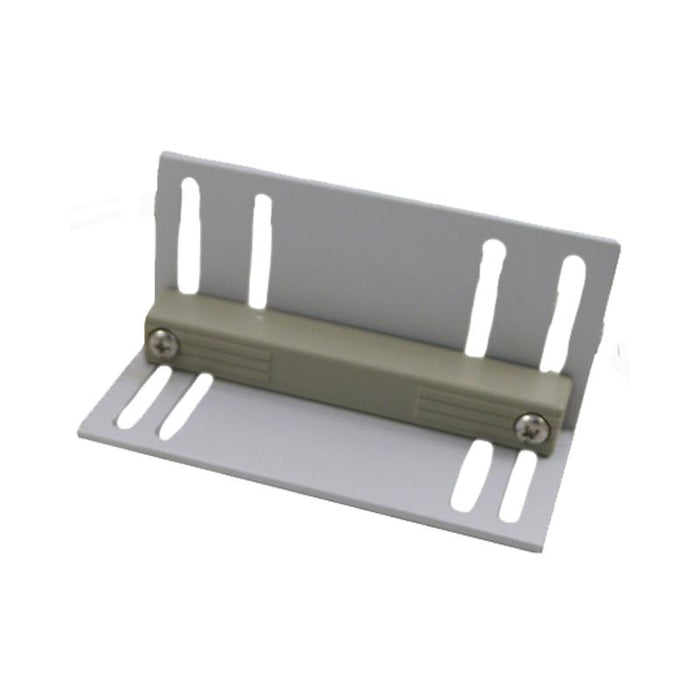

Magnet Mounted on adjustable L-Bracket
Wide Operating Gap 3" minimum
30-3/4" PVC 22AWG Cable with 21-1/2" armored sleeve
50mm x 106mm x 50mm for L bracket
105mm x 45mm x 10mm for contact
Not for AC voltage
When the magnet is next to the switch, the loop is closed
When the magnet is pulled away the loop opens
