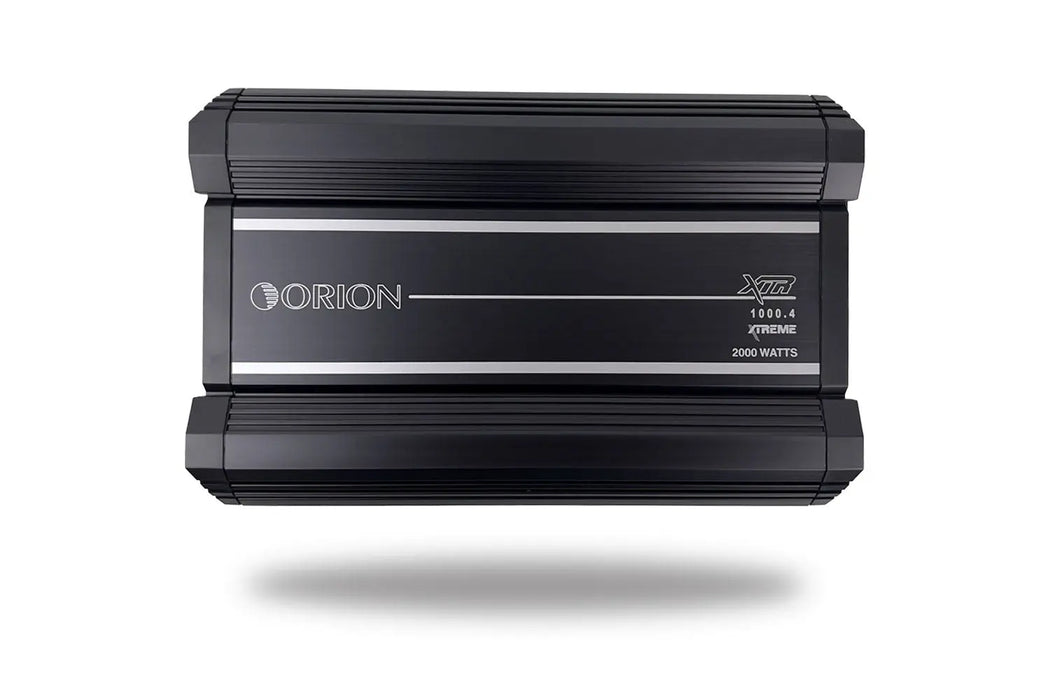

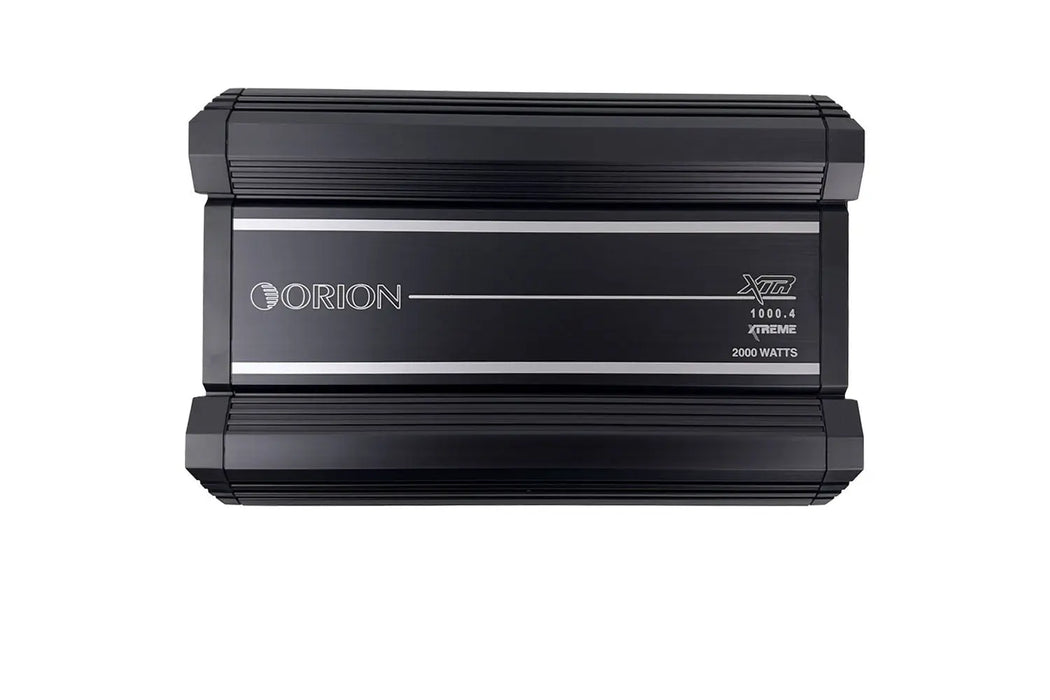

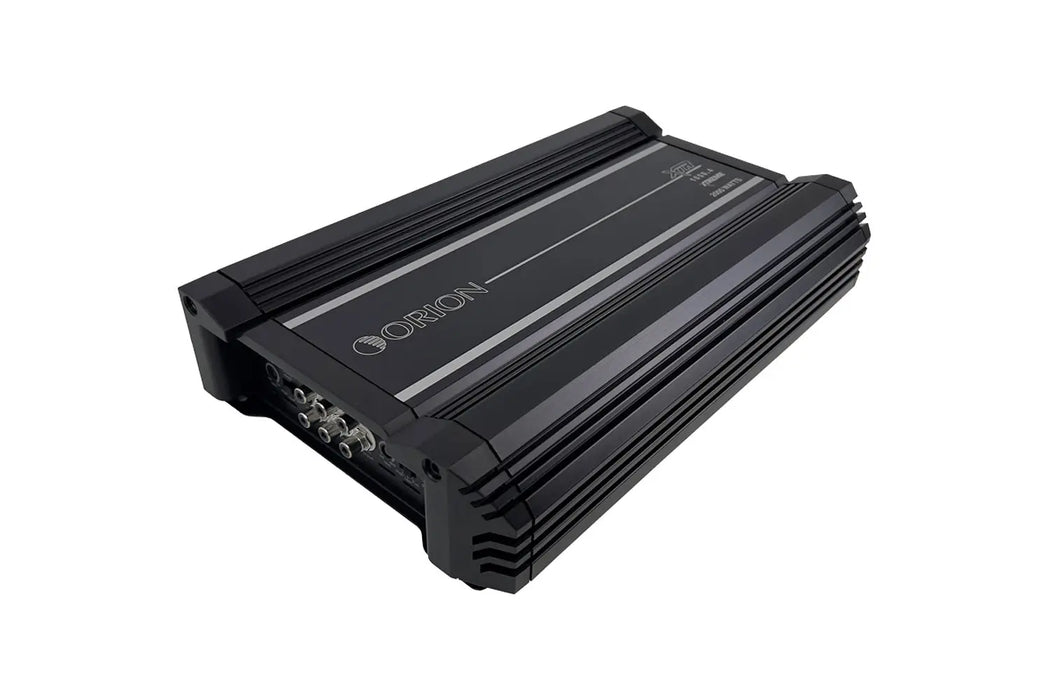

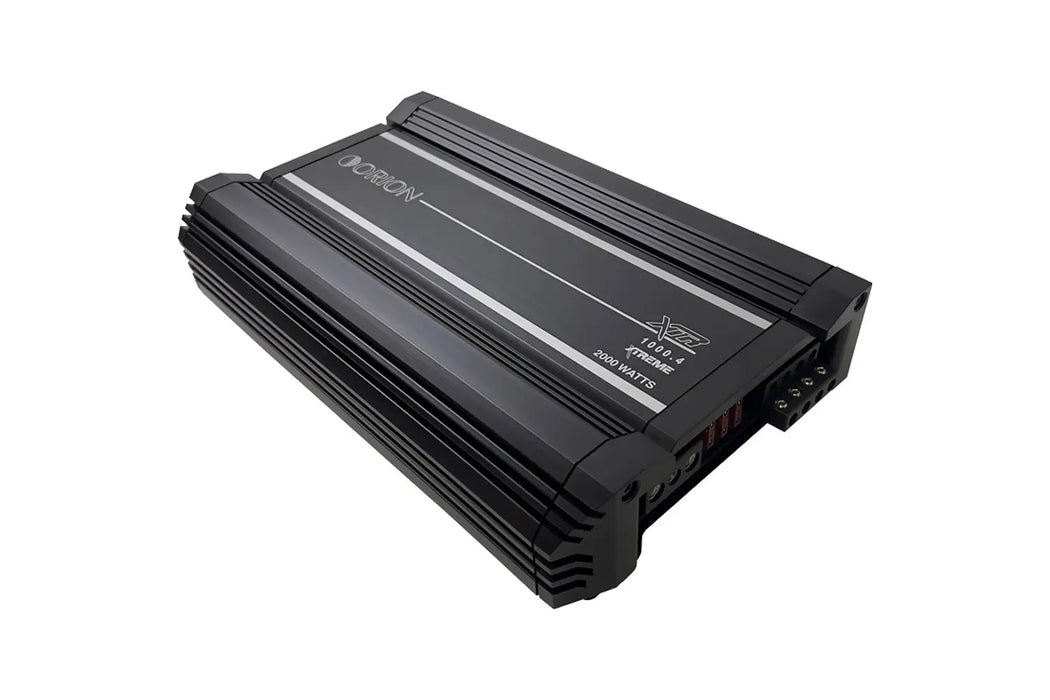

Orion XTR1000.4 XTR Series 1000W RMS Compact 4-Channel Class-AB Amplifier

Orion XTR1000.4 XTR Series 1000W RMS Compact 4-Channel Class-AB Amplifier
Availability:
Low stock
SKU ORI-XTR1000.4

Orion XTR1000.4 XTR Series 1000W RMS Compact 4-Channel Class-AB Amplifier

Unleash Auditory Excellence
The ORION XTR1000.4 XTR Series 1000W RMS 4-Channel Class-AB Amplifier empowers your audio journey. With advanced features and precision engineering, this amplifier transcends traditional boundaries, delivering a fusion of power, accuracy, and control to your car audio system.

Immersive Sound Reproduction
Rediscover your music in its purest form. Every note, beat, and melody – from the gentlest to the most dynamic – is meticulously reproduced for an immersive and authentic listening experience.

Robust Power and Precision
Experience your music with robust power and precision. The ORION XTR1000.4 XTR Series Amplifier seamlessly integrates commanding power with exceptional audio quality, crafting a sonic masterpiece that resonates deeply.

Elevate Your Drive
Step into the realm of robust excellence with the ORION XTR1000.4 XTR Series 1000W RMS 4-Channel Class-AB Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical satisfaction. It's time to embrace sound in its purest form.

  • Class AB Amplification - Experience the robust fusion of efficiency and precision with Class AB amplification for powerful and accurate sound reproduction.
  • 1000 Watts RMS - Immerse yourself in a world of robust audio excellence with 1000 Watts RMS, delivering commanding and clear sound performance.

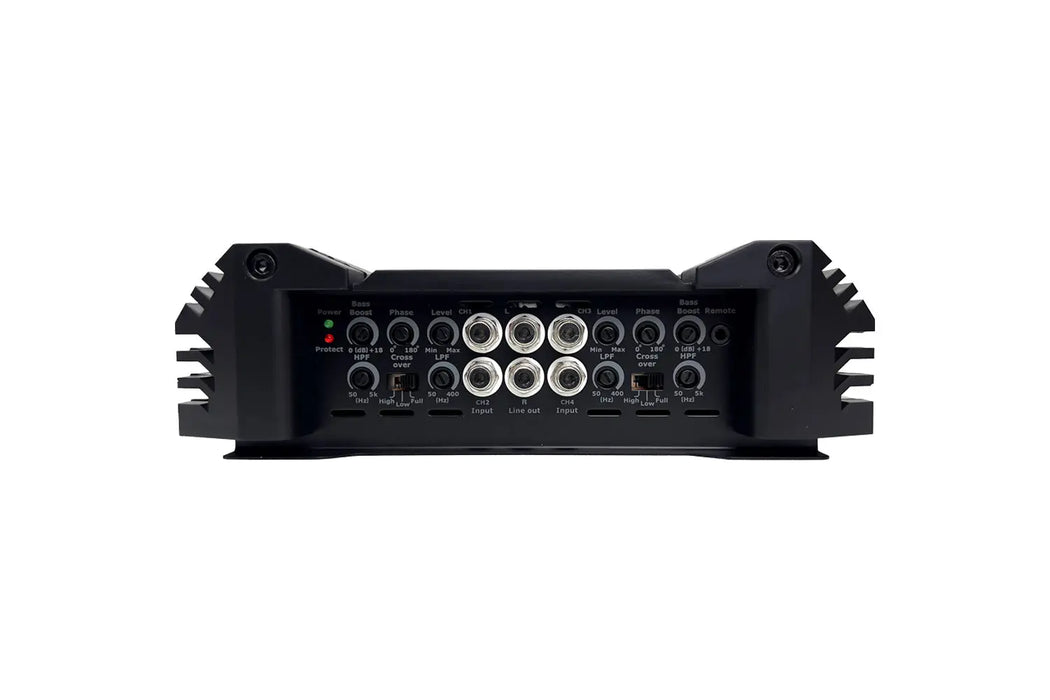

  • Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
  • Customized Bass Enhancement - Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
  • Advanced Protection Measures Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
  • Compact and Stylish Design - The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
  • Engineered Excellence - Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.

All MOSFET Power Supply & Output Stage
Heavy Gauge / High Current Custom Power and Speaker Terminals
12dB Octave Low-Pass Filter

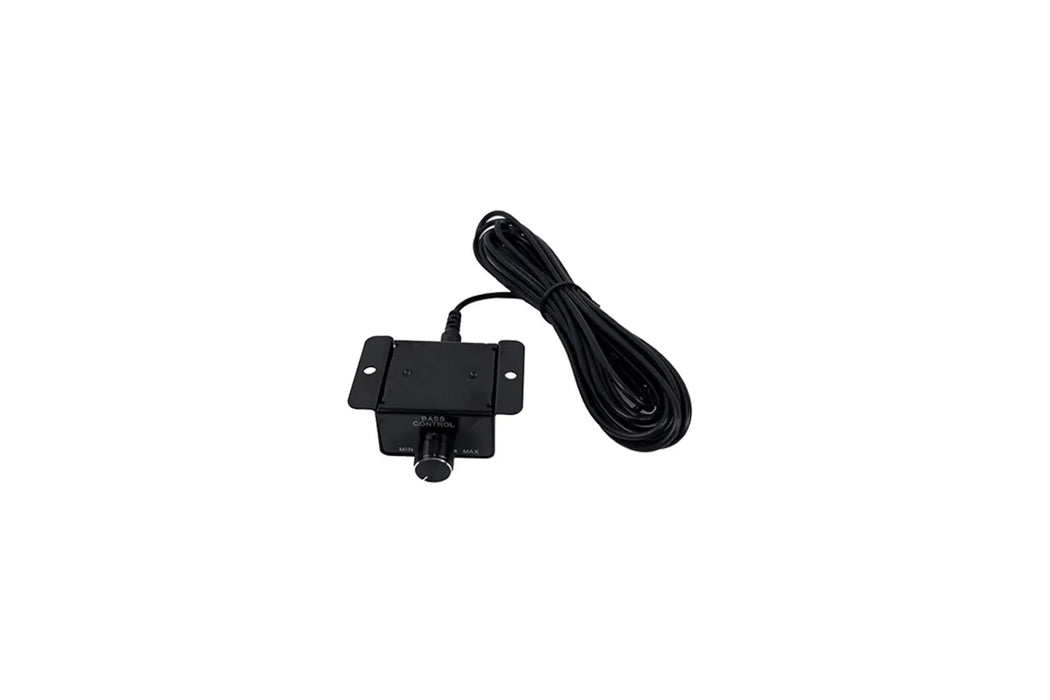

Remote Gain Controller Included
Electronic Crossover Network
Bass Boost Circuit
Power and Protection LED Indicators
Soft Turn-on/Turn-off Turn-On Delay
Fault and Protection Monitoring
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Specifications:

- Frequency Response: 20Hz - 350kHz
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB
- High Pass Crossover Continuously variable (50-5kHz)
- Low Pass Crossover Continuously variable (50-400Hz)
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >60%
- Damping Factor: 100dB
- Signal to Noise Ratio: >90dB
- T.H.D. & Noise: 0.5%
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 120A recommended (3 x 40A ATC Fuses)
- Dimensions (L x W x H): 14.17" x 9.25" x 2.75" (360x235x70mm)

Power Ratings:

- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 165W
- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 250W
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 500W

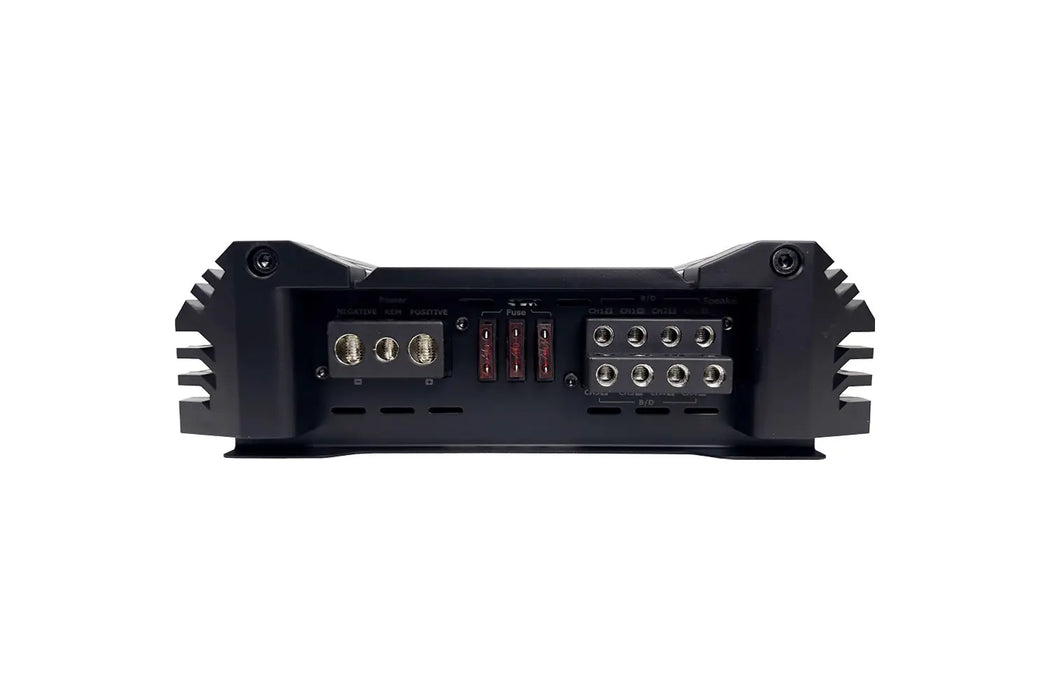

 POWER TERMINAL MANAGEMENT:

- Positive Terminals: 1 x 4 AWG.
- Negative Terminals: 1 x 4 AWG.
- Remote Turn-ON Signal: 10 AWG.
- Speaker Output Terminals: 10 AWG.
