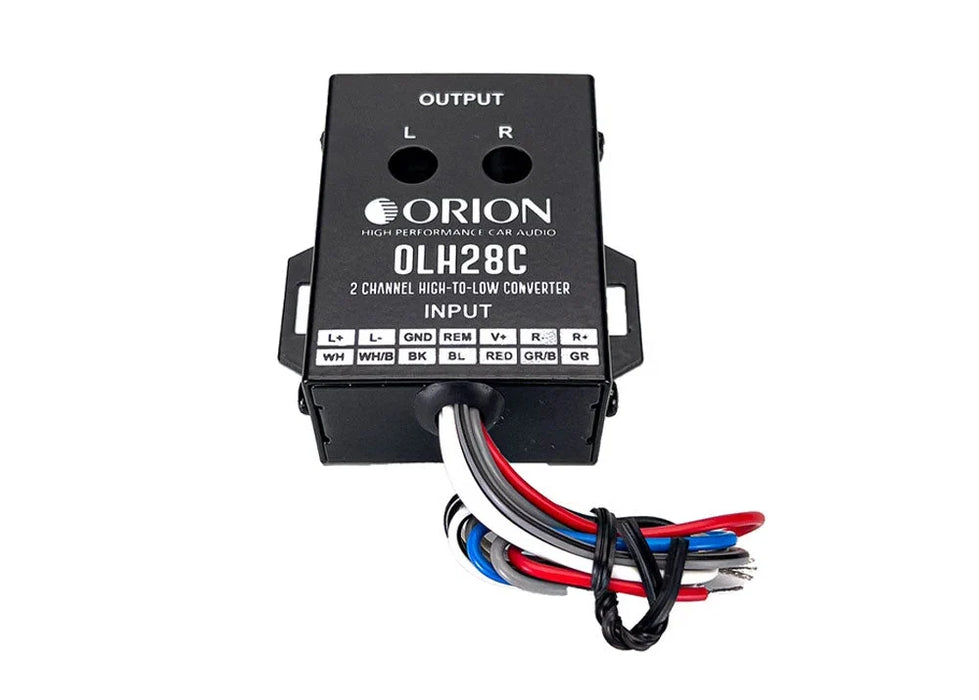

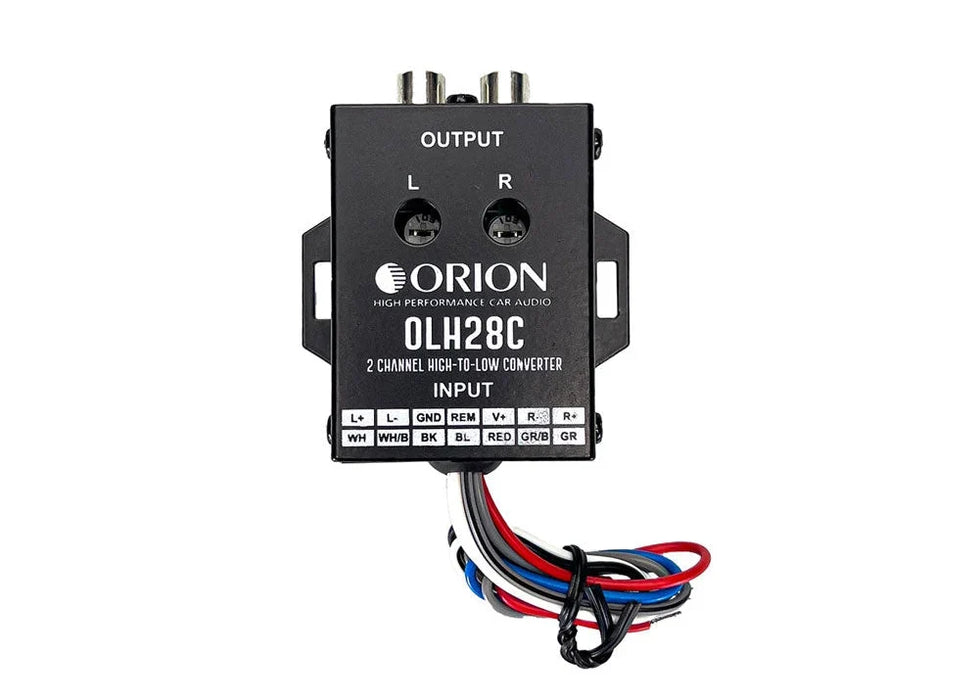

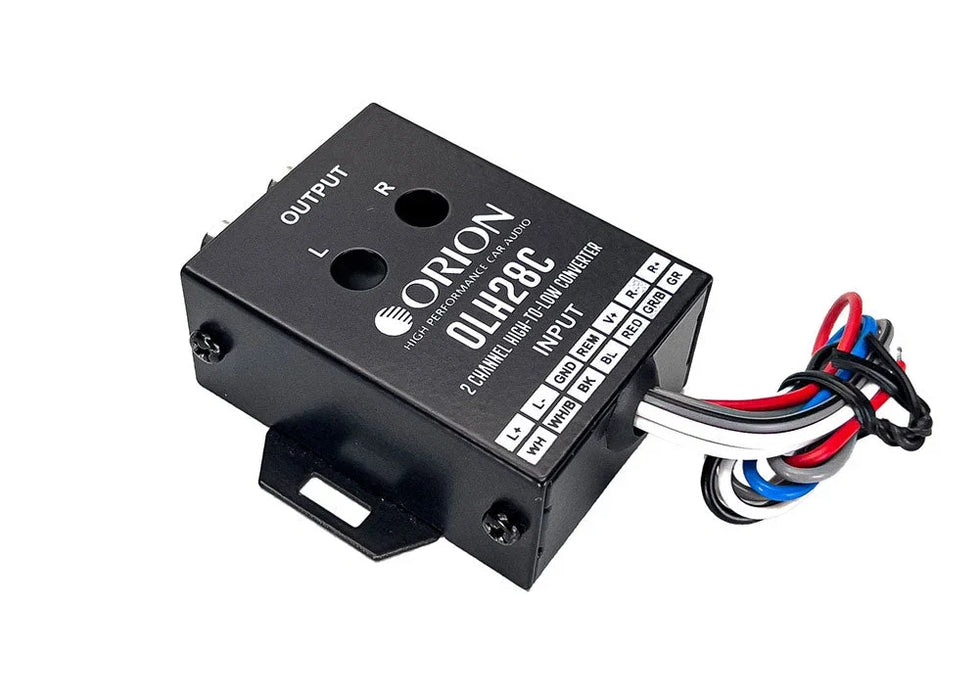

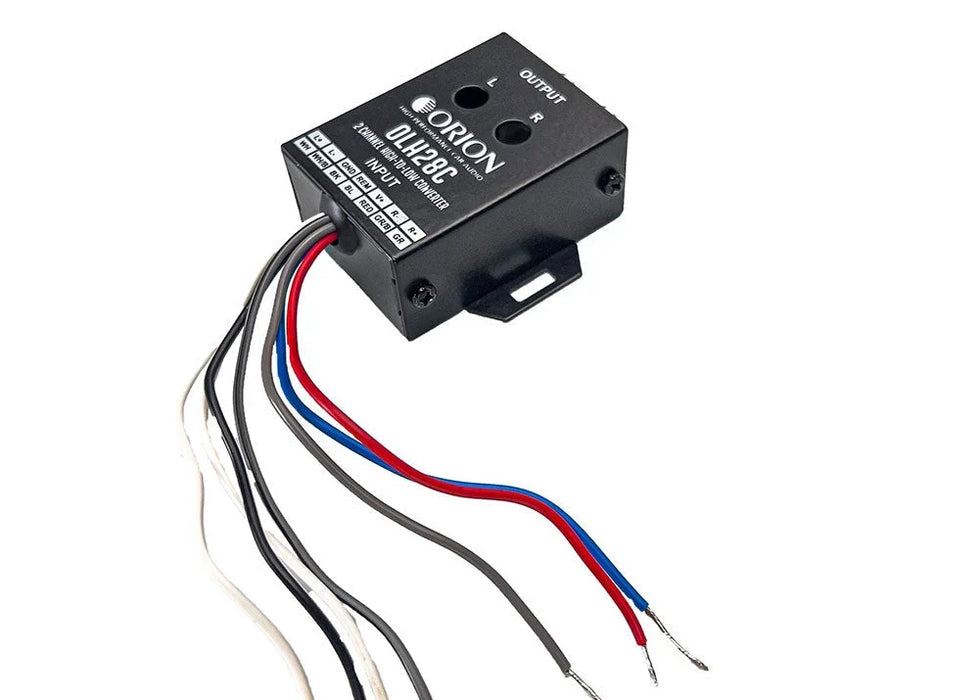

Orion OLH28C 2-Channel High to Low Built-In 12V Remote Level Converter

Availability:
Out of stock
SKU ORI-OLH28C
Sold out

ORION OLH28C 2-Channel High-to-Low Line Output Converter | Speaker-Level Input, RCA Output, Remote Turn-On Wire, Compact Installation

Tired of your car audio sounding like a tin can concert? Meet the ORION OLH28C 2 Channel High to Low Converter with Remote Turn-On—your new best friend in the quest for crystal-clear sound and effortless connectivity.

This little genius is here to save the day by converting high-level signals into low-level outputs. At the same time, it gives your amplifiers a kickstart with its built-in 12V remote turn-on feature.

What Makes the OLH28C a Game-Changer?

Super Signal Conversion Skills: Say goodbye to distorted tunes and hello to clean, crisp sound! In fact, the OLH28C seamlessly transforms high-level signals from your head unit into low-level RCA outputs. As a result, your amps can work their magic.

Remote Turn-On Wizardry: Who needs switches when this clever converter powers up your amps the moment it detects an audio signal? Therefore, you can sit back and enjoy the ride—literally.

Two’s Better Than One: With dual-channel support, this converter can handle signals from two audio sources at once. In addition, your stereo system just leveled up!

Compact Powerhouse: Small enough to fit anywhere, tough enough to last a lifetime. Moreover, this durable little dynamo is built to keep your audio setup rockin’.

Set It Up and Jam Out

Installation? Easy peasy! First, connect the high-level input to your source device. Then, connect the low-level output to your amplifier. After that, hook up the built-in remote turn-on wire.

As a result, you’re ready to roll. No fuss, no stress—just pure audio bliss. Even better, first-timers will feel like pros.

  • 2 Channel Input and Output
  • Rugged Metal Housing
  • RCA Converter with Built-in 12V Remote Turn-On Signal
  • High Level Input
  • AC Signal Auto-Start
  • Adjustable Input Sensitivity
  • Power Supply - 11-15V DC
  • Max input - 50watts
  • Input impedance - 15K ohms
  • S/N ratio - 90dB
  • THD - 0.05%
  • Channel separation - 70dB
  • Frequency response - 10Hz-50kHz, -3dB
  • Product Dimensions: Approx. 2.13"W x 2.24"L x 0.9"H

Specifications

  • Input Voltage: 11-15V DC
  • Maximum Input: 50 watts
  • Input Impedance: 15K ohms
  • Signal-to-Noise Ratio (S/N): 90dB
  • Total Harmonic Distortion (THD): 0.05%
  • Channel Separation: 70dB
  • Frequency Response: 10Hz-50kHz, -3dB
  • Dimensions: Approx. 2.13"W x 2.24"L x 0.9"H
