Orion HCCA3000.1DSPLX HCCA Class D Monoblock Amplifier 3000 Watts RMS 1 Ohm SPLX

Availability:
Low stock
SKU ORI-HCCA3000.1DSPLX
Orion HCCA3000.1DSPLX HCCA Class D Monoblock Amplifier 3000 Watts RMS 1 Ohm SPLX

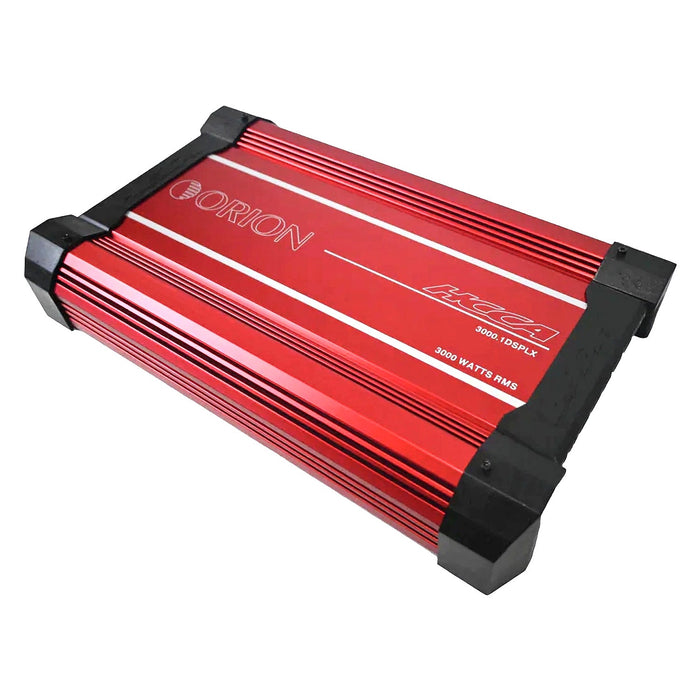

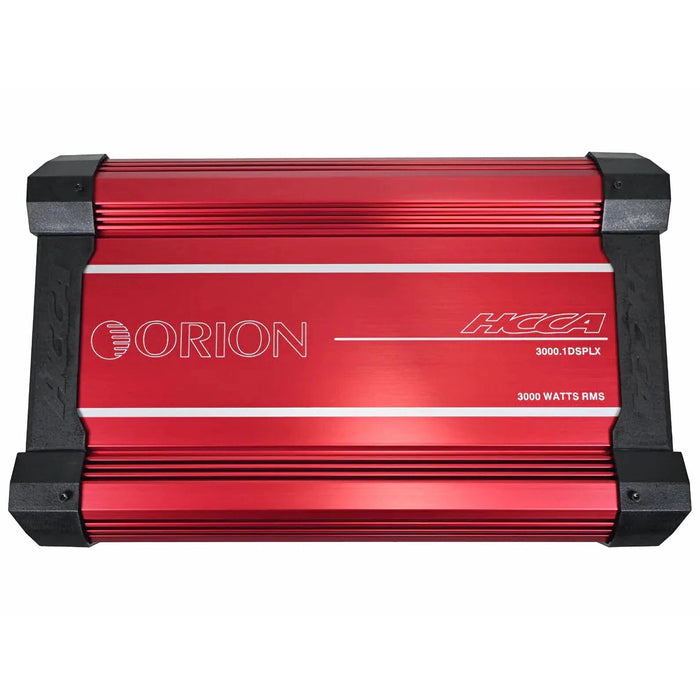

This is Orion's HCCA3000.1DSPLX Monoblock amplifier. This is part of their Competition series. This is a beast of a machine, and made for serious audio competitor and enthusiasts. This Mono Channel amplifier is designed and crafted with the best components on the market. Built in a heavy duty rugged die-cast aluminum heatsink with great internal components. This amplifier is sure to get the job done and includes a bass knob.

RMS Power @ 4 Ohms MONO @ 0.5% THD+N 1350 Watts
RMS Power @ 2 Ohms MONO @ 0.5% THD+N 2100 Watts
RMS Power @ 1 Ohms MONO @ 0.5% THD+N 3000 Watts

12dB/Octave Low-Pass Filter
Frequency Respose: 20Hz to 250Hz
Low Pass Crossover: 40Hz ~ 300Hz
Signal to Noise Ratio: >65dB
THD at 1 Watts, 4 Ohm: <0.5

All MOSFET Power Supply and Output Stage
Electronic Crossover Network
Bass Boost Circuit

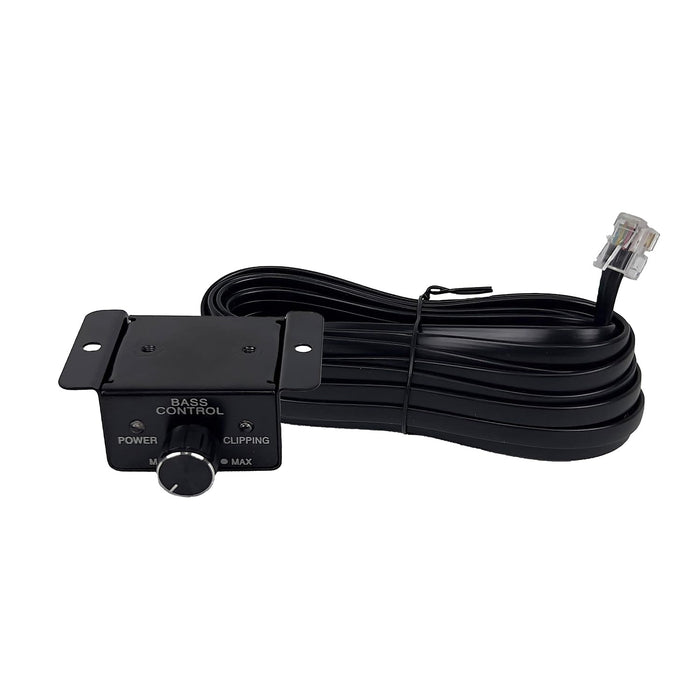

Remote Gain Control
Low Pass Filter Control
Power and Protection LED Indicators
Phase Control 0 ~ 180°
Soft Turn-on / Turn-off
Balanced Input (CMRR)

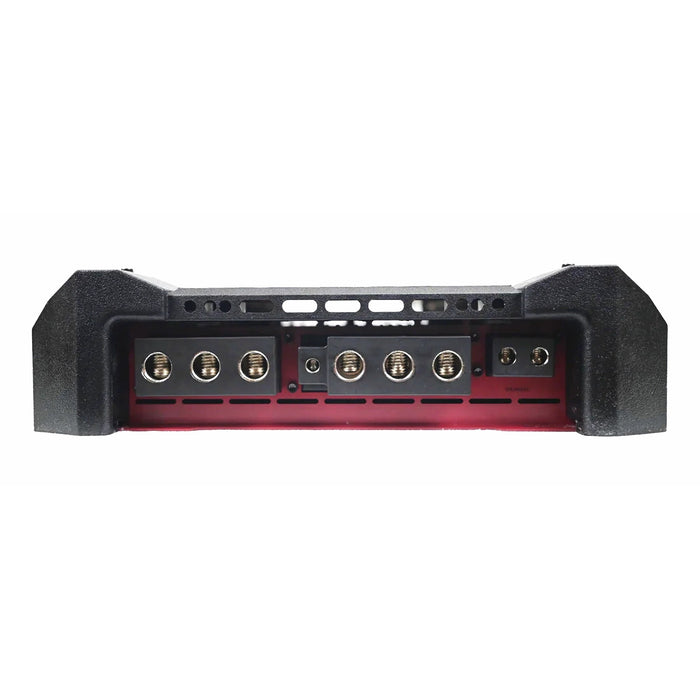

Heavy Gauge Direct-Wire High Current Power and Speaker Terminals

Length(in/cm): 18.9" / 48.0cm
Height(in/cm): 3.0" / 7.7cm
Depth(in/cm): 11.8" / 30.2cm
