Orion Cobalt CBT4500.1D Mono Block Class D Amplifier 4500 Watts Max Music Power 1 OHM


Sorry, this product has been discontinued.

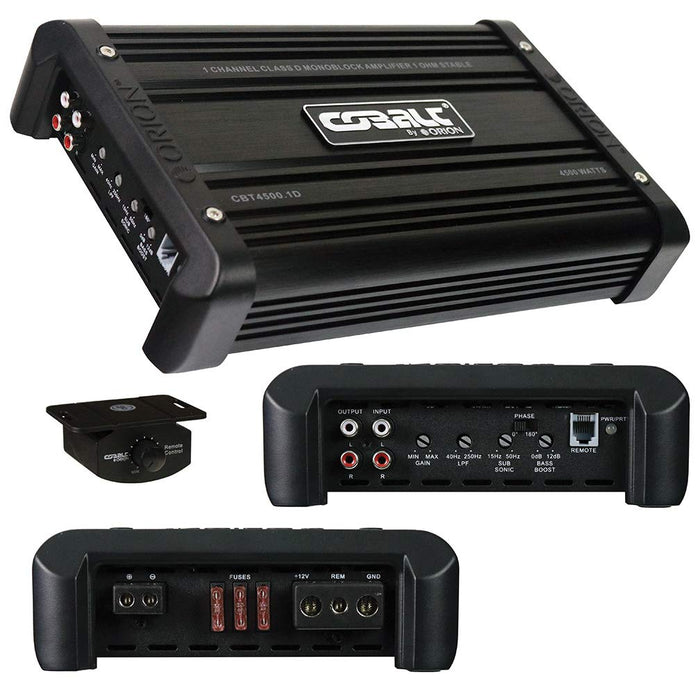

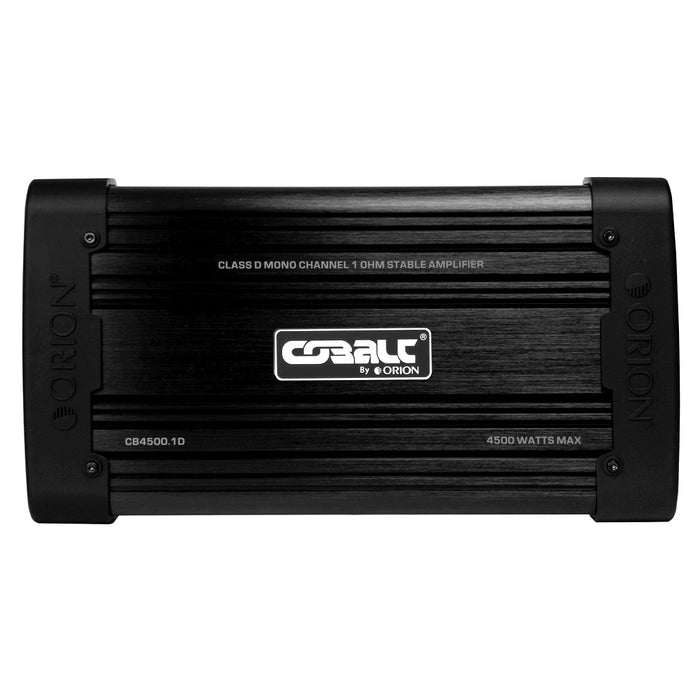

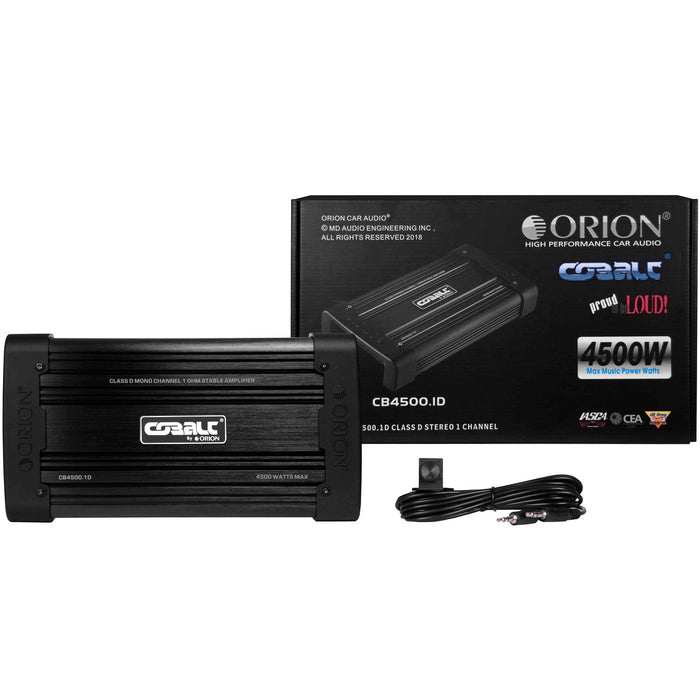

Orion CBT4500.1D Mono Block Class D Compact Car Audio Amplifier 4500W Max

Car Audio 1-Channel Monoblock Class D Amplifier
Model: CBT4500.1D Cobalt Series
Max Music Peak Power: 4500W
Total Musical Watts: 2300W
Watts @ 1 Ohm Mono 14.4V: 1200W
Frequency Response: 10Hz-250Hz(-3dB)
Signal noise ratio: 90dB
Input Impedance: 22k ohm
Input sensitivity: 200mV-6V
THD: <0.1%
Low Pass Frequency: 40Hz-250Hz
Bass Boost: 0/12dB
Phase: 0°/180°
Supply voltage: 10~16V DC
Power and Protection LED Indicators
Soft Turn-on/ Turn-off
Wired remote bass level control included
Dimensions(mm): 312 x 185 x 62
