Orion CBA4500.4 Cobalt Series 4500 Watts Max 4-Channel Class A/B Car Audio Amplifier

Availability:
Low stock
SKU ORI-CBA4500.4

Orion CBA4500.4 Cobalt Series 4500 Watts Max 4-Channel Class A/B Car Audio Amplifier

Upgrade your car audio system with the ORION CBA4500.4 COBALT Series Amplifier, engineered to deliver powerful, crystal-clear sound that transforms every drive into a concert-like experience. With an impressive 4500 watts of peak power and a robust Class A/B design, this amplifier combines efficiency with exceptional audio quality. Built for durability and precision, it offers advanced customization options like adjustable crossovers and bass boost, ensuring your music hits exactly the way you want. Plus, with intelligent protection circuitry and heavy-duty components, you can enjoy worry-free performance even under demanding conditions. Whether you crave deep bass, sharp highs, or balanced mids, the ORION CBA4500.4 is your ultimate solution for superior sound on the road.

  • Class A/B Amplification for high-quality, efficient sound performance.
  • 4500-Watt Peak Power delivers dynamic, immersive audio.
  • Adjustable Low-Pass Crossover for precise frequency control.
  • Customizable Bass Boost to enhance low-end response.
  • Advanced Protection Circuitry safeguards against overheating, short circuits, and voltage issues.
  • Heavy-Duty MOSFET Power Supply for reliable, long-lasting operation.
  • High-Current Terminals ensure secure, efficient power and speaker connections.
  • 2-Ohm Stable Design for flexible system configurations.
  • Electronic Crossover Network for optimized sound tuning.
  • Soft Turn-On/Turn-Off & LED Indicators for smooth operation and status monitoring.
  • 4-Way Protection: Thermal, DC offset, short protection, under/over voltage.
  • RMS Power Ratings:
    • 4 x 175W @ 2 Ohms
    • 4 x 110W @ 4 Ohms
    • 2 x 350W bridged @ 4 Ohms

Specifications:

  • Frequency Response: 10Hz - 30kHz
  • High Pass Crossover Continuously variable (50-1.2kHz)
  • Low Pass Crossover Continuously variable (40-250Hz)
  • Supply Voltage: 10 - 16V
  • Input Impedance: 22kOhm
  • Signal to Noise Ratio: >90dB
  • Bass Boost: 0/3/6dB Switch
  • Variable Input Level Control: 0.2V - 6.0V
  • Fuses: 120A recommended (3 x 40A ATC)
  • Dimensions (L x W x H): 16.5" x 7.09" x 2.13" (419x180x54mm)

Power Ratings:

  • RMS WATTS @ 2 Ohms: 4 x 175W
  • RMS WATTS @ 4 Ohms: 4 x 110W
  • RMS WATTS @ 4 Ohms Bridge: 2 x 350W

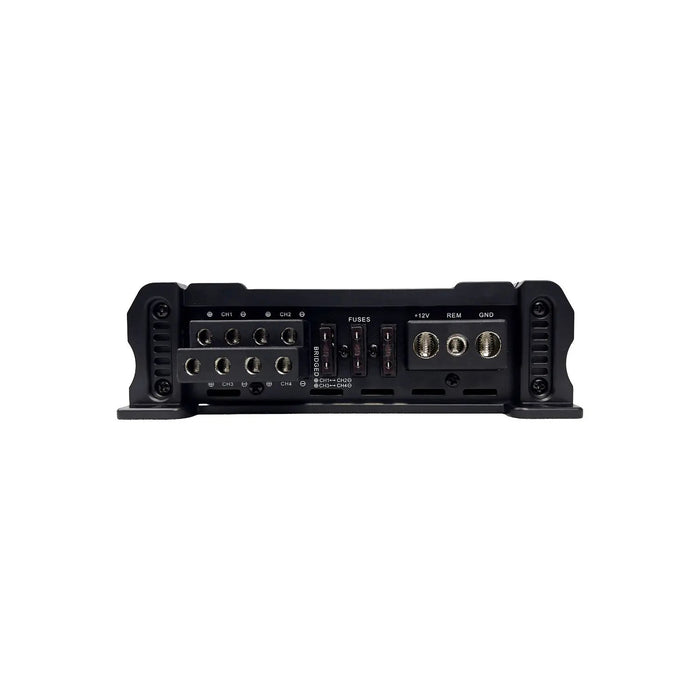

  • POWER TERMINAL MANAGEMENT:
    • Positive Terminals: 1 x 4 AWG.
    • Negative Terminals: 1 x 4 AWG.
    • Remote Turn-ON Signal: 10 AWG.
    • Speaker Output Terminals: 10 AWG.
