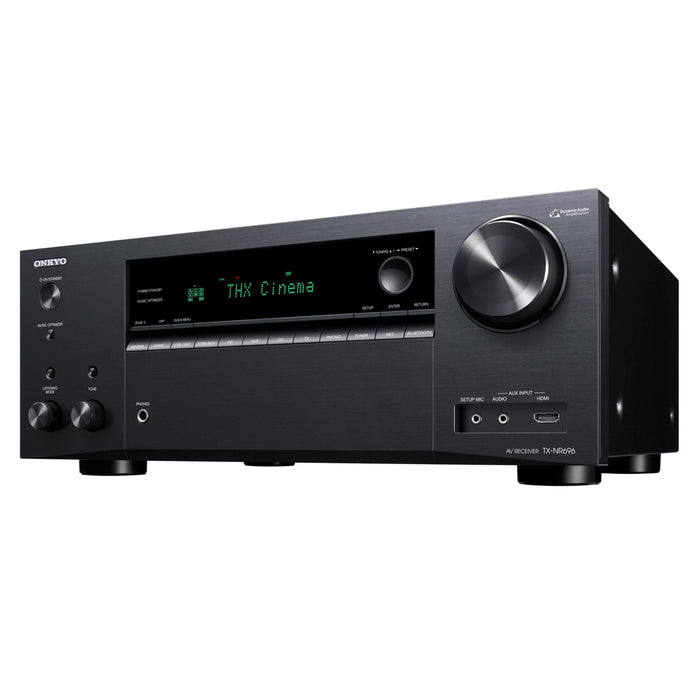

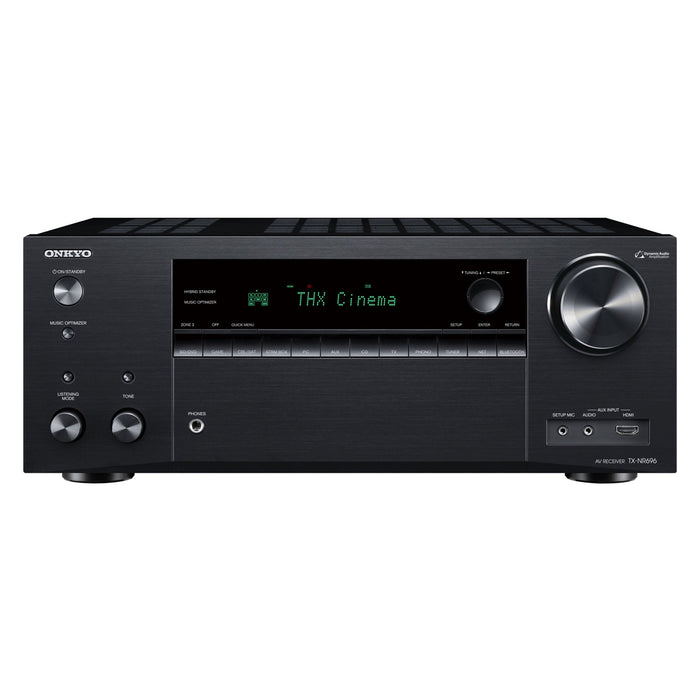

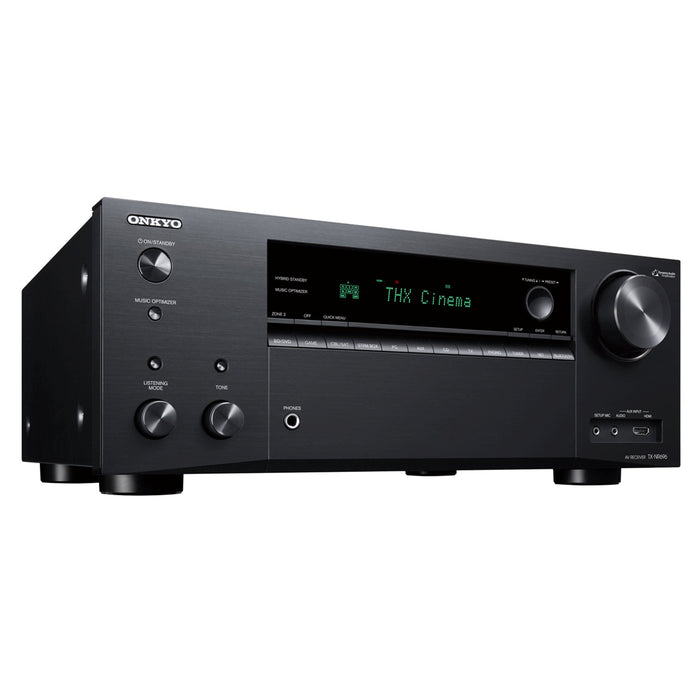

Onkyo TX-NR696 7.2-Channel Network Home Theater Receiver with Bluetooth - Certified Refurbished

Onkyo TX-NR696 7.2-Channel Network Home Theater Receiver with Bluetooth - Certified Refurbished
SKU ONK-TX-NR696M2-RB

Sorry, this product has been discontinued.

Onkyo TX-NR696 Home Audio Smart Audio and Video Receiver, Sonos Compatible and Dolby Atmos Enabled, 4K Ultra HD and AirPlay 2 (Certified Refurbished)*

The Onkyo TX-NR696 is a smart AV receiver that delivers immersive sound and seamless connectivity for your home entertainment system. It supports Dolby Atmos and DTS:X formats for 3D audio, THX Certified Select for reference sound quality, and Klipsch Optimize Mode for easy integration with Klipsch speakers. You can stream music from various online services and devices using Chromecast built-in, Works with Sonos, AirPlay 2, and DTS Play-Fi.

With the Onkyo TX-NR696, you can also control the receiver with your voice using a smart speaker with the Google Assistant. You can adjust the volume, change the input, play your favorite songs, and more with simple voice commands. The Onkyo TX-NR696 is the perfect choice for anyone who wants to enjoy the emotion in every sound source.

PRODUCT HIGHLIGHTS:

  • 210 W/Ch THX Certified Select DAA system
  • SMART AV Receiver Works with Sonos, Chromecast built-in, AirPlay 2, DTS Play-Fi, FlareConnect, Spotify, Amazon Music, Pandora, TIDAL, Deezer, TuneIn
  • Supports 5.2.2-ch Dolby Atmos and DTS:X playback
  • Dolby Atmos Height Virtualizer and DTS Virtual:X
  • Refined HDMI grounds, separate SoC board, enhanced power amps
  • HDMI Sub/Zone 2 output shares media to a second display or projector
  • Quad-core SoC supports 802.11ac (2x2 MIMO) Wi-Fi specification
  • Zone 2/Zone B line-out with DAC shares D/A audio (including HDMI/SPDIF)
  • Separate Zone 2 outputs distribute D/A audio sources (including HDMI/SPDIF)
  • Stereo Assign Mode to switch Front playback to Height channels
  • DSP-based Vocal Enhancer improves dialog audibility
  • GUI with OSD via HDMI features media input/output data display function
  • HDMI supports 4K/60p, 4K HDR, 4:4:4/24-bit, BT.2020, HDCP 2.2
  • AccuEQ Advance with AccuReflex
  • One-touch volume memory-presets for A/V inputs

*Certified Reconditioned: The item may have minor cosmetic damage.

Power output (All channels)
210 W/Ch
(6 ohms, 1 kHz, 10% THD, 1-ch driven)
100 W/Ch (8 ohms, 20 Hz–20 kHz,
0.08% THD, 2-ch driven, FTC)
Dynamic power 240 W (3 ohms, Front)
210 W (4 ohms, Front)
120 W (8 ohms, Front)
THD+N (Total Harmonic Distortion + Noise)
0.08% (20 Hz–20 kHz, half power)
Input sensitivity and impedance
200 mV rms/47 k-ohms (Line)
3.5 mV rms/47 k-ohms (Phono MM)
Rated RCA output level and impedance
1 V rms/470 ohms (Subwoofer pre-out)
200 mV rms/2.3 k-ohms
(Zone B/Zone 2 line-out)
Frequency response 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Tone control ±10 dB, 20 Hz (Bass)
±10 dB, 20 kHz (Treble)
Signal-to-noise ratio 106 dB (Line, IHF-A)
80 dB (Phono, IHF-A)
Speaker impedance 4 ohms–16 ohms
Tuner Section
Tuning frequency range
FM 87.5 MHz–107.9 MHz
AM 530 kHz–1,710 kHz
FM/AM preset memory 40 Stations
General
Power supply AC 120 V~, 60 Hz
Power consumption 635 W
No-sound power consumption
65 W
Standby power consumption
0.15 W
Dimensions (W x H x D) 17 1/8˝ x 6 13/16˝ x 14 15/16˝
(435 x 173.5 x 379.5 mm)
Weight 22.0 lbs. (10.0 kg)
