Onkyo TX-NR5100 7.2-Channel 8K AV Receiver with Dolby Atmos Alexa Compatible

Availability:
Low stock
SKU ONK-TX-NR5100
Sale Sale

Onkyo TX-NR5100 7.2-Channel 8K AV Receiver with Dolby Atmos Alexa Compatible

The Onkyo TX-NR5100 7.2-Channel 8K AV Receiver is an affordable and versatile home theater centerpiece tailored to deliver a best-in-class entertainment experience for your movies, music, and next-gen gaming systems.

Our SMART AV Receiver™ combines the latest in HDMI 2.1 and 8K tech, high-res audio, and immersive sound via your connected media players, gaming consoles, and advanced audio from your TV apps via eARC for an unparalleled home theater experience.

Smart Home Compatible with Voice Control

The Onkyo TX-NR5100 7.2-Channel 8K SMART AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can operate seamlessly in your multi-room ecosystem.

HDMI® 2.1 with 8K

HDMI® 2.1 is the most recent update of the HDMI® spec and supports eARC, a range of higher video resolutions and refresh rates including 8K60 and 4K120, and Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K and eARC ensures your system is ready for the clearest and cleanest picture available both now and down the road.

Ultimate 4K Gaming Experience

4K/120 enables ultra-fast motion UHD images to be crisp and razor-sharp; and sports, action movies, and high-performance gaming benefit significantly.

Features:

  • 165 watts x 7 channels    ✓
  • 5.2.2-ch Dolby Atmos® and DTS: X® playback    ✓
  • Dolby Atmos Height Virtualizer and DTS Virtual:X™ 3D sound virtualization technologies    ✓
  • SMART AV Receiver™: Works with Sonos (sold separately), Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music HD, Alexa, Pandora®, TIDAL, Deezer, and TuneIn streaming services
  • Works with Hey Google or Alexa*    Digital Voice Assistant Sold Separately
  • Stream Capability:    5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard
  • HDMI® 2.1:    Supports: 4K120AB and 8K60B, HDR10+, Dolby Vision and BT.2020 color; VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and QFT (Quick Frame Transport); eARC (Main Out), and HDCP 2.3
  • HDMI Sub Out:    For media transmission to a projector, gaming monitor, or TV
  • Send or receive audio via Bluetooth® wireless technology (RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX™/ aptX HD)    ✓
  • Zone B pre-/line-out plays MAIN Zone audio to a compatible headphone dock    ✓
  • Vocal Enhancer, media info and playback status display, and one-touch volume memory-preset functions    ✓
  • AccuEQ with AccuReflex™ and subwoofer EQ    ✓

Speacification:

  • Power output (All channels)    165 W/Ch (6 ohms, 1 kHz, 10% THD, 1-ch driven) 80 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
  • Dynamic power    160W (3 ohms, Front) 125W (4 ohms, Front) 85W (8 ohms, Front)
  • THD+N (Total Harmonic Distortion + Noise)    0.08% (20 Hz–20 kHz)
  • Input sensitivity and impedance    200mVrms/32k-ohms (Line)
  • Rated RCA output level and impedance    1Vrms 200m Vrms/2.2k-ohms(Zone B PreLine-out)
  • Frequency response    10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
  • Tone control    ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
  • Signal-to-noise ratio    106 dB (Line, IHF-A)
  • Speaker impedance    4–16 ohms

Tuner:

  • FM    87.5 MHz–107.9 MHz
  • AM    530 kHz–1,710 kHz
  • FM/AM preset memory    40 stations

GENERAL:



  • Power supply    AC 120 V~, 60 Hz
  • Power consumption (operating)    490 W
  • Power consumption (idle)    45 W
  • Power consumption (standby)    0.1 W
  • Dimensions (W x H x D)    17 1/8˝ x 6 5/16˝ x 12 15/16˝ (435 x 160 x 328 mm)
  • Weight    18.5 lbs. (8.4 kg)

  • Indoor FM antenna
  • AM loop antenna
  • Speaker setup microphone
  • Quick Start Guide

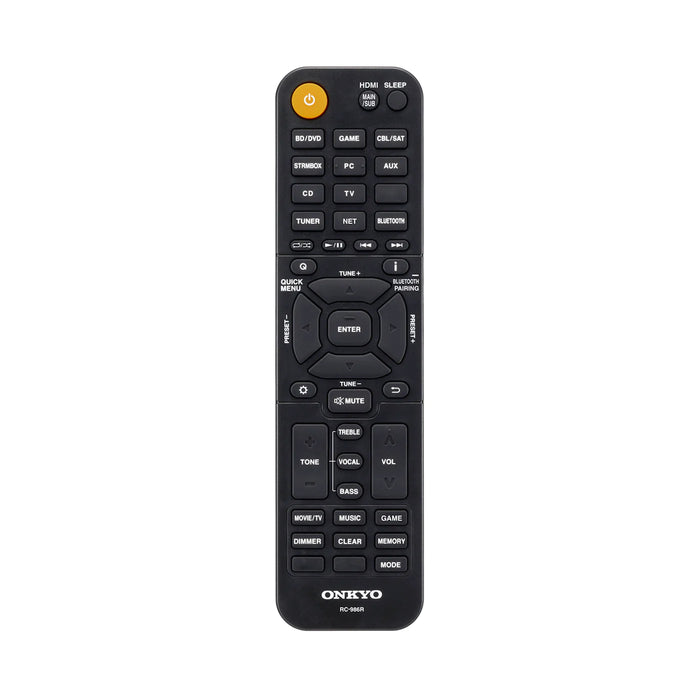

  • Remote control
  • Two AAA (R03) batteries
