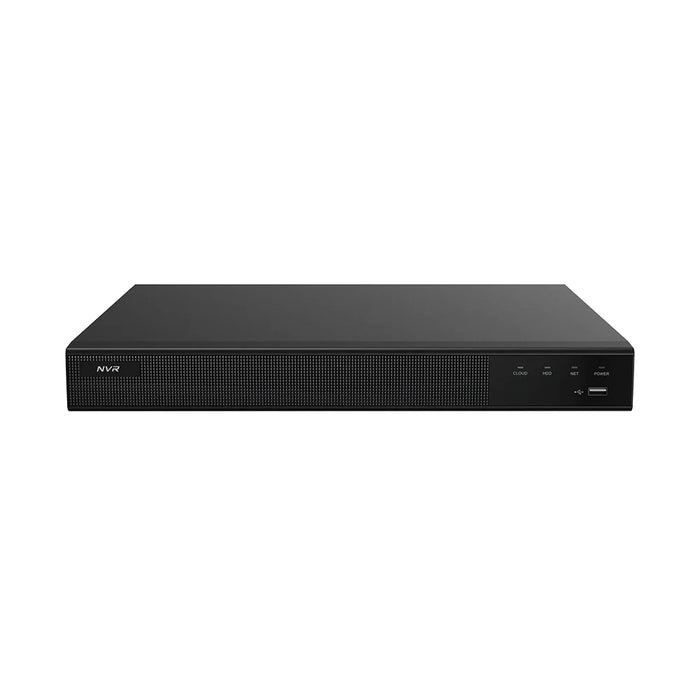

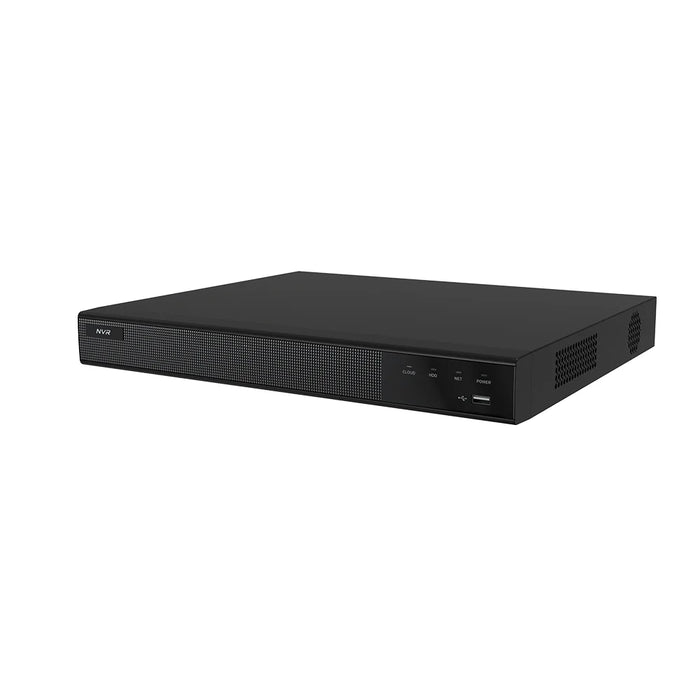

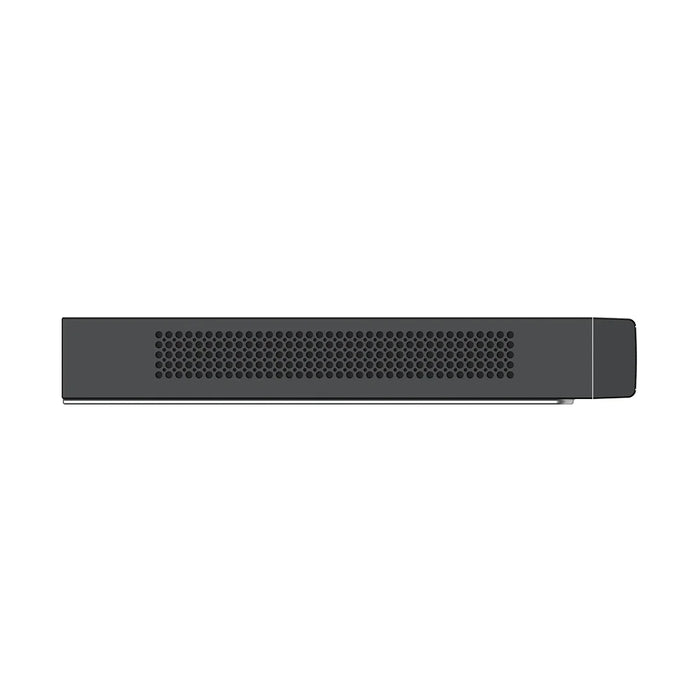

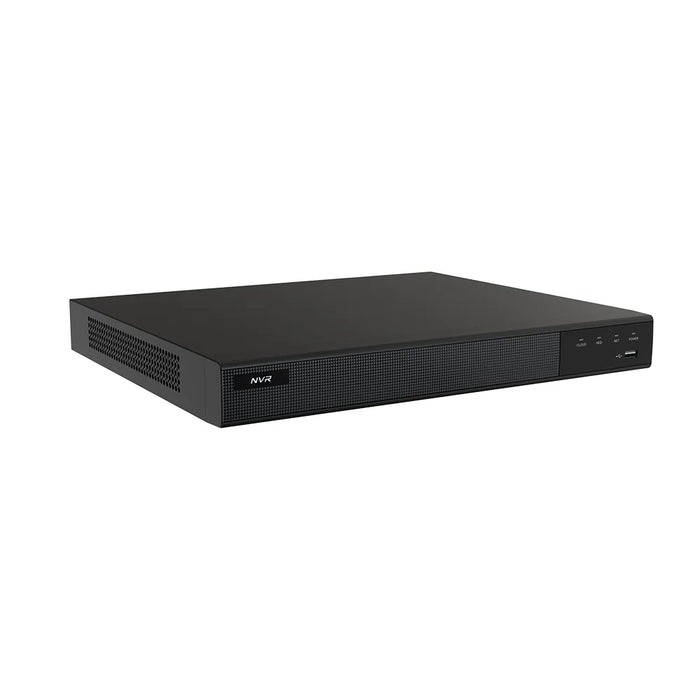

32-Channel NVR 16MP 16 PoE Ports AI Light Network Video Recorder (No HDD)

32-Channel NVR 16MP 16 PoE Ports AI Light Network Video Recorder (No HDD)
Availability:
Low stock
SKU CST-NR-K232H-P16

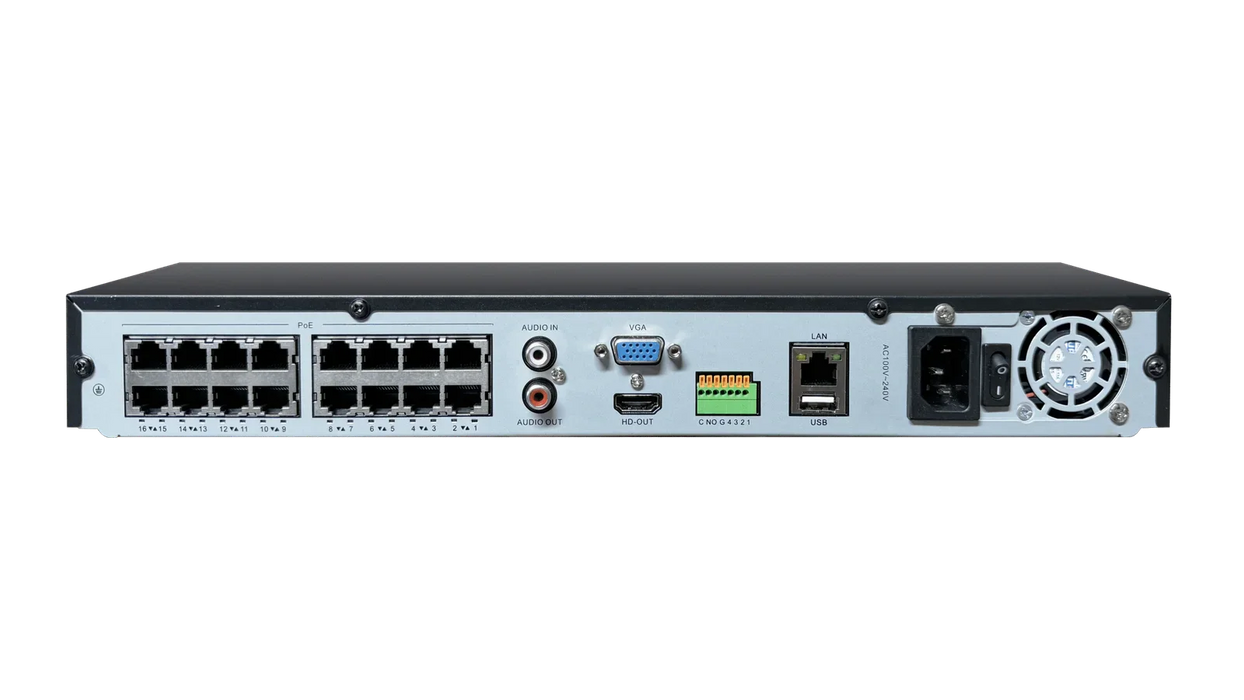

NR-K232H-P16 AI Light 32-Channel 16MP 16 PoE Ports Network Video Recorder (No HDD included)

32CH 16MP NVR with 16CH POE ports, 256Mbps, 32CH input max, 2 x SATA, 17 x RJ-45, Alarm I/O 4/1, Audio I/O 1/1, Plug & Play With SMD, Face Detection, Face Recognition, Intrusion Detection, Line Crossing Detection, Region Entrance, Region Exiting, Loitering Detection, People Gathering Detection, Illegal Parking, Line Crossing Count, LPD(License Plate Detection), LPR（License Plate Recognition), Object Left Behind, Object Removed, Heat Map

  • Supports up to 32 IP cameras
  • Records at up to 16MP resolution
  • 16 built-in PoE ports with 200W total power budget
  • Dual HDD support up to 20TB total storage
  • 4K HDMI output
  • H.265+ compression for reduced bandwidth and storage use
  • Remote viewing via web browser, PC software, and mobile apps
  • ONVIF Profile S/T compatible for broad camera compatibility

Specifications

System

  • Main Processor    Quad Cortex A53
  • Operating System    Embedded LINUX

Video

  • Input    32ch(16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/1280×1024/960p/720p/D1/CIF)
  • Output    1*HD,1*VGA

Audio

  • Input    1 Port RCA, support 32CH IPC audio input
  • Output    1 Port RCA(Linear, 1kΩ), HD output
  • Audio Bit Rate    64kbps
  • Audio Compression standard    G711U, G711A, AAC, MP2L2
  • Intercom    support (two-way)

Alarm

  • Sensor Input    4CH
  • Output    1CH
  • Motion Detection    32Channel, MD Zones: 396 (22 × 18)
  • Trigger Events    Recording, Email, FTP, Snapshot and Screen Tips, Pop-up Window, Buzzer, Notify Surveillance Center, Alarm Output

Display

  • HD Output1    4K(3840*2160)/2K(2560*1440)/1920*1080/1280*1024/1280*720/1024*768
  • HD Output2    N/A
  • VGA    Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Display Split    36CH/25CH/17CH/16CH/13CH/10CH/9CH/8CH/6CH/4CH/2CH/1CH
  • Digital Zoom    YES
  • OSD    Camera Title, Time, Recording, Motion Detection, Event Alarm

Recording

  • Video Compression    H265/H264/H265+/H264+
  • Resolution    16MP(7680×2160)12MP(4000×3000),8MP(3840×2160),6MP(3072×2048),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),1280×1024,960P(1280×960),720P(1280×720),960H(960×480),D1 (720×576/720×480)
  • Record Rate    PAL :16MP@25CHx20fps,12MP@25CHx25fps,8MP@32CHx25fps,5MP@32CH×25fpss,4MP@32CHx25fps,3MP@32CH×25fps,1080P@32CH×25fps, 960P@32CH×25fps,720P@32CH×25fps, D1@32CH×25fps
  • NTSC: 16MP@25CHx20fps,12MP@25CHx30fps,8MP@32CHx30fps,5MP@32CH×30fps,4MP@32CH×30fps,3MP@32CH×30fps,1080P@32CH×30fps, 960P@32CH×30fps, 720P@32CH×30fps, D1@32CH×30fps
  • Record Mode    Manual\Timer\Motion Detection\ Alarm\Smart Event

Playback & Backup

  • Local Sync Playback    1CH 16MP@25fps, 2CH 12MP@30fps,4CH 8MP@30fps,6CH 5MP@30fps,8CH 4MP@30fps, 16CH 1080P@30fps, 16CH 960P@30fps, 16CH 720P@30fps,16CH D1@30fps
  • Decode Capability    1080P(1920×1080)@480fps
  • Remote Sync Playback    YES
  • Search Mode    ALL, Timing Video, Motion Detection, Alarm,Tag  search,Smart Event,Pictrue,Log
  • Playback Functions    Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio
  • Backup Mode    USB Device/Network

Network

  • Interface    1xRJ45 10M/100/1000MAdaptive Ethernet Interface
  • Incoming Bandwidth    256Mbps
  • Outgoing Bandwidth    160Mbps
  • Network Functions    IPv4/IPv6/TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE, SNMP
  • Onvif    Profile S, Profile T
  • Web Browser    Edge,IE8-11, Google Chrome , Firefox ,Safari
  • CMS Software    Support  Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS
  • Cloud Support    Yes
  • Smart Phone    iPhone,  Android
  • POE    16 x Independent 100Mbps POE Network Interfaces(Output power AF mode 15W per port), 45/78 line order, Total Power Output≤ 200W,  Support Plug and Play, Support network cable extended mode Max. 200M
  • WIFI    N/A

Storage

  • Interface Type    2 SATA Hard Disk Interface (3.5″ SATA)
  • Capacity    Up to 10 TB capacity for each HDD
  • eSATA    N/A

General

  • Language  UI    Simplified Chinese, Traditional Chinese, English, Polski, Czech, Arabic, German, French, Portuguese, Spanish, Italian, Hungarian, Korean, Dutch, Greek, Janpanese, Ukrainian, Kazakh
  • USB Interface    Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
  • RS485    N/A
  • Power consumption    100-240VAC , 50/60Hz   ≤15W(Without Hard Disk and POE)
  • Working Environment    -10℃～50℃, 10%～90%(humidity)
  • Product Dimension(W×D×H)    380 x 316 x 51mm
  • Net Weight    2.58kg(without HDD)
  • Gross Weight    3.48≤ kg(without HDD)
