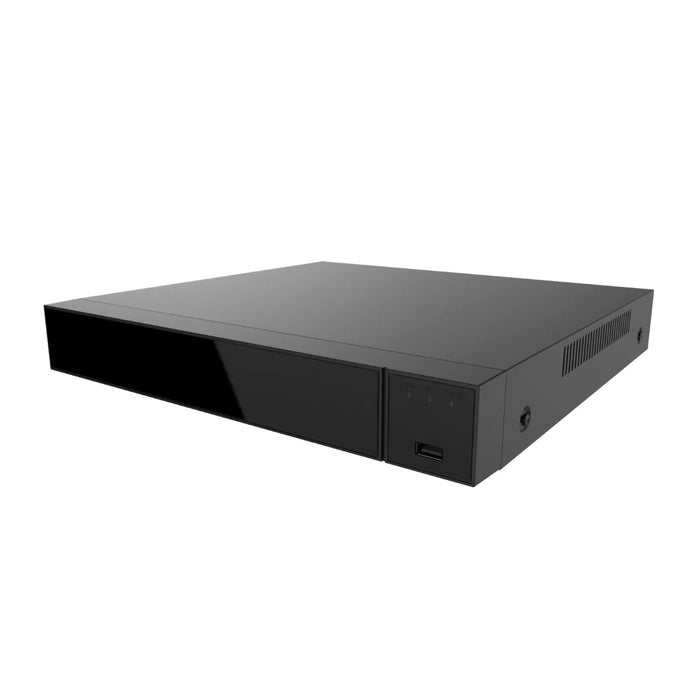

16-Channel NVR 12MP 8 PoE Ports AI Light Network Video Recorder (No HDD)

Availability:
Low stock
SKU CST-NR-K116H-P8

NR-K116H-P8 AI Light 16-Channel 12MP 8 PoE Ports Network Video Recorder 1HDD (No HDD included)

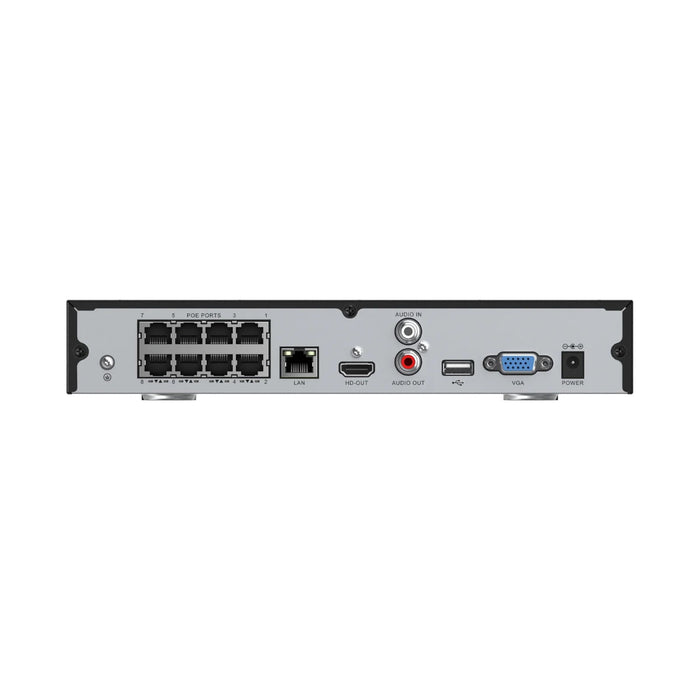

16CH 12MP NVR with 8CH POE ports,128Mbps, 16CH input max, 1 x SATA, 9x RJ-45, Audio I/O 1/1, Plug & Play With AI Management Function

  • 16-channel IP camera NVR
  • Supports up to 12MP recording
  • HDMI output up to 4K resolution
  • H.265/H.265+ video compression
  • 8-port built-in PoE switch (72W total)
  • Supports up to 10TB HDD
  • ONVIF Profile S & T compatible
  • Mobile viewing on iPhone and Android
  • Two-way audio and remote playback supported

Specifications

System

  • Processor: Dual-Core Cortex-A53
  • Operating System: Embedded Linux

Video

  • IP Camera Support: Up to 16 channels
  • Supported Resolutions: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, CIF
  • Video Outputs:
    • 1 × HDMI
    • 1 × VGA

Audio

  • Audio Input: 1 × RCA (supports audio from up to 16 IP cameras)
  • Audio Output: 1 × RCA Line Out + HDMI audio
  • Compression: G.711A / G.711U
  • Bit Rate: 64 kbps
  • Two-Way Audio (Intercom): Supported

Alarm & Motion Detection

  • Alarm Inputs/Outputs: Not available
  • Motion Detection: 16 channels, up to 396 detection zones per channel
  • Trigger Actions:
    • Recording
    • Email notifications
    • FTP upload
    • Snapshot capture
    • On-screen alerts

Display Features

  • HDMI Resolution Support:
    • 4K (3840 × 2160)
    • 2K (2560 × 1440)
    • 1080p, 720p, and lower resolutions
  • VGA Resolution Support:
    • Up to 1920 × 1080
  • Multi-Screen Display Modes:
    • 1, 4, 6, 8, 9, 10, 13, or 16 camera views
  • Digital Zoom: Yes
  • On-Screen Display (OSD):
    • Camera name
    • Time/date
    • Recording status
    • Motion alerts
    • Event alarms

Recording

  • Video Compression:
    • H.265
    • H.265+
    • H.264
    • H.264+
  • Maximum Recording Resolution: 12MP
  • Recording Modes:
    • Manual
    • Scheduled (Timer)
    • Motion Detection
    • Smart Events
  • Recording Performance:
    • Up to 16 channels at 4K/5MP/4MP/3MP/1080p in real-time (25fps PAL or 30fps NTSC)

Playback & Backup

  • Local Playback:
    • Up to 1 channel at 12MP
    • Up to 16 channels at 720p or D1
  • Decoding Performance: 1080p @ 210 fps
  • Remote Playback: Supported
  • Search Options:
    • Time
    • Motion
    • Smart Events
    • Pictures
    • Tags
    • Logs
  • Playback Controls:
    • Play
    • Pause
    • Fast Forward/Rewind
    • Frame-by-Frame
    • Digital Zoom
    • Clip Export
    • Audio Playback
  • Backup Methods:
    • USB storage
    • Network backup

Network

  • Network Port: 1 × Gigabit RJ45 (10/100/1000 Mbps)
  • Incoming Bandwidth: 128 Mbps
  • Outgoing Bandwidth: 80 Mbps
  • Protocol Support:
    • IPv4 / IPv6
    • HTTP / HTTPS
    • DHCP
    • FTP
    • SMTP
    • DDNS
    • RTSP / RTCP
    • UPnP
    • PPPoE
    • P2P
  • ONVIF Compatibility:
    • Profile S
    • Profile T
  • Browser Support:
    • Edge
    • Internet Explorer 8–11
    • Chrome
    • Firefox
    • Safari
  • CMS Software:
    • Windows 7 / 8 / 10 / 11
    • macOS
  • Mobile App Support:
    • iPhone (iOS)
    • Android
  • Cloud Access: Yes

PoE (Power over Ethernet)

  • PoE Ports: 8 independent 100 Mbps ports
  • Per-Port Power:
    • 30W (802.3at)
    • 15W (802.3af)
  • Total PoE Power Budget: 72W
  • Features:
    • Plug-and-play camera connection
    • Extended mode up to 200m network cable distance

Storage

  • Drive Bays: 1 × SATA (3.5")
  • Maximum HDD Capacity: 10TB
  • eSATA: Not supported

General

  • Languages: 20+ languages including English, Spanish, French, German, Italian, Portuguese, Russian, Arabic, Korean, Japanese, Dutch, Polish, Czech, Greek, Ukrainian, and more
  • USB Ports: 2 × USB 2.0
  • RS485: Not available
  • Power Supply: DC 48V / 1.87A
  • Power Consumption: ≤10W (without HDD)
  • Operating Temperature: -10°C to 50°C (14°F to 122°F)
  • Humidity: 10%–90%
  • Dimensions: 260 × 230 × 43 mm (10.2 × 9.1 × 1.7 in)
  • Weight:
    • Net: 0.78 kg (without HDD)
    • Gross: 1.52 kg (without HDD)
