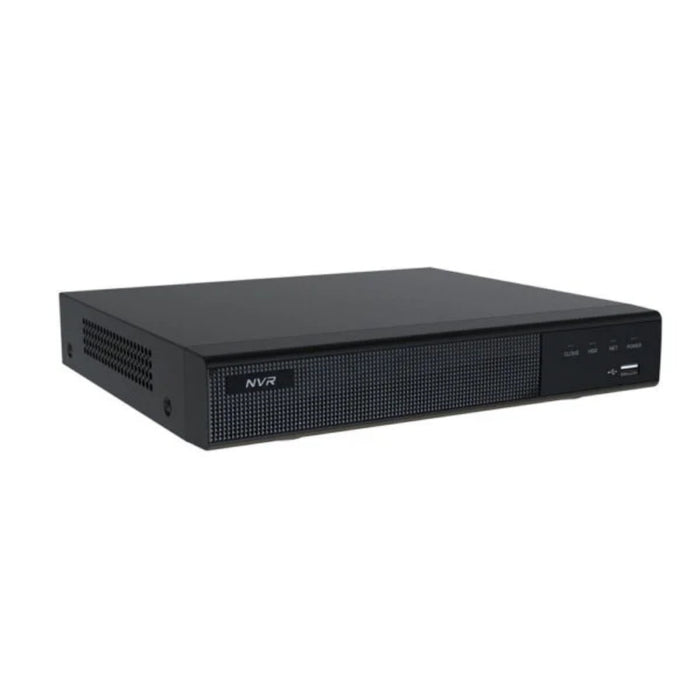

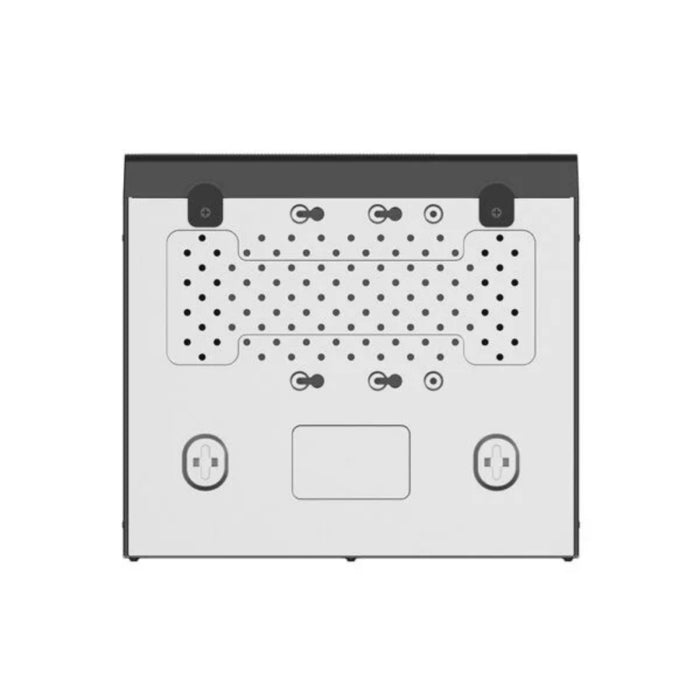

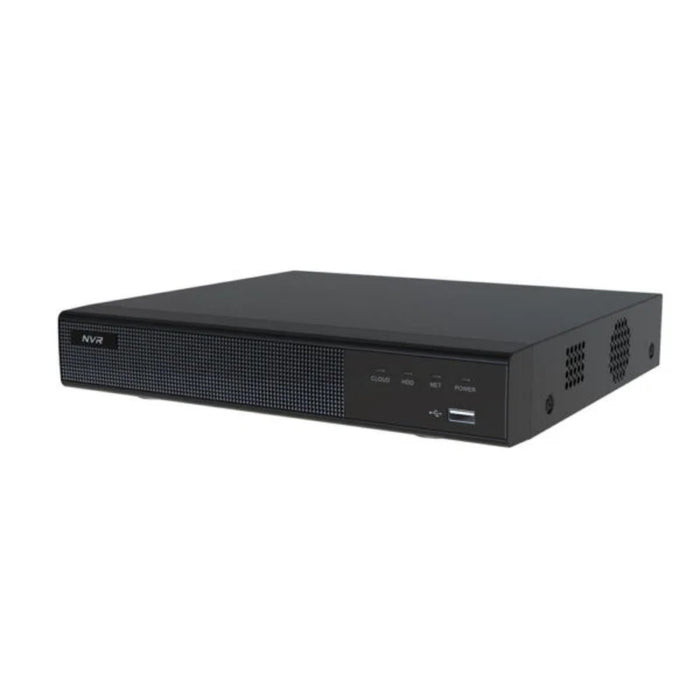

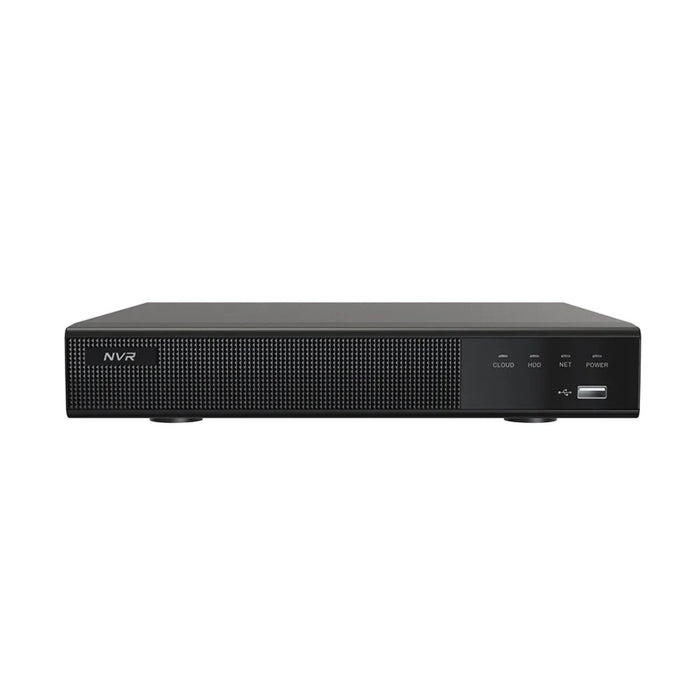

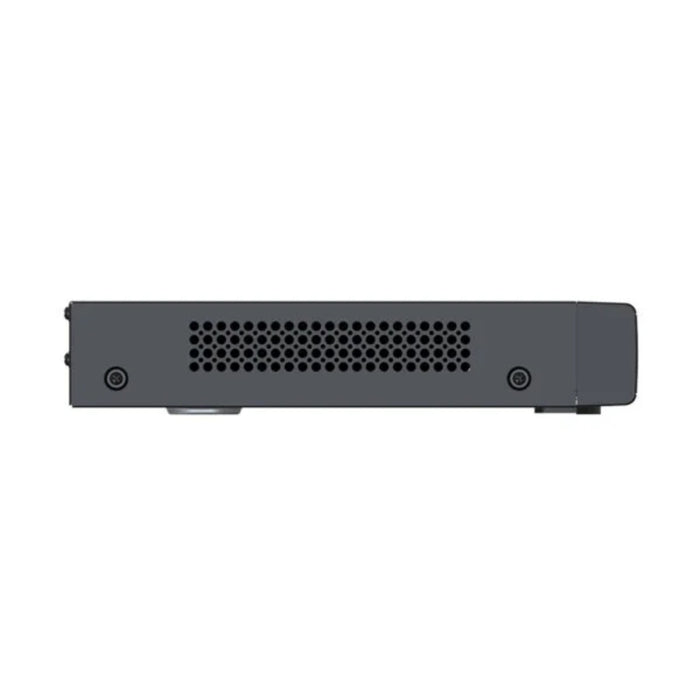

9-Channel 12MP NVR 4 PoE Ports 1X SATA Network Video Recorder with AI Management Function

9-Channel 12MP NVR 4 PoE Ports 1X SATA Network Video Recorder with AI Management Function
Availability:
Low stock
SKU CST-NR-5109N-P4

NR-5109N-P4 9-Channel 4 PoE Ports 12MP 1xSATA Network Video Recorder with AI Management Function (No HDD included)

4-Channel PoE ports and supports up to 5-Channel additional via PoE switch. 12MP NVR, 80Mbps, 9CH input max, 1x SATA, Plug & Play, Audio 1CH In/ 1CH Out, with AI Management Function

Docs/Instruction Links

Specifications

System

  • Main Processor  -  Dual Cortex A53
  • Operating System  -  Embedded LINUX

Video

  • Input  -  9CH(12MP/8MP/6MP/5MP/4MP/3MP/1080p/1280×1024/960p/720p/D1/CIF)
  • Output  -  1*HD,1*VGA

Audio

  • Input  -  1 Port RCA, support 9CH IPC audio input
  • Output   - 1 Port RCA(Linear, 1kΩ), HD output
  • Audio Bit Rate   - 64kbps
  • Audio Compression standard  -  G711U, G711A
  • Intercom   - support (two-way)

Alarm

  • Sensor Input  -  N/A
  • Output  -  N/A
  • Motion Detection  -  9 Channel, MD Zones: 396 (22 × 18)
  • Trigger Events  -  Recording, Email, FTP, Snapshot and Screen Tips

Display

  • HD Output1  -  4K(3840*2160)/2K(2560*1440)/1920*1080/1280*1024/1280*720/1024*768
  • HD Output2  -  N/A
  • VGA  -  1920×1080, 1280×1024, 1280×720, 1024×768
  • Display Split  -  9CH/8CH/6CH/4CH/1CH
  • Digital Zoom  -  YES
  • OSD  -  Camera Title, Time, Recording, Motion Detection, Event Alarm

Recording

  • Video Compression  -  H265/H264/H265+/H264+
  • Resolution  - 12MP(4000*3000),8MP(3840×2160),6MP(3072*2048),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),1280×1024,960P(1280×960),720P(1280×720),960H(960×480)D1(720×576/720×480)
  • Record Rate PAL:12MP@6CHx25fps,4K@9CHx25fps,5MP@9CH×25fps,4MP@9CHx25fps,3MP@9CH×25fps,1080P@9CH×25fps, 960P@9CH×25fps,720P@9CH×25fps, D1@9CH×25fps
  • NTSC:12MP@6CHx30fps,4K@9CHx30fps,5MP@9CH×30fps,4MP@9CH×30fps,3MP@9CH×30fps,1080P@9CH×30fps, 960P@9CH×30fps,720P@9CH×30fps,D1@9CH×30fps
  • Record Mode  -  Manual\Timer\Motion Detection\Smart Event

Playback & Backup

  • Local Sync Playback  -  1CH 12MP@30fps,1CH 8MP@30fps,2CH 5MP@30fps,4CH 4MP@30fps,7CH 1080P@30fps,9CH 720P@30fps,9CH D1@30fps
  • Decode Capability  -  1080P(1920×1080)@210fps
  • Remote Sync Playback  -  YES
  • Search Mode  -  ALL, Timing Video, Motion Detection, Tag  search,Smart Event,Pictrue,Log
  • Playback Functions  -  Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio
  • Backup Mode  -  USB Device/Network

Network

  • Interface  -  1 x RJ45(10M/100M Adaptive Ethernet Interface)
  • Incoming Bandwidth  -  80Mbps
  • Outgoing Bandwidth  -  80Mbps
  • Network Functions  -  IPv4/IPv6/TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
  • Onvif  -  Profile S, Profile T
  • Web Browser  -  Edge,IE8-11, Google Chrome , Firefox ,Safari
  • CMS Software  -  Support  Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS
  • Cloud Support  -  Yes
  • Smart Phone  -  iPhone,  Android
  • POE  - 4 x Independent 100Mbps POE Network Interfaces(Output Power AT mode 30W per Interface, AF mode 15W per Interface), 45/78 line order, Total Power Output 45W,  Support Plug and Play, Support network cable extended mode Max. 200M
  • WIFI  -  N/A

Storage

  • Interface Type  -  1 SATA Hard Disk Interface (3.5″ SATA)
  • Capacity  -  Up to 10TB capacity
  • eSATA  -  N/A

General

  • Language  UI  -  Simplified Chinese, Traditional Chinese, English, Polski, Czech, Russian, Arabic, German, French, Portuguese, Spanish, Italian, Hungarian, Korean, Dutch, Greek, Janpanese, Ukrainian, Kazakh
  • USB Interface  -  2 USB 2.0 Interfaces
  • RS485  -  N/A
  • Power consumption  -  DC48V/1.36A   ≤ 10W (Without Hard Disk)
  • Working Environment  -  -10℃～50℃, 10%～90%(humidity)
  • Product Dimension(W×D×H)  -  260*230*43(mm)
  • Net Weight  -  0.97kg(without HDD)
  • Gross Weight   - 1.53kg(without HDD)
