Woofer: 8” Black Glass Fiber Tight Weave woofer cone Woofer Size: 8 (Inches) Tweeter/Midrange: 1” Ultra Silk Tweeter Adjustment: Up to 20° pivot angle Sensitivity: 89dB for 2.83 volts of Pink Noise Frequency Response: 55Hz to 20kHz, +/- 3dB (on axis) Recommended Amplifier Power: 5-100 watts per channel Normal Impedance: 8 ohm nominal; 6 ohm minimum Overall Exterior Frame Dimensions: 10-5/8" diameter Depth Behind Wall: 3-3/4" deep (based on 1/2" drywall) Hole Cutout Dimensions: 9 3/4" (24.8 cm) Wiring Requirements (sold separately): 16 to 18 gauge stranded wire for up to 80 feet 14 gauge stranded wire for up to 200 feet. Connectors accommodate 12 to 18 gauge stranded wire. Tools required (sold separately): Cordless screwdriver Measuring tape Painters tape One inch #2 Phillips tip Stud finder Drop cloth 1/8” Drill bit Spackle Optional - a 24” x 24” piece of R19 insulation Drywall saw Wire stripper Laser plumb bob Cable ties 12” -14” Coat hanger wire Pencil

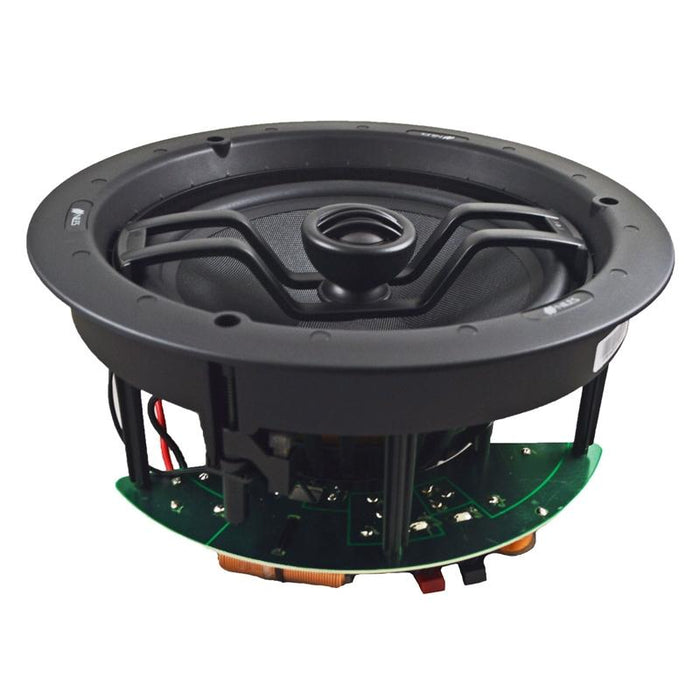

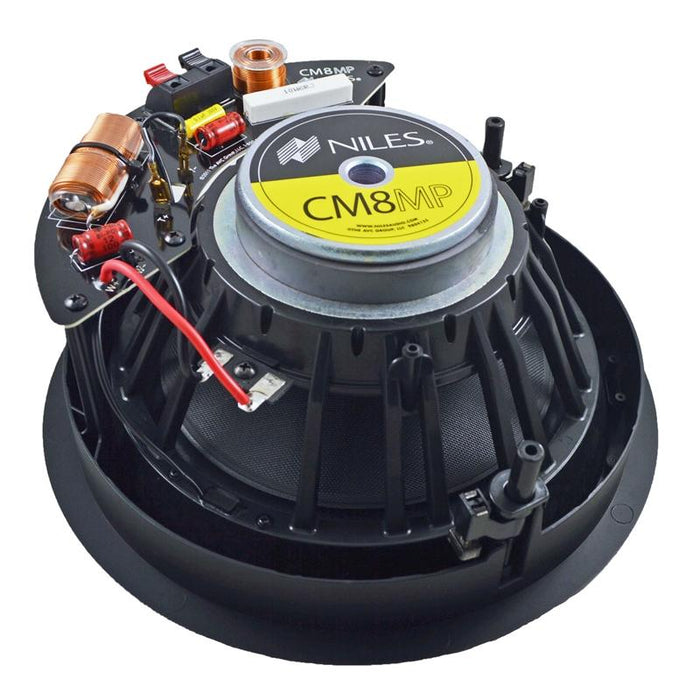

(1) Niles CM8MP Loudspeaker (1) Magnetically attached round grill (1) Hole template with painting standoffs
