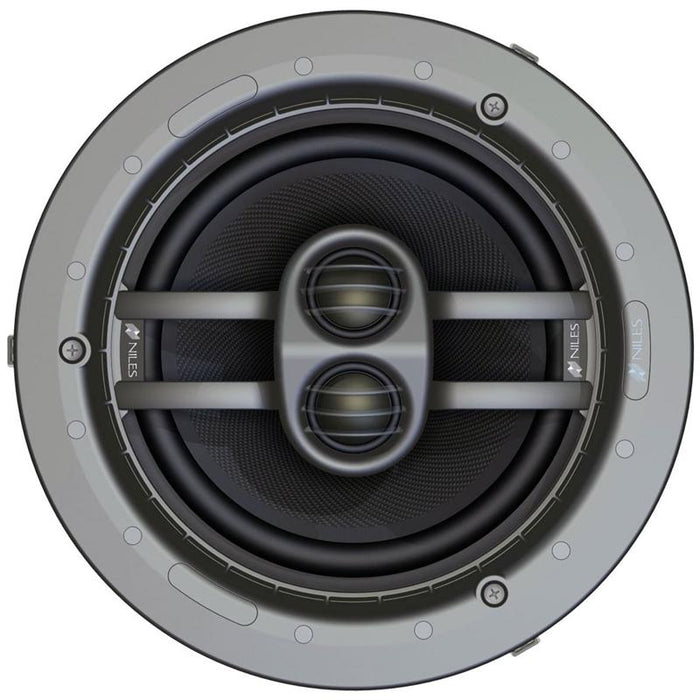

Niles CM7SI 7" 2-Way 130 Watts Single Stereo Input In Ceiling Speaker

SKU NIL-CM7SI

Sorry, this product has been discontinued.

Niles CM7SI 7" 2-Way 130 Watts Single Stereo Input In Ceiling Speaker (1 Pack)

Brand:
Niles
MPN: CM7SI
Condition: New

7" glass fiber woofer cone with a curvilinear profile for smoother sound and less peaking at high frequencies
Glass fiber dual voice coil woofer reproduces left and right channel inputs from a single speaker
High quality Butyl surround increases sensitivity and preserves durability
Dual 1" fluid-cooled UltraSilk tweeters provide wide dispersion for clear and detailed high frequencies
Bridge-mounted stereo imaging (SI) tweeter array directs the high-frequency sounds from both the left and right channels at opposing angles to preserve stereo separation
Magnetically attached, rust-resistant grille covers install quickly and provide a low profile look
Weather resistant construction reduces installation limitations and provides unique solutions in showers or outdoors under eaves
Integrated baffle/frame assembly increases the cone area for deeper bass than competitive speakers of the same diameter
Patent-pending spring tensioned mounting clamps permit quick installation and compensate for uneven mounting surfaces and varied environmental conditions

Recommended tools for installation (sold separately)
Cordless screwdriver
One inch #2 Phillips tip
1/8" Drill bit
Drywall saw
Laser plumb bob
12" - 14" Coat hanger wire
Measuring tape
Stud finder
Spackle
Wire stripper
Cable ties
Pencil
Painter tape
Drop cloth
Optional - a 24" x 24" piece of R19 insulation

Tweeter/Midrange: Dual 1" Ultra Silk
Recommended Amplifier Power: 10-130 watts
Normal Impedance: 8 ohm nominal; 6 ohm minimum
Frame Dimensions with Grille: 9-7/8" (25.1 cm)
Hole Cut-Out Dimensions: 8-1/2" (21.6 cm)
Depth (5/8" Drywall Ceiling): 3-3/4" (9.5 cm)

One Niles CM loudspeaker
One Magnetically attached round grill
One Hole template with painting standoffs
One Owner's manual
One Warranty card
