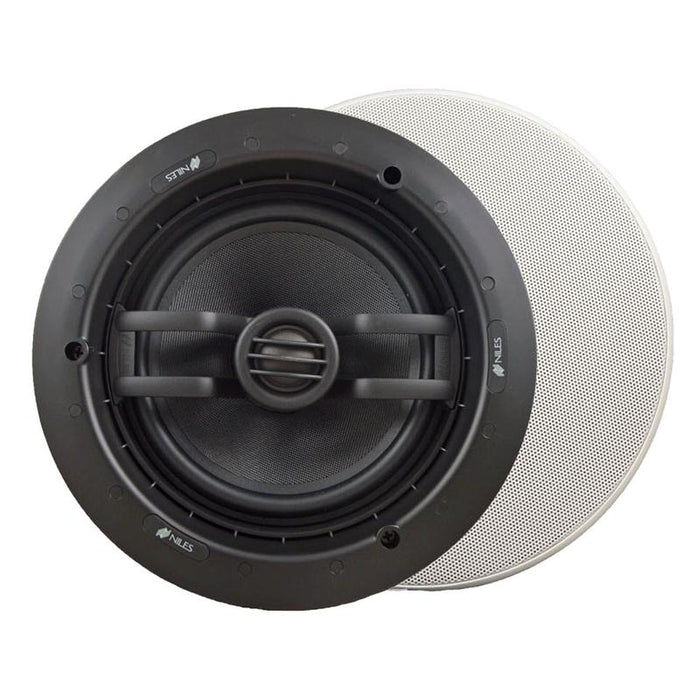

Niles CM7MP 7-in 2-Way In-Ceiling Multi-Purpose Loudspeaker
For Multi-Purpose Applications and non-primary listening areas
For Left/Center/Right Ceiling Mount Loudspeaker
7-inch woofer
Glass fiber woofer cone
1-inch fluid-cooled UltraSilk soft-dome tweeter
Proprietary bridge-mounted tweeter-adjustment mechanism
Magnetically attached, rust-resistant grille
Low profile look
Weather-resistant construction
Caution: Be very careful not to saw through existing wires, pipes or structure. If you feel extra resistance as you are cutting, STOP.
Woofer: 7” Black Glass Fiber Tight Weave woofer cone
Woofer Size: 7 (Inches)
Tweeter/Midrange: 1” Ultra Silk
Frequency Response: 55Hz to 21kHz +/-3dB
Recommended Amplifier Power: 10-130 watts
Normal Impedance: 8 ohm nominal; 6 ohm minimum
Frame Dimensions with Grille: 9-7/8” (25.1 cm)
Hole Cut-Out Dimensions: 8-1/2” (21.6 cm)
Depth: (5/8” Drywall Ceiling): 3-3/4” (9.5 cm)
Tools required (sold separately):
Cordless screwdriver
Measuring tape
Painters tape
One inch #2 Phillips tip
Stud finder
Drop cloth
1/8” Drill bit
Spackle
Optional - a 24” x 24” piece of R19 insulation
Drywall saw
Wire stripper
Laser plumb bob
Cable ties
12” -14” Coat hanger wire
Pencil
(1)Niles CM7MP Loudspeaker
(1)Magnetically attached grill
(1) Hole template with painting standoffs
