Nakamichi NA2300 6.2" Touchscreen Multi-Media Receiver CD/DVD with NC5L backup camera

Nakamichi NA2300 6.2" Touchscreen Multi-Media Receiver CD/DVD with NC5L backup camera
SKU NAK-NA2300-NC5L

Sorry, this product has been discontinued.

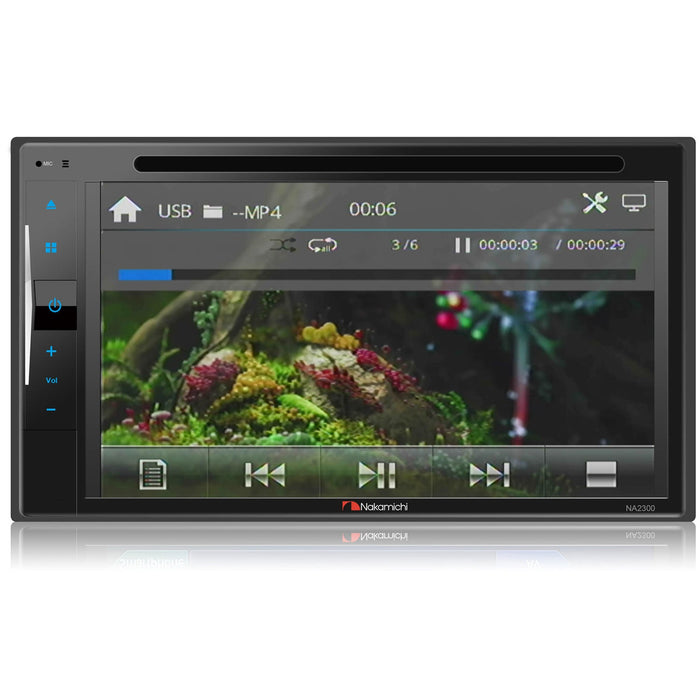

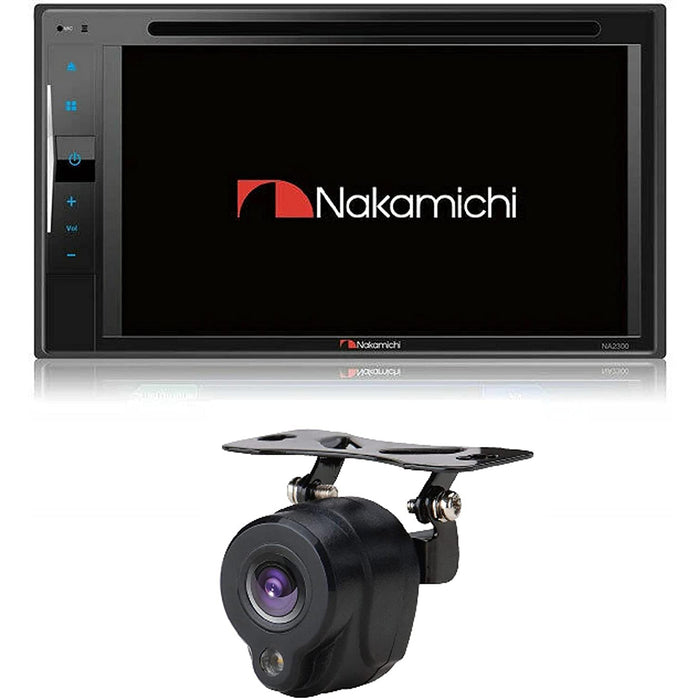

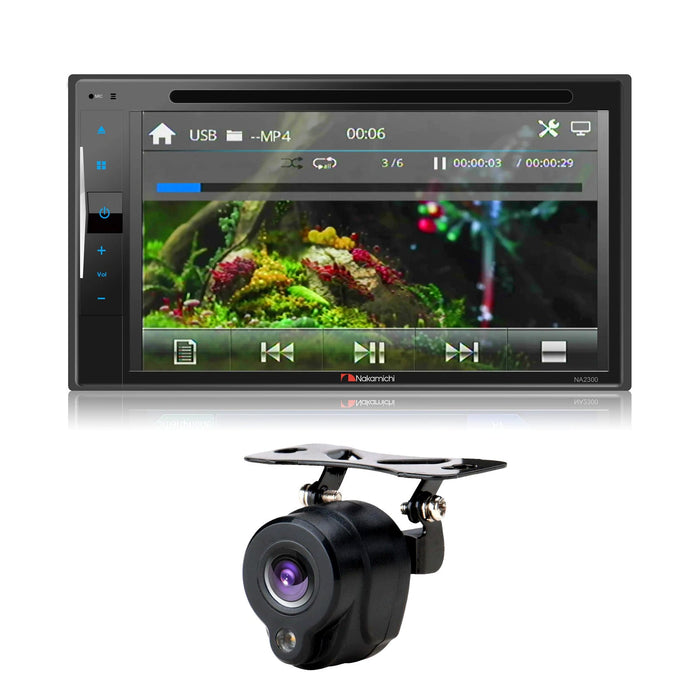

Nakamichi NA2300 6.2" Touchscreen Multi-Media Receiver CD/DVD with NC5L Backup Camera

This is the Nakamichi NA2300 Multimedia. It includes Bluetooth, CD/DVD, front AND rear camera inputs, along with a triple RCA pre-out (front, rear, subwoofer) The capacitive touchscreen makes interacting with this radio smooth, seamless, and fast! It duplicates the feel and use of your iPhone. It is incredible they have equipped it with one, as radios that cost double the price don't come with it.

Features:

  • This is the Nakamichi NA2300 Multimedia. It includes Bluetooth, CD/DVD, front AND rear camera inputs, along with a triple RCA pre-out (front, rear, subwoofer) The capacitive touchscreen makes interacting with this radio smooth, seamless, and fast! It duplicates the feel and use of your iPhone. It is incredible they have equipped it with one, as radios that cost double the price don't come with it.

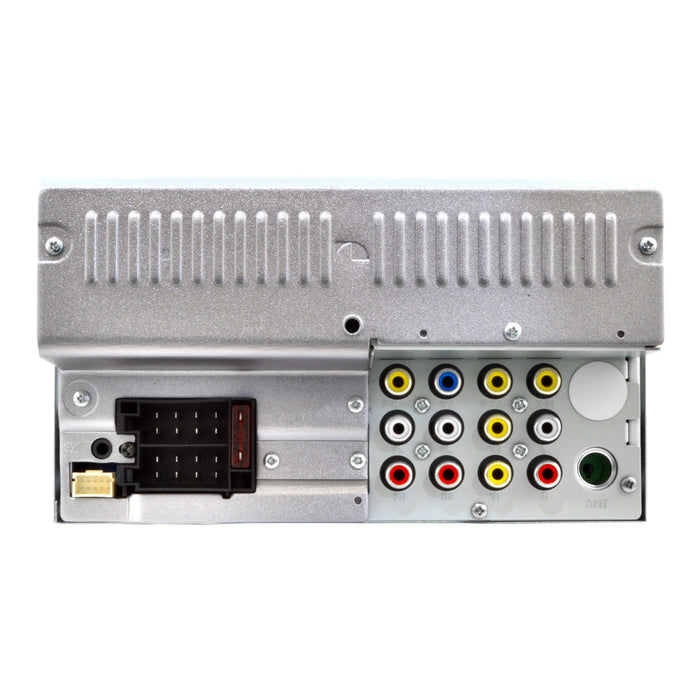

  • With 4 volt triple pre-outs (RCA audio outputs) you can expand your audio system and have full fade control along with independent subwoofer control. This radio also has a built in EQ (equalizer) so you can truly tune your sound just right.
  • Installers out there will LOVE the built in microphone (no external microphone to run), but just in case you need an external mic (for those applications where the radio is too far away etc.), this radio has an external microphone accessory available.

Specifications:

GENERAL

  • Operation Voltage: 14.4V(10.5-16V)
  • Intalltaion Size:178x100x152MM
  • Opearation Temperature: -10C - +70C
  • Storage Temperature: -20C - +80C
  • Net Weight: 1.92KG

Disc Playback Item

  • Disc Format: DVD/VCD/CD/CD-R/CD-RW/DVD+RW
  • Disc Diameter 12CM
  • Frenquency Response: 20HZ - 20KHZ
  • Signal Noise Ratio: >60DB
  • Total Harmoning Distotion: <0.3%
  • Channel Solution:: >50DB
  • Video Signal Formal: NTSC/PAL
  • Video Output: 1+/-0.2VP-P

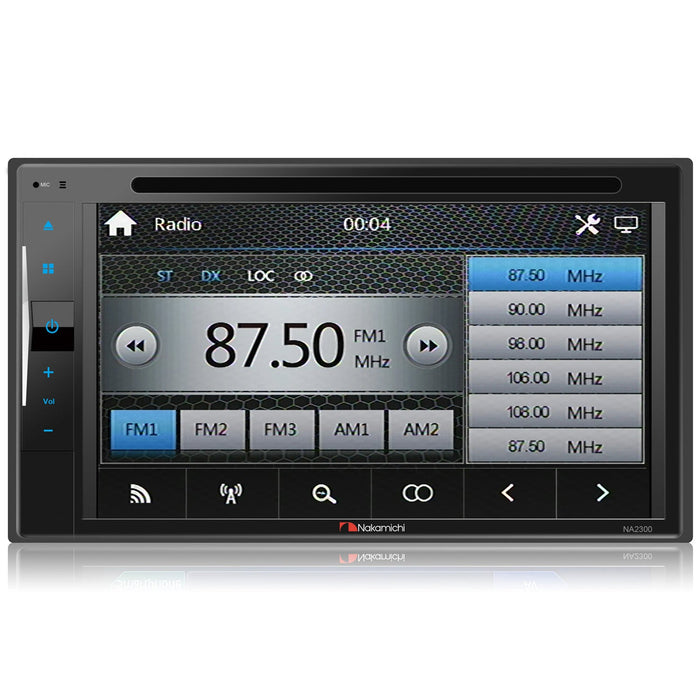

Radio Item

  • FM Frequency Range: 87.5-108.0MHZ
  • AM Frequency Range: 522-1620KHZ

Bluetooth Item

  • Communication System: BT 4.0 version+EDR
  • Output: BT Standard power 2 class
  • Max Communication range: 5m
  • Frequency band: 2.4GHZ
  • Compatible Bluetooth protocol: HFP/HSP/A2DP/AVRCP

TFT Screen Item

  • Size: 6.2 inch
  • Resolution: 800x480 RGB
  • Contrast ration: 500

Video Item

  • External Video Input System: NTSC/PAL/SECAM
  • External Video Input: 1VP-P/75Ω

Audio Item

  • MAx Power: 4X50W
  • Pre-output(V): 2V/10kΩ
  • Pre-output impedance: 600Ω
  • Speaker Impedance 4-8Ω

USB Item

  • Front USB: Read
  • Read USB: Charger (5V/1A)

Support Video Format

  • H264/DIVX/FLV/MKV/MPEG4

Support Video Solution

  • 640x480/1280x720/1920x1080

Support Audio Format

  • MP3/WMA/FLAC

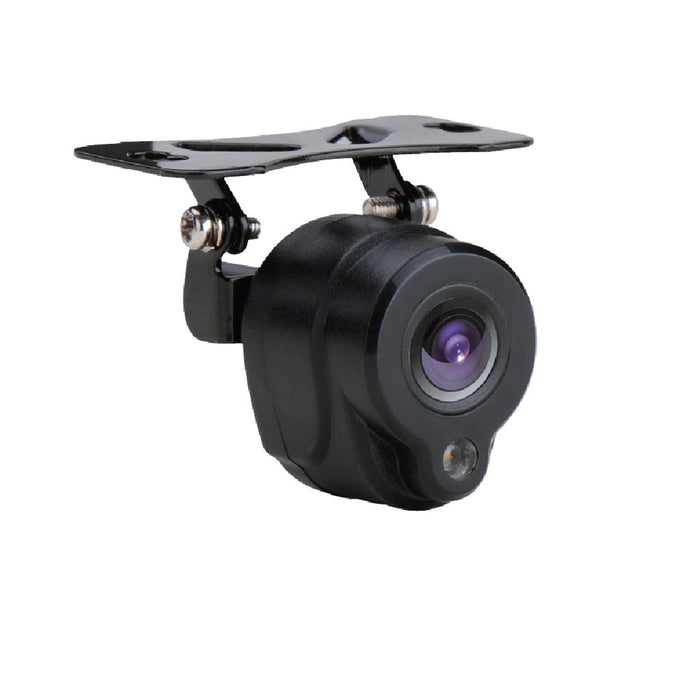

Specification: (NAKAMICHI NC-5L)

  • Image Sensor： Color CMD ( Photosensitive Chip）
  • Lens Angle：90 degrees
  • TV System：NTSC / PAL
  • Effective Pixels：510 (H) x 492 (V)
  • Horizontal Resolution：420TVL
  • Sensing Area：4.08mm ×3.102mm
  • Shutter Speed：1/60-20 µs
  • Video Output：RCA Connector; 1.0Vp-p , 75Ω
  • Power Supply：12V
  • Operating Temperature ：-20℃ ~ +60℃ RH 95% Max
  • Storage Temperature：-20℃ ~ +80℃ RH 95% Max
  • Waterproof： IP68
  • Minimum lllumination：0.1-0.5 Lux/ F = 1.2 ( O Lux With IR On )
